PAGE 9

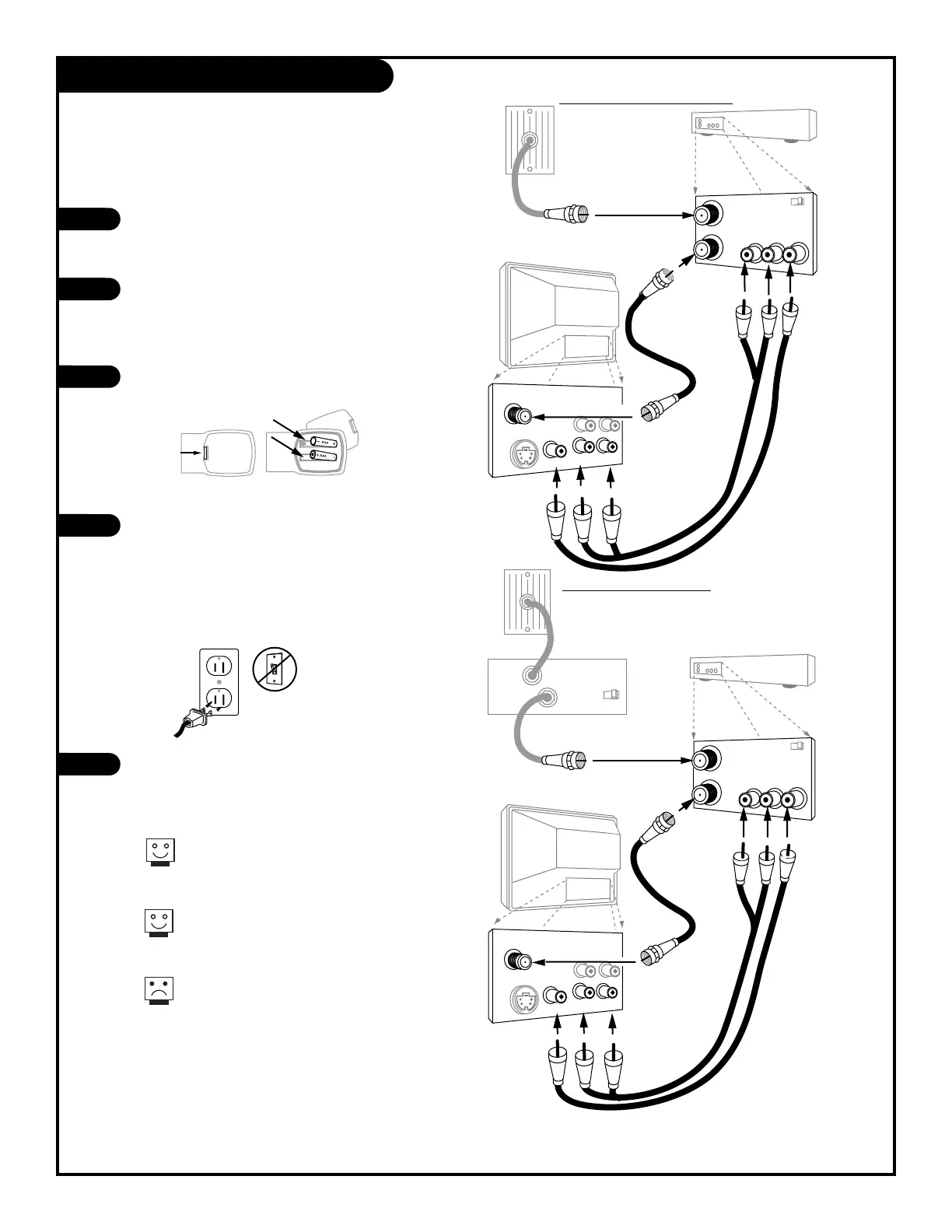

Hook Up Your Cable (CATV) and VCR
Leave your VCR and your television
tuned to channel three and use
the cable box to change channels.
Remember, when screwing in RF
cables onto jacks, clockwise
tightens and counterclockwise
loosens.
Without A/V cables, most VCRs will
not play videocassettes in stereo
sound.
Cable TV
wall jack
Round wire (75ohm)
TV back panel
(expanded view)
TV back
In
Out
VCR back
VCR back AV panel
RF coaxial wire
(75ohm)
not included
with TV
A/V cables
not included
with TV
3 4
output
switch
Antenna
/Cable
Video
RL
R-Audio L/Mono
S-Video
Variable
Audio Out
Audio
Video
Output
R
L
Cable TV
wall jack
Round wire (75ohm)
Cable box
In
Out
In
Out
VCR back
VCR back AV panel
TV back panel
(expanded view)
TV back
RF coaxial wire
(75ohm)
not included
with TV
3 4
output
switch
A/V cables
not included
with TV
Antenna
/Cable
Video
RL
R-Audio L/Mono
S-Video
Variable
Audio Out
Audio
Video
Output
R
L
3 4
output
switch
Locate the Antenna/Cable jack on
the back of your Entertainment
Machine.
Connect the cable that runs from
the wall directly to this jack,
according to the diagram to the
right.
Remove the back of the remote
and put in two AAA batteries.
Plug in your TV. Do not plug it
into a switched outlet. Your
Entertainment Machine is
designed to operate on household
current, 120-volt 60 Hertz AC do
not attempt to operate it on DC
Current.
Go to page 12 to Auto Program
your Entertainment Machine.
1
2
3
4
5
Connect cable service and a VCR to your
Entertainment Machine.
back of
remote
VCR Without Cable Box
VCR With Cable Box
