PAGE 7
206-04006
Mini glossary
JACK A connection on the back of a TV, VCR, or any other A/V device. This includes the RF jack and the Audio/Video jacks that are color-
coded.
SIGNAL Picture and sound traveling through cable, or over the air, to your television screen.

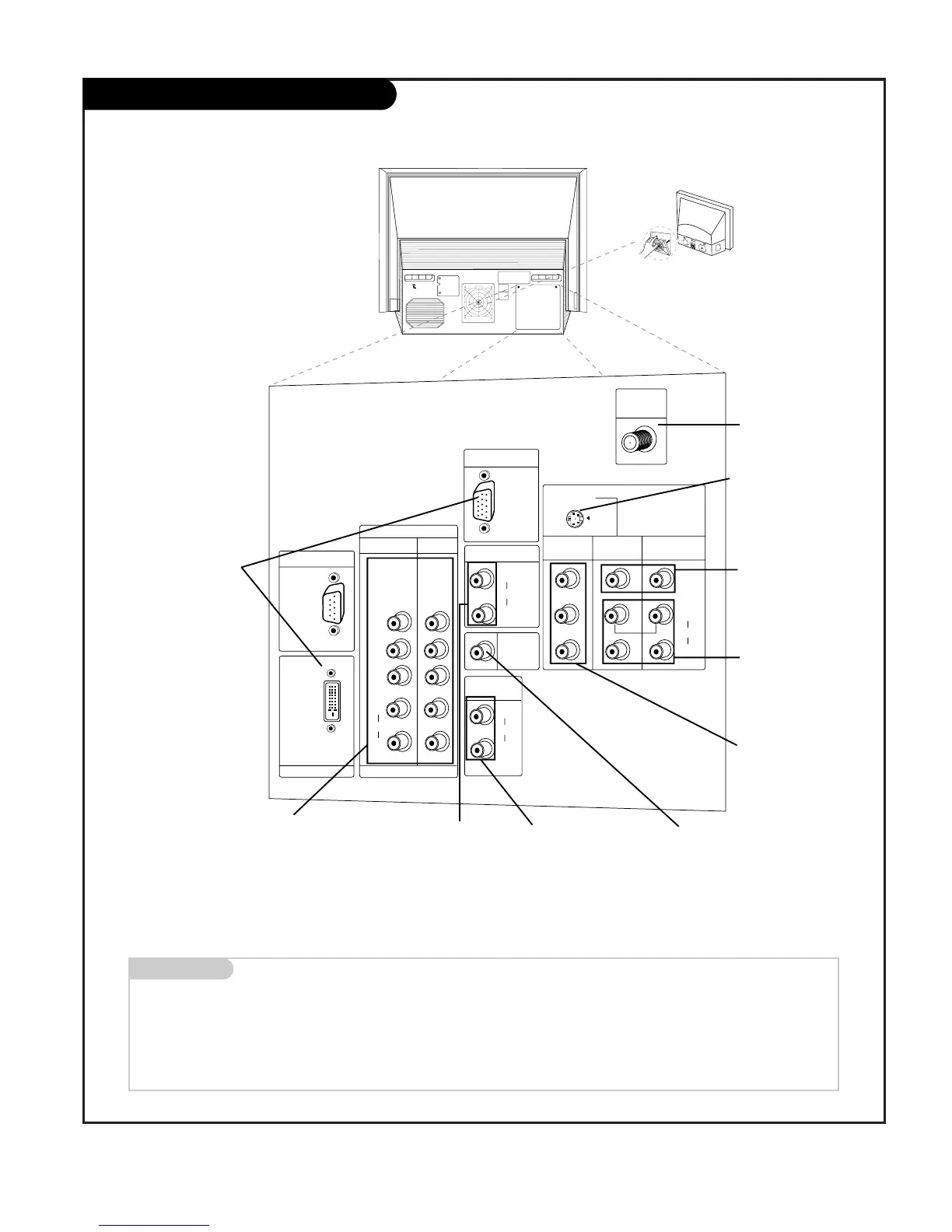

Rear Connections Panel
S-VIDEO In
A connection available with
some high-end equipment
that provides even better
picture quality for Video 2.
Variable Audio Out
Used to connect either
an external amplifier, or
add a sub-woofer to your
surround sound system.
RF Connector: Antenna
Used to connect analog
cable or antenna signals to
the television, either
directly or through your
cable box.
Video 1 or 2
Connects the video sig-
nals from various types of
equipment.
Component Input 1-2
Connect a component video/audio device
to these jacks. Refer to your DVD manual
for further information.
Connecting cables and external equipment to your TV.
Monitor Out
Connects to a second TV or
Monitor.
Left/Right Audio
Used for stereo sound
from various types of
equipment.
RGB/DVI Input
Connect the TV output con-
nector from a PC/DTV to the
appropriate input port.
RGB/DVI Input
Used for audio connections
from a PC source or HD-STB
Satellite system.
Audio Center Mode In
Connect to external Dolby
Digital Center “preamp out-
put.”
Fan Cover
Replace or clean the filter to
prevent a dust every 1~3
months. When cleaning or
replacing the filter, certainly
turn the power off.
The dust filter must be
washed in tepid water with
netural detergent.
To Next Page
