Page 10 of 20 804050NZ- CS Commercial HydroTap - Installation Instructions - 09.2016 v3.01
2.1 Ventilation for All Models
Proper air circulation must be provided for all Chilled Sparkling models. The system will operate correctly only
if the recommended air gaps are achieved during Installation. It is recommended to install vent duct and louvre
panels for under floor and /or door vent systems.
**Note: Inlet and outlet vents should be separated by a Min 100mm, to avoid hot air recirculation.
When installing air flow ducts, the following tools will be required:
•
Jigsaw and 12mm drill
•
Keyhole or Wall Board saw.
Section 2
Ventilation

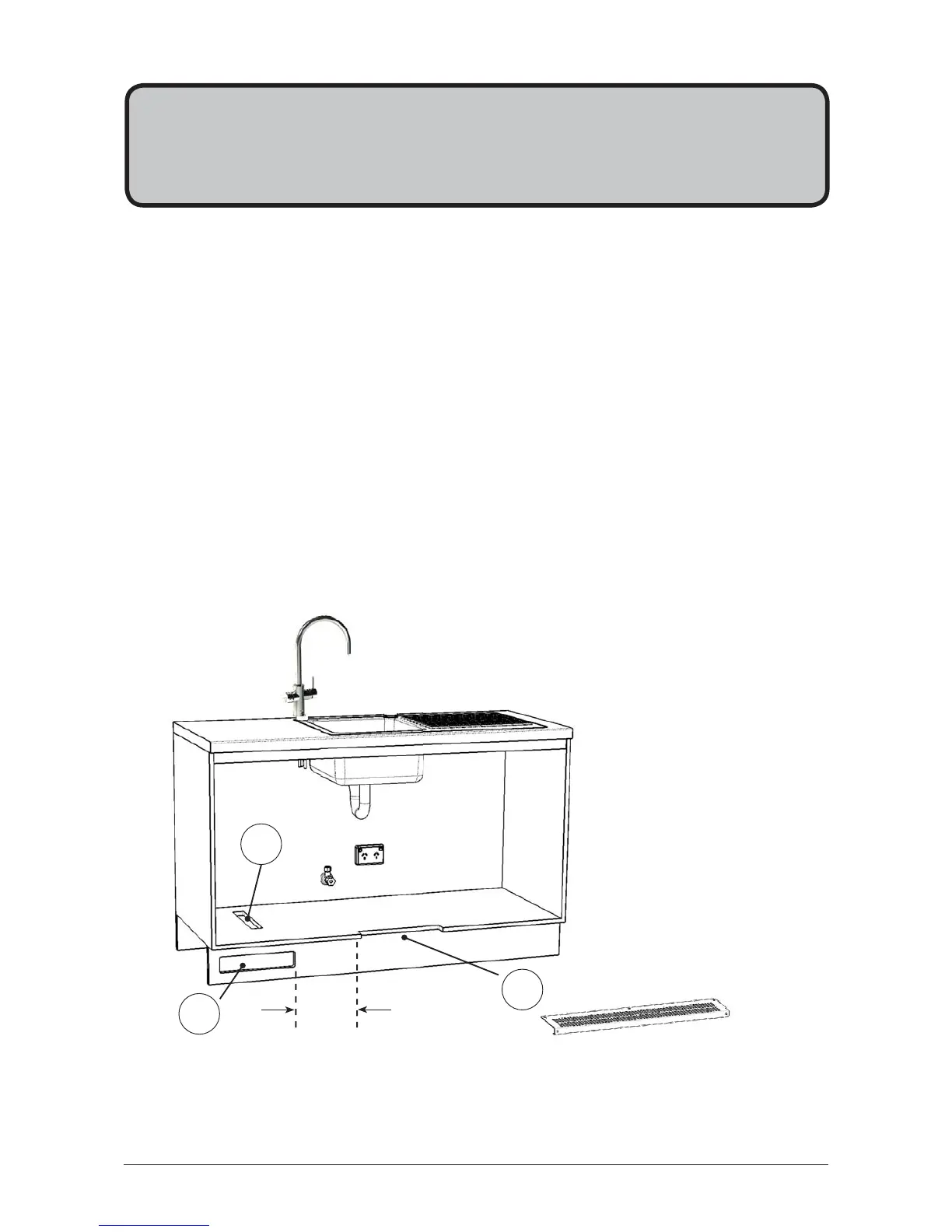

Typical Cut out arrangement
for Chilled Sparkling models
with kickboard venting via a
left hand appliance duct
A
B
C
2.2 Standard ventilation for Chilled Sparkling models. (CS & CSHA)
Air inlet vent
**MIN.
100mm
