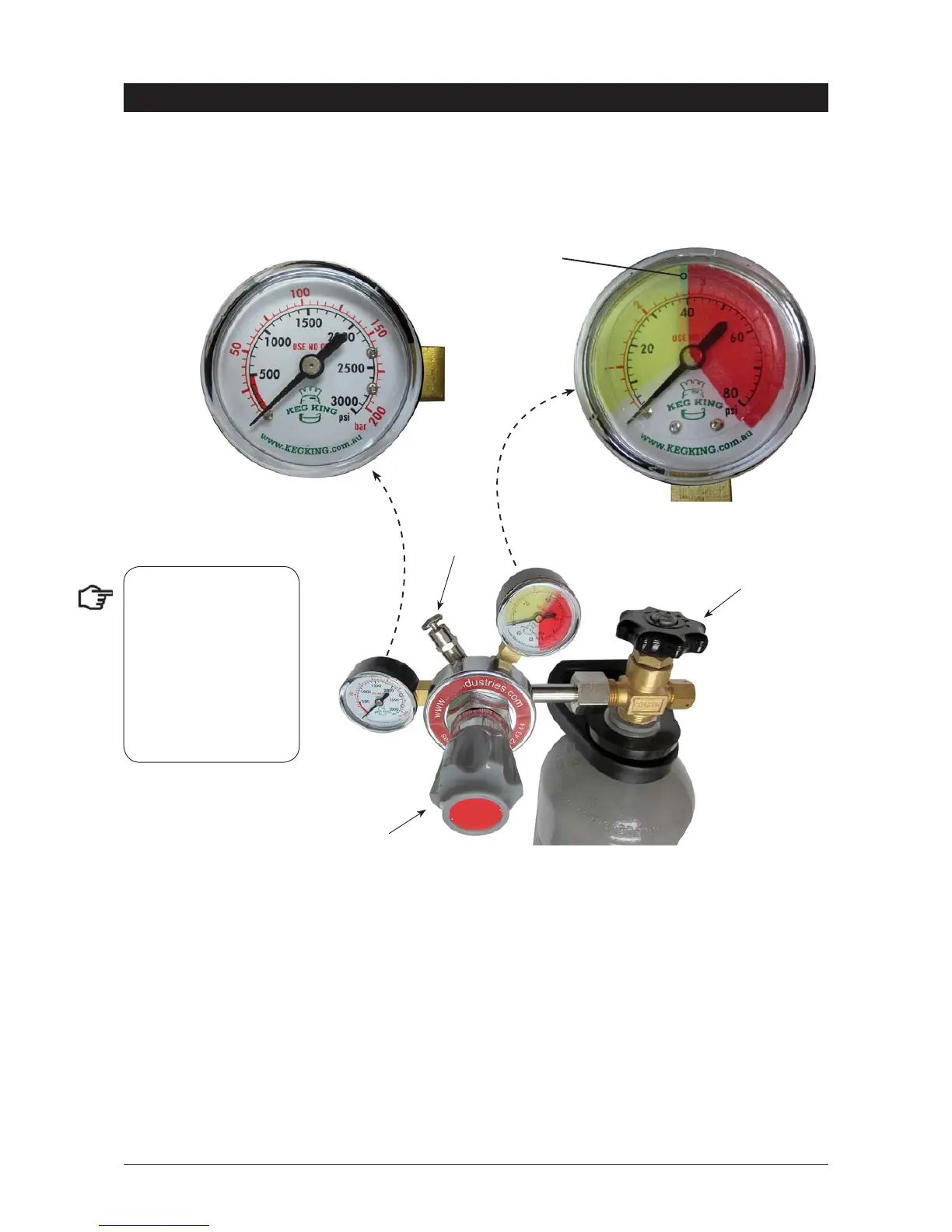

Regulator
This gauge shows the pressure in the bottle
and indicates when the bottle is empty. Initial
bottle pressure will be 35-40 bar.
This gauge shows the adjustable limit (2.7- 3.0 bar)
required for the HydroTap to function correctly
Pressure regulating knob
ON - OFF knob
Green zone
Relief
valve
NOTE:
Be careful not to lose the
small sealing olive in the
end of the braided hose.
This olive is necessary to
ensure a gas tight seal
between the braided hose
and the regulator.
