Zenith HydroTap - CS 175 Model Installation Diagram

Page 16 of 20 804050NZ- CS Commercial HydroTap - Installation Instructions - 09.2016 v3.01
Installation Instructions

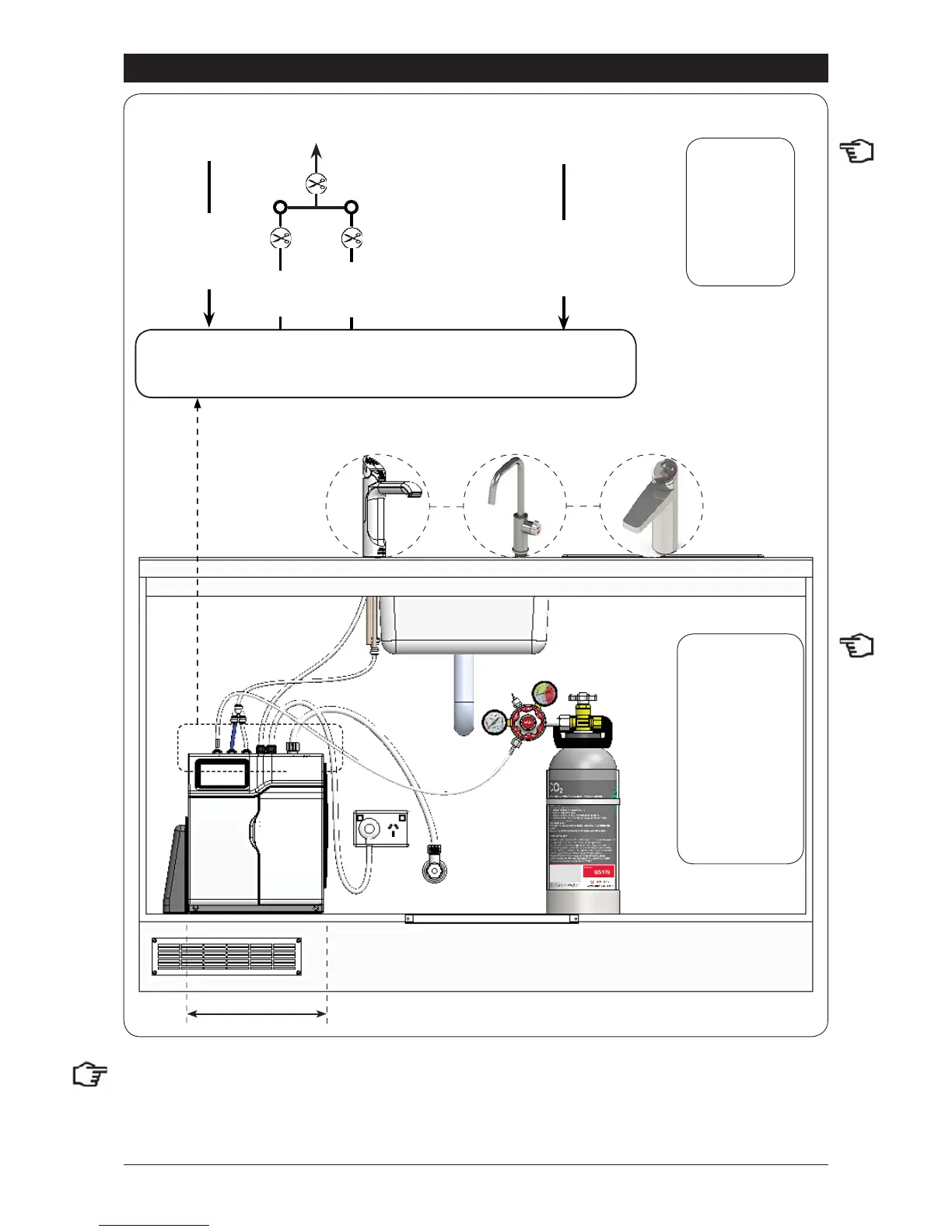

4.5 Chilled Sparkling Model - CS 175
POWER
CORD
USBCHILLED
OUTLET
MAINS
IN
SPARKLING
OUTLET
CO2
IN
BLUE
WHITE
GAS IN
BRAIDED
Note: The tube lengths are matched to the pumps performance and therefore CANNOT be lengthened.
Take time to consider hose lengths when determining the mounting positions for the options
Note:
- Mains hose
length is 750mm
- Plug and Cord
length is 1800mm
Position the under
sink unit close
to the outlet tap,
within reach of
the hose and cord
lengths supplied
Note:
Note:
All
All
silicon tubes
silicon tubes
must be cut to
must be cut to
size. They must
size. They must
have a constant
have a constant
fall back to the
fall back to the
unit.
unit.
336 mm
C
