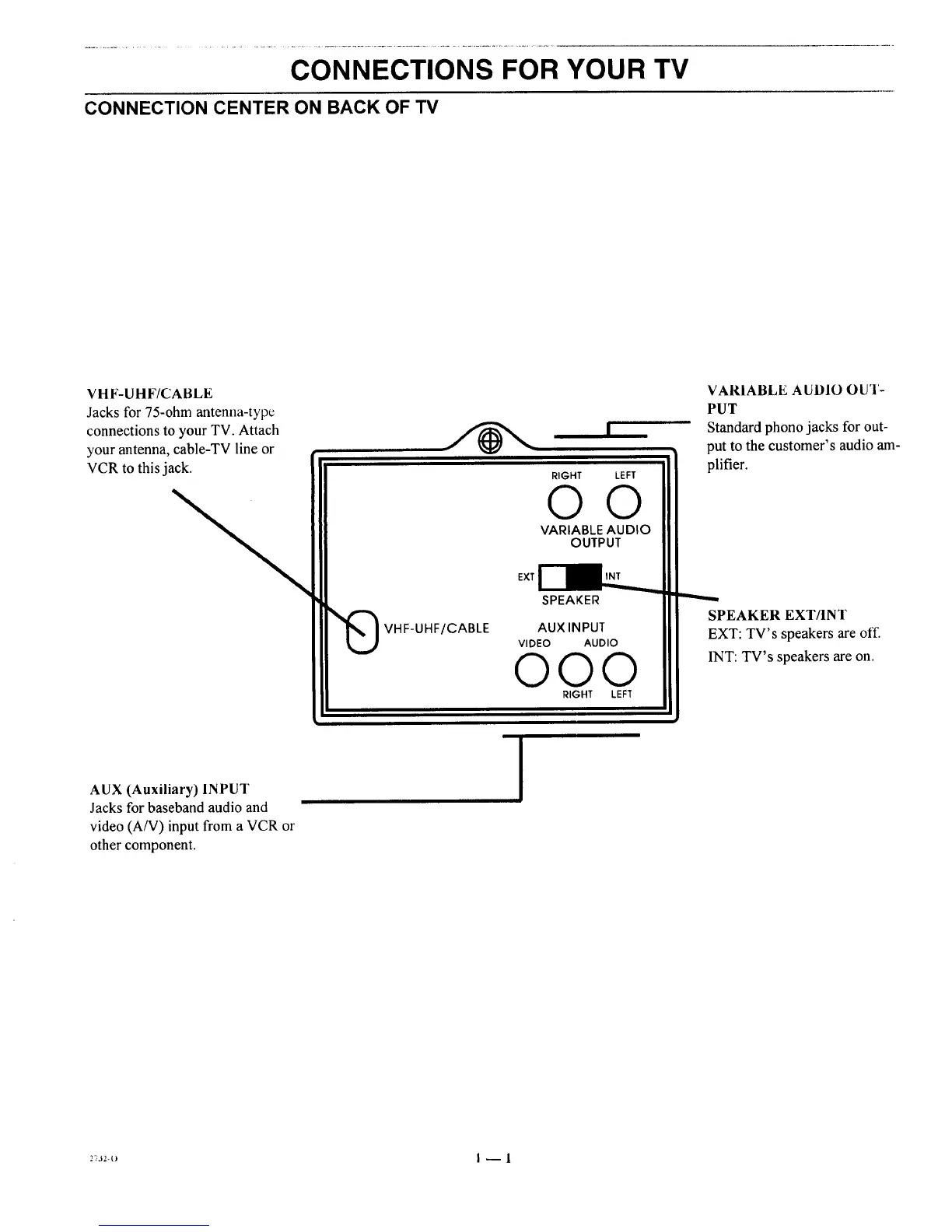

CONNECTIONS FOR YOUR TV
CONNECTION CENTER ON BACK OF TV
VHF-UHF/CABLE
Jacks for 75-ohm antenna-type
connections to your TV. Attach
your antenna, cable-TV line or
VCR to this jack.
_..........L._
RIGHT LEFT
OO
VARIABLE AUDIO
OUTPUT
EXT
SPEAKER
VHF-UHF/CABLE AUX INPUT
VIDEO AUDIO
000
RIGHT LEFT
VARIABLE AUDIO OU'I'-
PUT
Standard phono jacks for out-
put to the customer's audio am-
plifier.
SPEAKER EXT/INT
EXT: TV's speakers are off.
INT: TV's speakers are on.
AUX (Auxiliary) INPUT
Jacks for baseband audio and
video (A/V) input from a VCR or
other component.
:.'J2-u I -- 1
