General Maintenance
6.35
Low Power B+ Fuse (ZF7.2)

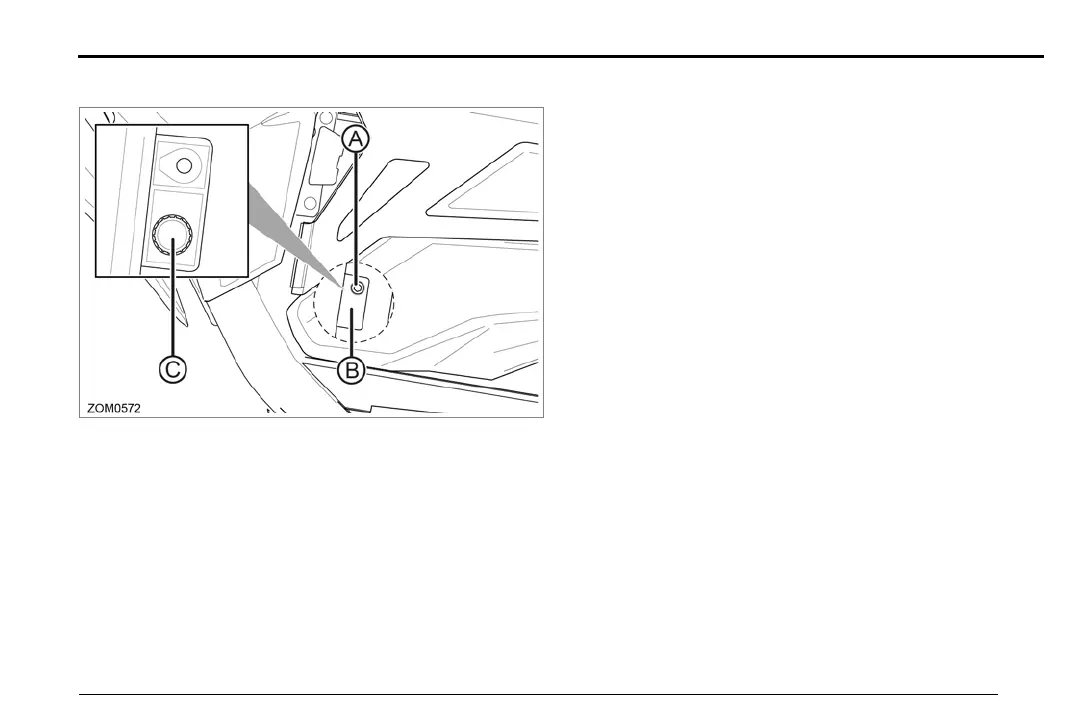

To access the fuse:
1. Remove bolt (A) securing the fuse cover.
2. Remove cover (B) to gain access to the fuse.
3. Unscrew the fuse cap (C) and withdraw the fuse from
the battery.
4. Pull fuse from fuse cap and replace fuse with one of
equivalent rating (SPT3.15A)
5. Install fuse and cap.
6. Install cover (B) and secure with bolt (A). Torque - 1 lb·ft
(1.3 Nm).
Zero Owner's Manual (FX and FXS).book Page 35 Monday, September 11, 2017 10:13 AM
