General Maintenance
6.34

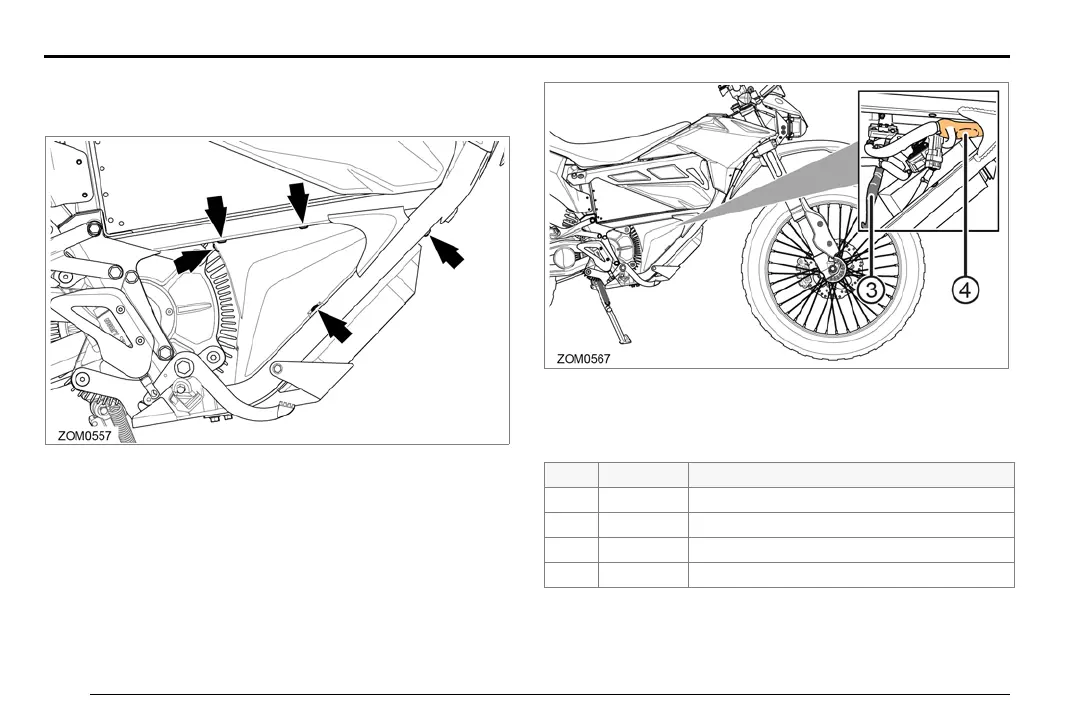

To access the high voltage fuses (right side):
1. Ensure that the key switch is in the OFF position.
2. Remove the 5 fasteners securing the flexible protective
cover to the motorcycle.
3. Remove the flexible protective cover to gain access to
the fuse.
4. Pull back sheathing to access fuse.
5. Replace the fuse.
The high voltage fuse values are listed below:
Note: If the charge fuse (3) needs replacement, contact
your Zero Motorcycles dealer.
FUSE RATING CIRCUITS CONTROLLED
1 ABC4A Main Bike Board/Controller
2 ABC4A DC/DC Converter
3 JLLN100 ACCY Charge Fuse (in-line)
4 ABC10A Charge Fuse (on-board)
