General Maintenance
6.33

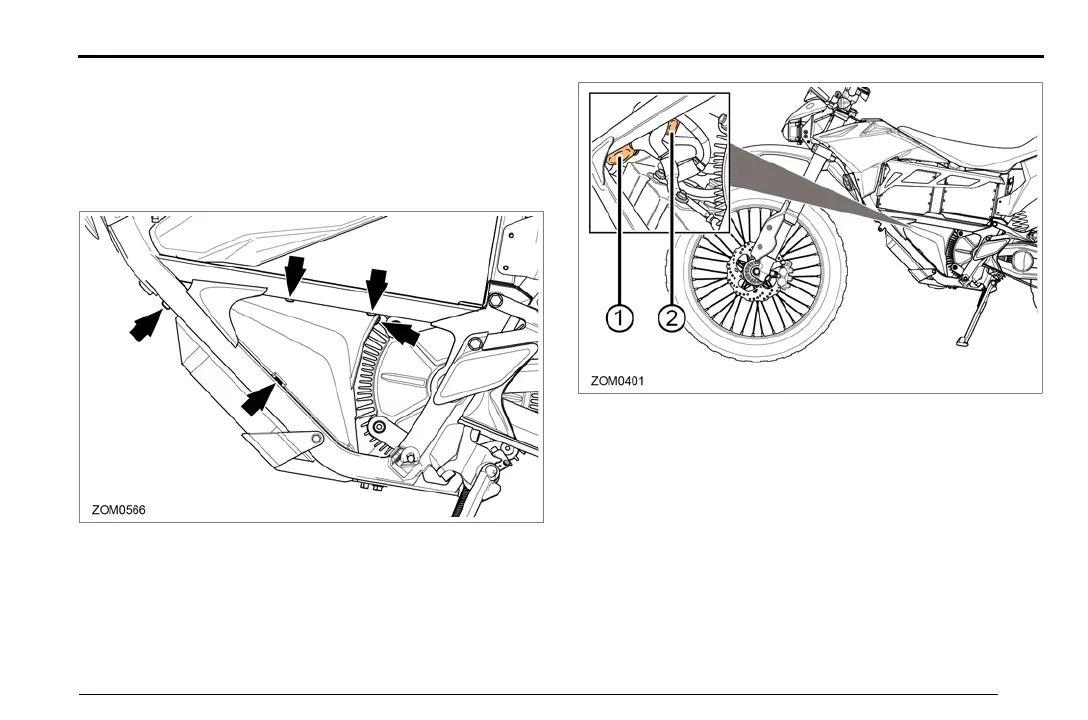

High Voltage Fuse Locations
The high voltage fuses are located behind the side
inspection panels.
To access the high voltage fuses (left side):
1. Ensure that the key switch is in the OFF position.
2. Remove the 5 fasteners (see arrows) securing the
flexible protective cover to the motorcycle.
3. Remove the flexible protective cover to gain access to
the fuses.
4. Pull back sheathing to access fuse holders (if
necessary).
5. Unscrew the fuse’s cap (1 and 2).
6. Replace the fuse.
Zero Owner's Manual (FX and FXS).book Page 33 Monday, September 11, 2017 10:13 AM
