Zip VARIPOINT II Series User Manual

12
INSTALLATION INSTRUCTIONS & USER MANUAL
210006 V2.00 SEPT 2017 - ZIP VPII/103-153(UB)
TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
HOT COLD
EXPANSION
RELIEF VALVE
SERVICE VALVE
TO DRAIN
VIA TUNDISH
COLD WATER
SUPPLY
NEAREST
COLD WATER
DRAW OFF
DIAGRAM 1.
Inlet pressure less than 0.35 MPa (3.5 bar)
and expanded hot water can be accommodated
in the pipework.
EXPANSION
RELIEF VALVE
EXPANSION VESSEL
SERVICE VALVE
CHECK VALVE
DIAGRAM 2.
Inlet pressure less than 0.35 MPa (3.5 bar)
and expanded hot water cannot be accommodated
in the pipework. (using pack AQ2 expansion vessel
and check valve).
COLD WATER
SUPPLY
TO DRAIN
VIA TUNDISH
NEAREST
COLD WATER
DRAW OFF
HOT COLD
EXPANSION
RELIEF VALVE
EXPANSION VESSEL
SERVICE VALVE
CHECK VALVE
PRESSURE REDUCING
VALVE
DIAGRAM 3.
Inlet pressure greater than 0.35 MPa (3.5 bar).
(Using pack AQ2 and AQ3 expansion vessel, check
valve and pressure reducing valve).
COLD WATER
SUPPLY
TO DRAIN
VIA TUNDISH
Length ‘A’
COLD WATER
DRAW OFF
Minimum length of pipe (Length ‘A’ ).
10 Litres 2.7m (9ft) 1.2m (4ft)
15 Litres 4.2m (14ft) 1.8m (6ft)
SIZE 15mm Pipe 22mm Pipe
PRESSURE & TEMPERATURE
VALVE TO BE DRAINED VIA TUNDISH
(optional, not supplied).
PRESSURE & TEMPERATURE
VALVE TO BE DRAINED VIA TUNDISH
(optional, not supplied).
PRESSURE & TEMPERATURE
VALVE TO BE DRAINED VIA TUNDISH
(optional, not supplied).
DRAIN VALVE
DRAIN VALVE
DRAIN VALVE
DRAIN VALVE
HOT COLD
DRAIN VALVE
DRAIN VALVE
ZIP Varipoint II
ZIP Varipoint II
ZIP Varipoint II
Fig.2
(Underbasin model shown)

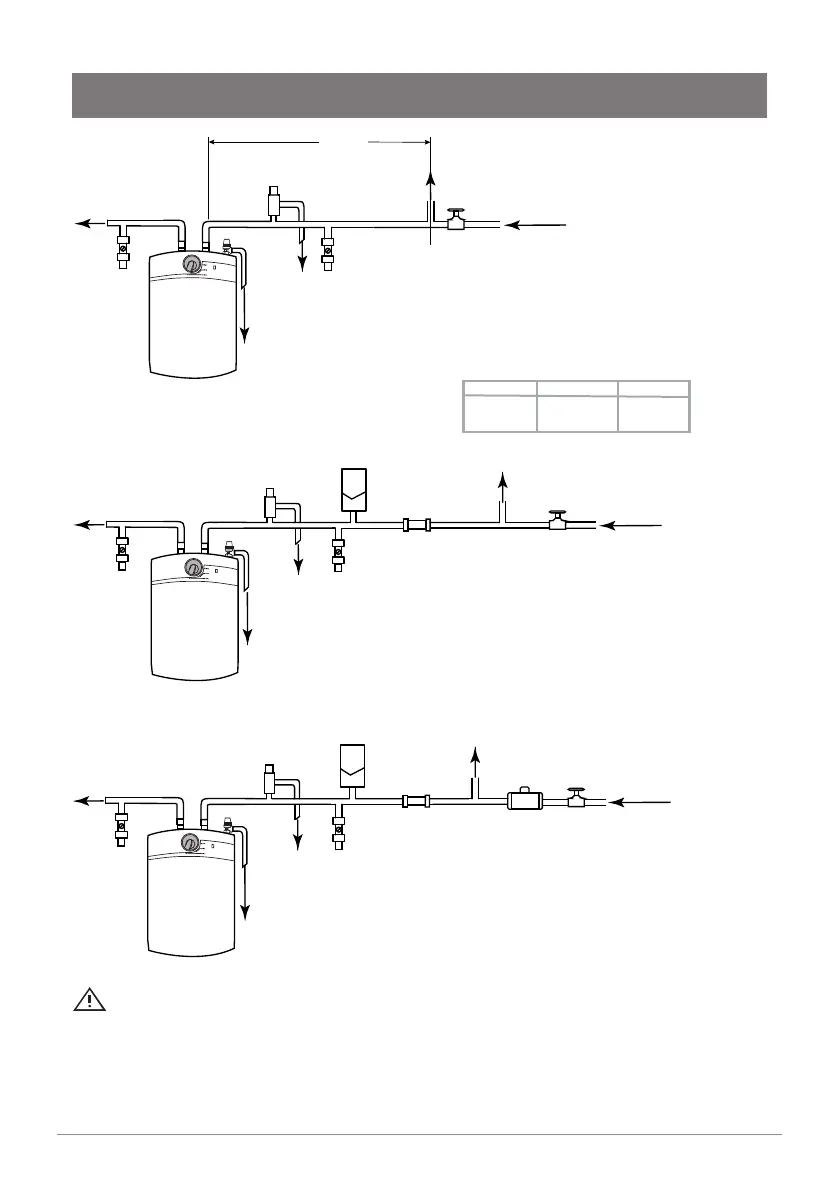

PLUMBING INSTALLATION DIAGRAM
Zip recommend expansion vessels to be installed in line with the current HSE
guidelines. Expansion vessels should be installed, in cool areas on cold flowing pipes,
mounted as close to the incoming water supply to the water heater as possible, mounted
vertically on pipework to minimise any trapping of debris and to minimise the volume retained
within them, with an isolation and drain valve to aid flushing and sampling and designed to
stimulate flow within the vessel.
