Zip VARIPOINT II Series User Manual

13
INSTALLATION INSTRUCTIONS & USER MANUAL
210006 V2.00 SEPT 2017 - ZIP VPII/103-153(UB)
TECHNICAL SUPPORT TEL: 0345 6 005 005 EMAIL: SERVICE@ZIPINDUSTRIES .CO.UK
WWW.ZIPWATER.CO.UK
It is recommended that the electrical installation is carried out by a qualified
electrician.
It is essential that the electrical installation including earthing and cross bonding should be
carried out to comply with the current IEE regulations and Local Authority requirements.
Switch off the mains electrical supply before carrying out any work involving a
live circuit 230V AC supply only, this appliance must be earthed.
The Zip Varipoint II is pre-wired with a length of 3 core cable suitable for connection to a
mains 230V AC supply. The cable is to be wired to a double pole fused spur, with a minimum
break rating of 13 amps.
If the cable length is insufficient it is recommended that the entire length of cable is replaced
with no joins to the original. To replace the cable:
• Prise the temperature control knob off the spindle and release the screw underneath.
• Remove the cover by sliding the it forwards, then remove.
• Disconnect the cable from the connector block and remove it.
• Pass the new cable back through the entry port and locking maze, then connect the
cable to the connector block.
• Slide the cover back on and screw into position ensuring the cable is clamped correctly.
• Replace the control knob.
• All internal connections are factory wired and should not be altered or modified.
• All internal wiring is factory mounted and should not be altered or modified.
This appliance must be earthed.
Do not switch on the electrical supply until the water heater is full of water.
Safety cut-out
In the event of a malfunction that leads to an over temperature situation, a Safety cut-out will
automatically cut off the electrical supply to the element.
This is a manually resettable cut-out that may be reset by a qualified electrician once the fault
has been corrected.

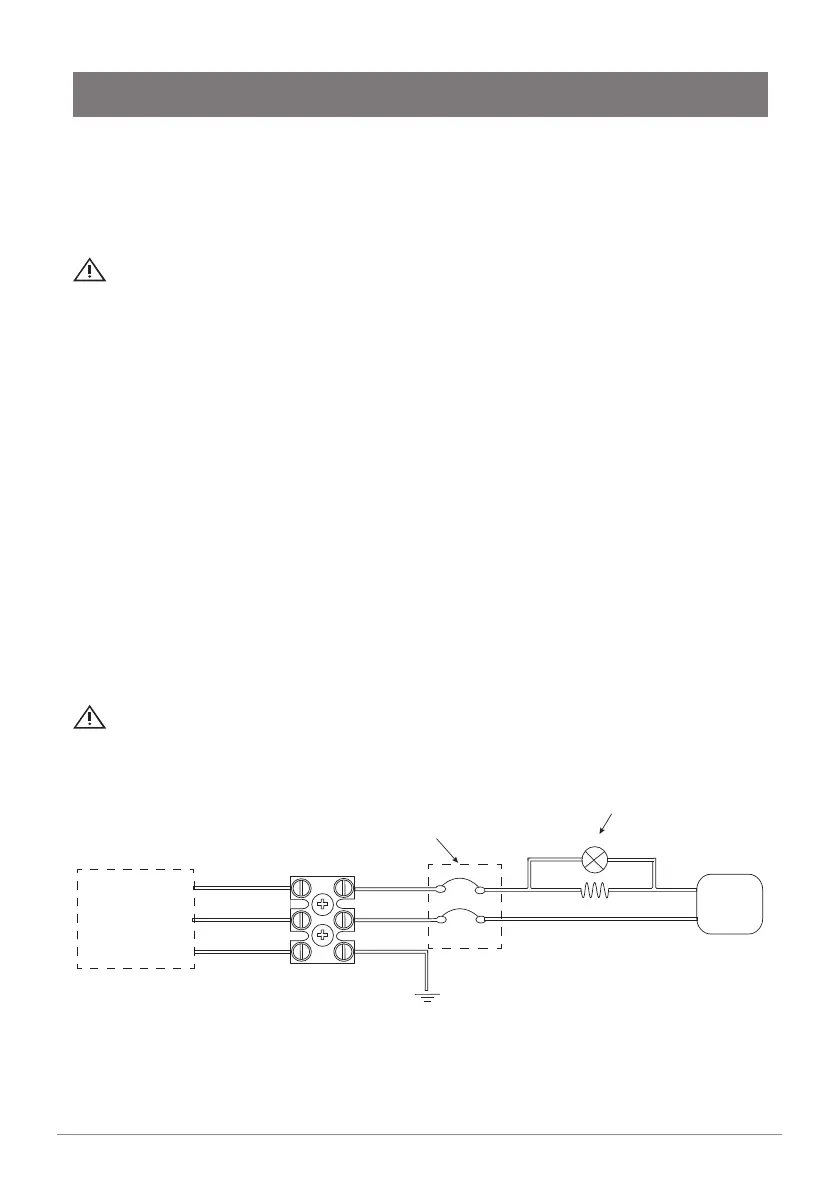

Wiring Diagram
ELECTRICAL INSTALLATION
BROWN
BLUE
GREEN/YELLOW
LIVE
NEUTRAL
THERMOSTAT
NEON
INDICATOR BULB
EARTH
Supply through a
Fused doublepole
switch or fused
spur.
OVER TEMPERATURE
SAFETY CUT-OUT
