5.1.6 Breaker Monitoring Settings
Breaker Monitoring
Setting Range
Excessive Number of Trips 1 - 40

I2 Alarm Level
0 - 99.999,99kA
2

I2 Cumulative Present Value (setting and information)
0 - 99.999,99kA
2
Trip Coil Circuit Supervision Enable YES / NO *
Close Coil Circuit Supervision Enable YES / NO *
(*) Depending on the chosen setting (YES/NO), the position of the internal jumpers on the input/output circuit
board should be modified (see following figure).

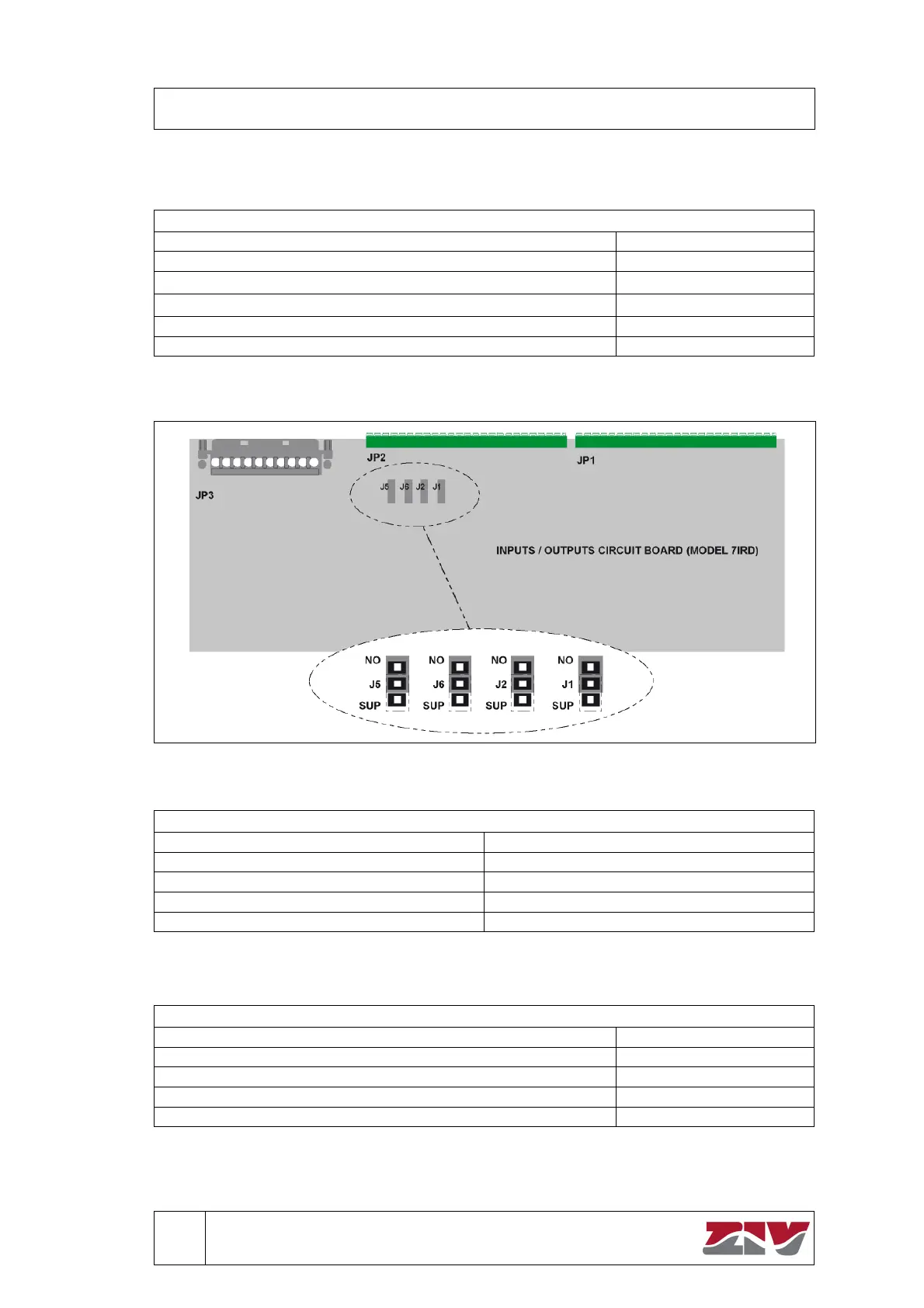

Figure 5.1 7IRD Model Internal Jumpers.
Contact / Jumpers Correspondence
Inputs Model 7IRD
IN5 J1
IN6 J2
IN7 J6
IN8 J5
5.1.7 Metering History Log
Metering History Log
Setting Range
Average Calculation Time Interval 1 - 15 min
Data Record Interval 1 min. - 24.00 h.
Day Calendar Mask Sunday to Saturday (YES/NO)
Hour Range 0 - 24.00h.
