Chapter 2 The Installation of the Device
2.1 Installation notes
2.1.1 It is recommended that the full height turnstile should be installed on a cement platform with
50mm to 100mm in height.
2.1.2 It is recommended that the full height turnstile should not be used in corrosive environments.
2.1.3 Make sure the earth wire of the system is connected reliably reliably to prevent any personal
injuries or other accidents.
2.1.4 After completion of the installation, check the connection condition of earth wire, connector
assembly for connecting line and all moving parts with the device. Make sure the connection is
firm in order to prevent failure caused by long time operation. If any screw or part is not tightened,
please tighten.
2.2 Installation position of the full height turnstile

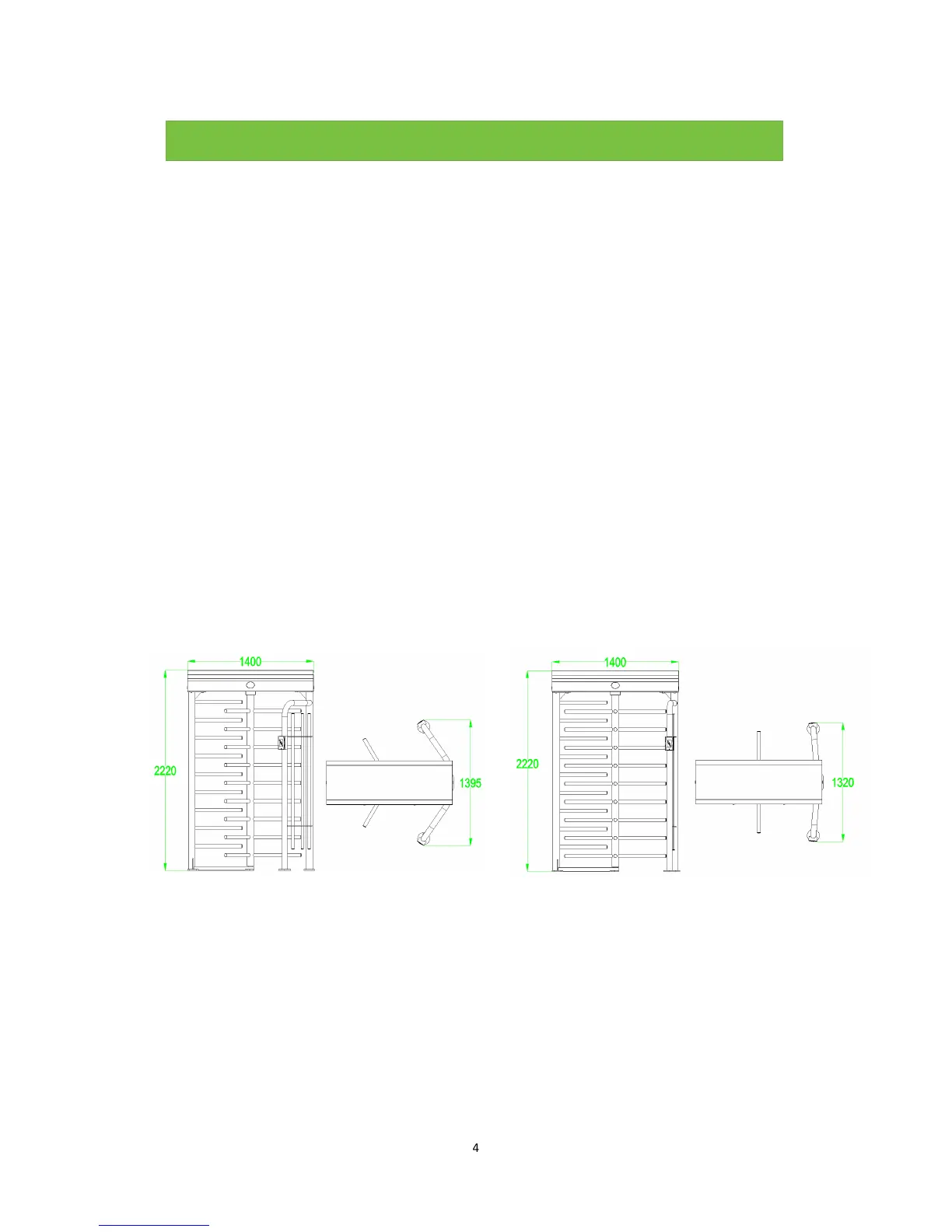

The installation position are subject to the size of the full height turnstile, as shown in Figure 2-2A.
Figure2-2A
2.3 Installation and fixation of cables
The following diagram shows the interface of the concealed cable. The input voltage for this full
height turnstile is AC100-120V/200-240V. The PVC conduits are buried 100mm below the ground,
with the height of the exposed part not not less than 100mm. To prevent water leakage to the
