ZKTeco LF10 - Standalone Installation; Door Sensor, Exit Button, Alarm & Bell Connection

3
TCP/IP
Alarm Smoke
detector
Lock
Exit button
Door sensor
Reader
PC

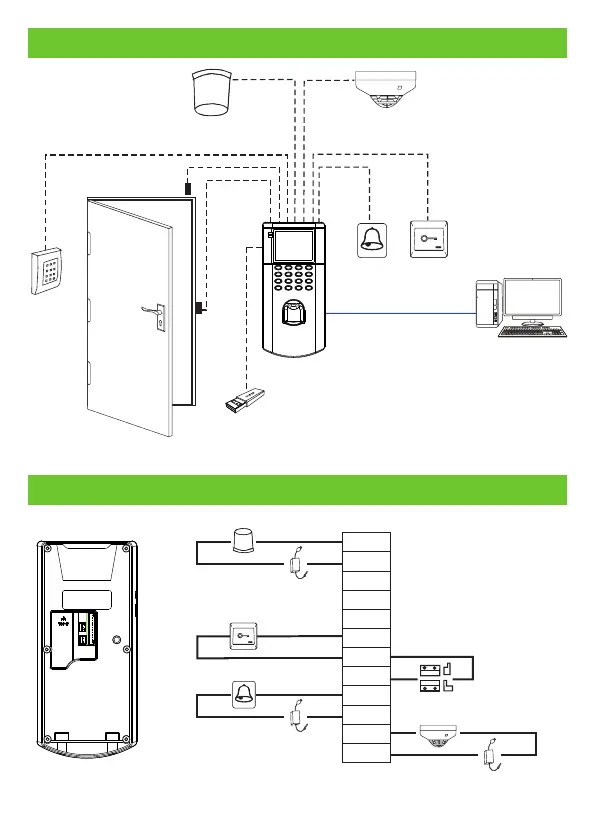

Standalone Installation
Door Sensor, Exit Button, Alarm & Bell Connection
Bell
-
+
-
+
-
+
-
+
AUX
AL-
AL+
NC
COM
NO
BUT
GND
SEN
GND
BELL+
BELL-
-
+
-
+
Detector power
Smokedetector
Door sensor
Alarm
Alarm power
Exitbutton
Bell
Bell power
USB-disk
