Ethernet Connection
Click on [COMM.] > [Ethernet] > [IP Address] , input the IP address and click on [OK].
IP address: 192.168.1.130
Subnet mask: 255.255.255.0
Default IP address: 192.168.1.201
Subnet mask: 255.255.255.0

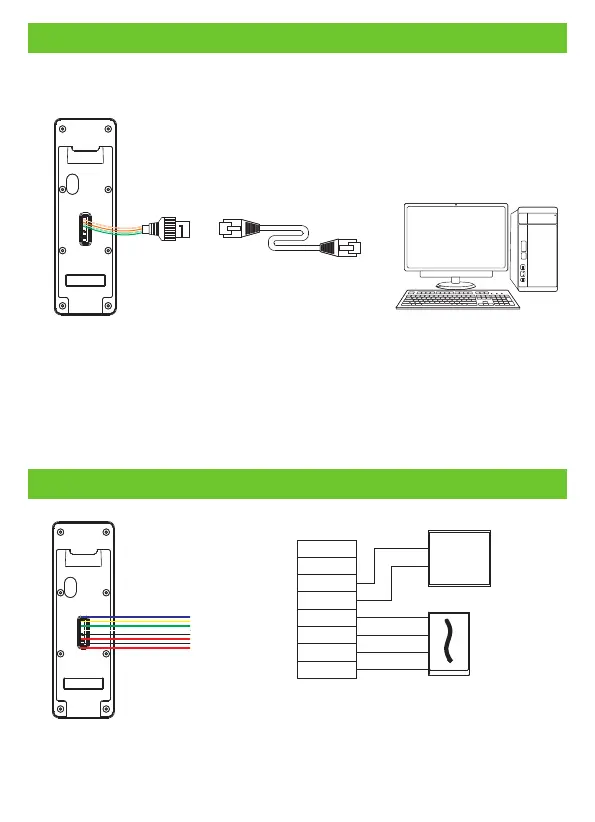

Connect the device and computer software over an Ethernet cable. As shown in the
example below:
ZKBio CVAccess
Note: In LAN, the IP addresses of the server (PC) and the device must be in the
same network segment when connecting to the ZKBio CVAccess server.
Wiegand Reader Connection
WD0
WD1
485A
485B
WD0-OUT
WD1-OUT
INWD0
INWD1
GND
12V-OUT
Wiegand
Reader
+12V
GND
WD1
WD0
Access
Controller
To Next Page
