ZKTeco SpeedFace-V3L Quick Start Guide

8

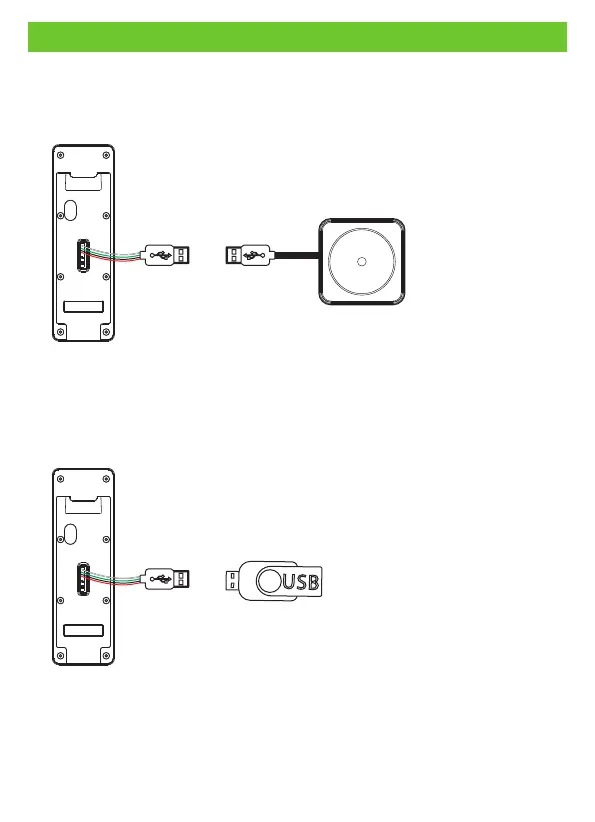

USB Connection
The device supports the connection of KF1000-U reader and USB disk.
KF1000-U Reader
KF1000-U
For more details, please refer to the KF1000-U User Manual.
USB Disk
USB Disk
For more details, please refer to the User Manual.
★

ZKTeco SpeedFace-V3L Specifications

General

Display type	LCD
Screen shape	Flat
Built-in display	Yes
Display diagonal	2.4 \
Display size (HxV)	240 x 320 mm
Internal memory	256 GB
Processor cores	2
Internal storage capacity	512 GB
Operating system installed	Linux
Type	Face recognition terminal
Access code reader	-
Authentication type	Biometric, Face recognition
Access chip/card reader	No
Face recognition distance	0.5 - 2 m
False Rejection Rate (FRR)	0.02 %
False Acceptance Rate (FAR)	0.01 %
International Protection (IP) code	IP65
Operating temperature (T-T)	-5 - 45 °C
Total megapixels	1 MP
RS-485 ports	1
Package weight	800 g

Weight and Dimensions

Depth	58.5 mm
Width	185 mm
Height	20 mm
Weight	300 g
