3 Equipment Installation
Installation Conditions
The equipment must be installed on concrete ground, ensuring that expansion bolts can be secured firmly.
You are suggested to install an assistant framework or fence to form a passageway, as shown in Figure 3-1.

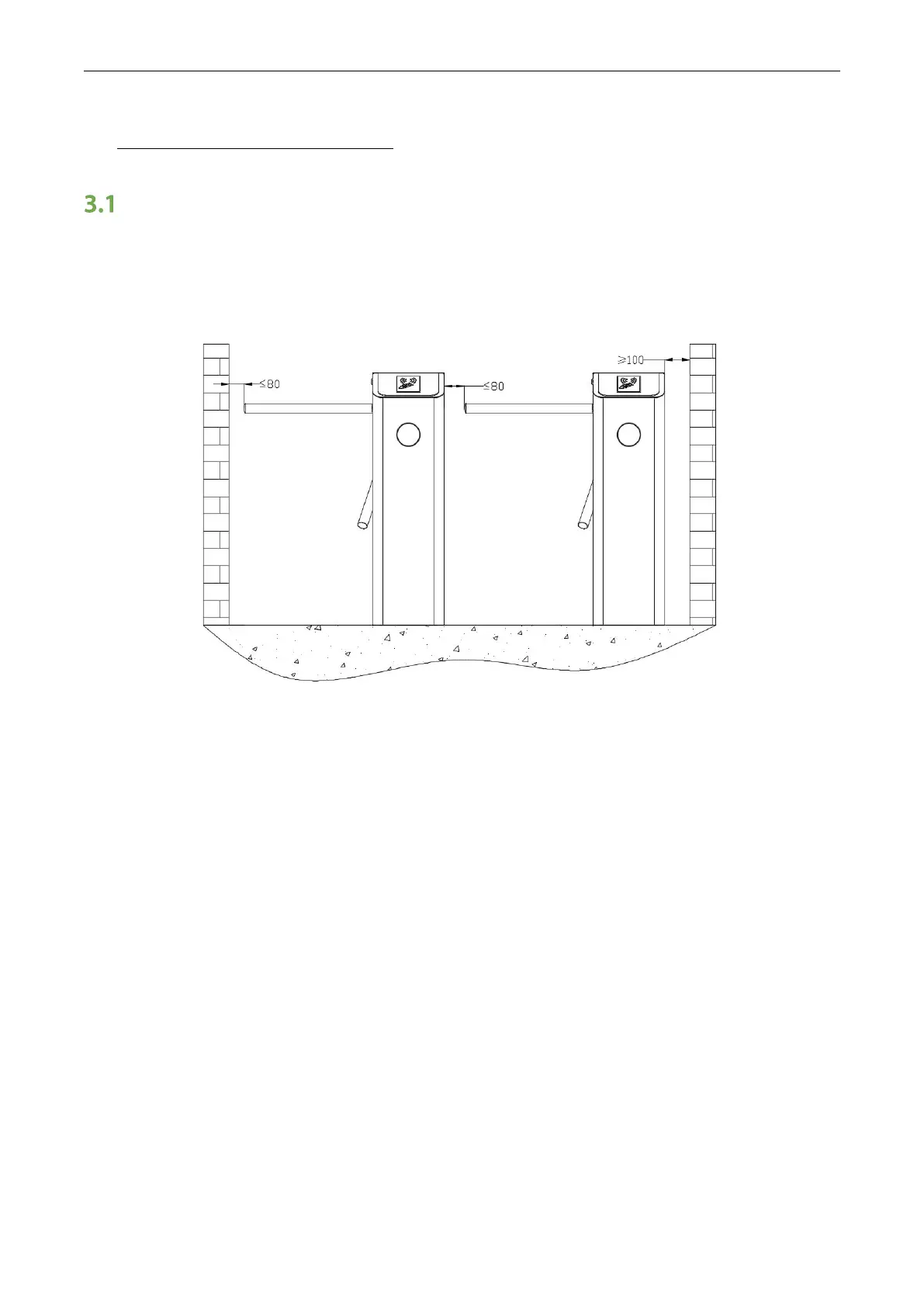

Figure 3-1
Notes:
1. When installing the tripod turnstile against the wall, please reserve at least 100 mm space in order to
open the cover for future adjustment and maintenance.
2. The space at the end of the arm shall not be greater than 80 mm (see Figure 3-1).
3. Setting a warning line for card swiping (see Figure 3-2). A warning line is suggested to prompt users to
swipe cards in a distance, which would greatly reduce the probability of equipment failure caused by
improper operations.
