Zodiac G2 Instruction Manual

4
SECTION 1 – INSTALLATION
Deflector Wheel
on hose
Wheel Adaptor

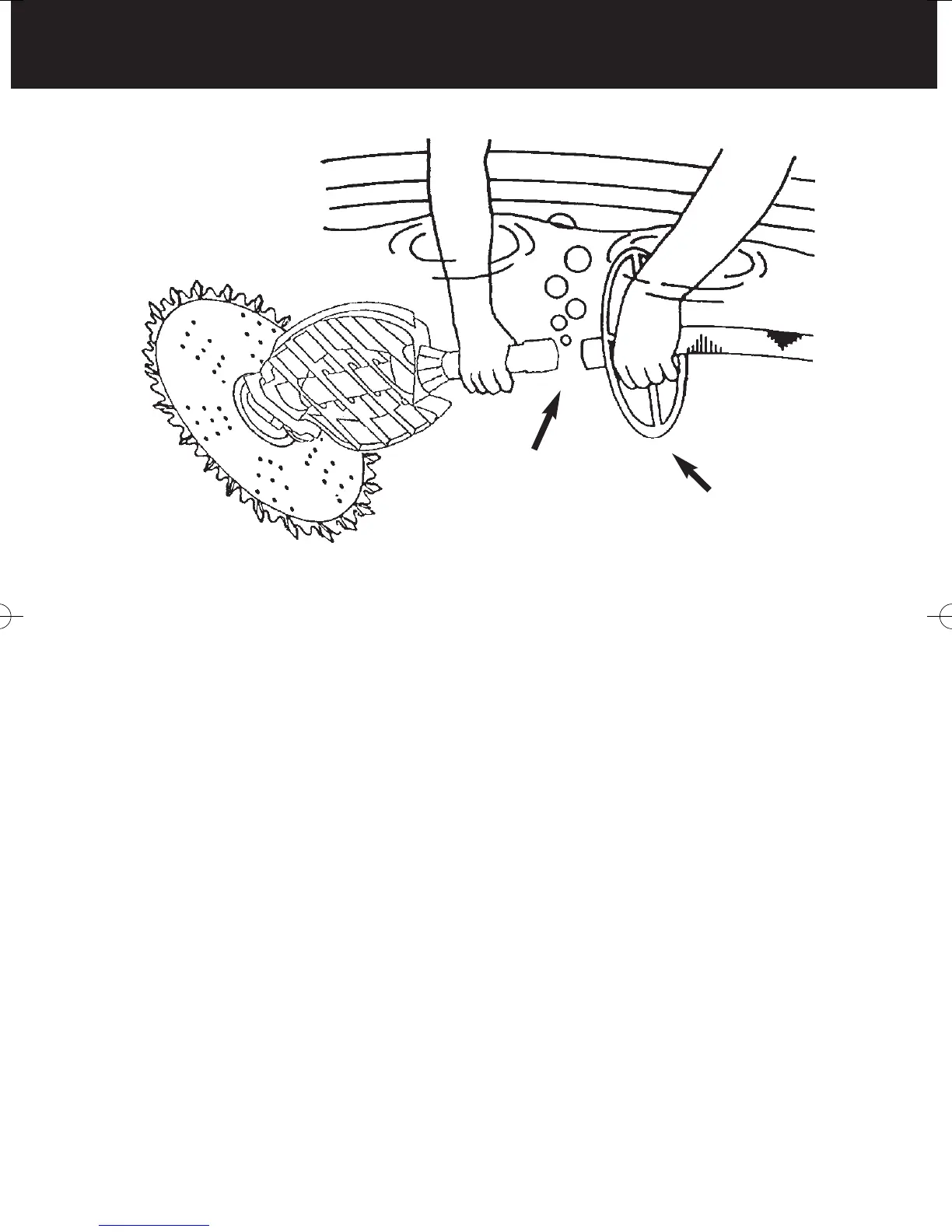

7) Before connecting hose to the fittings in the skimmer box it is essential
that all air is removed from the cleaner head and hose.
7a) For pools with more than one skimmer box; close off all suction points
except for the one the cleaner will be operating from. This provides the
cleaner with maximum suction.
The hose is now ready to be attached to the fittings in the skimmer box.
1505 G2 Manual.qxp 26/9/11 8:19 AM Page 8

Zodiac G2 Specifications

General

Pool Type	In-ground
Debris Type	Small to medium
Warranty	1 year
Power Source	Filtration System
Cleaning Coverage	Floor and walls
Pool Size	Up to 40 feet
