Defibrillator Controls and Indicators
9650-0912-06 Rev. G ZOLL R Series Operator’s Guide 2–7
Patient Cables and Connectors
The back of the unit includes a set of connectors for patient cables.

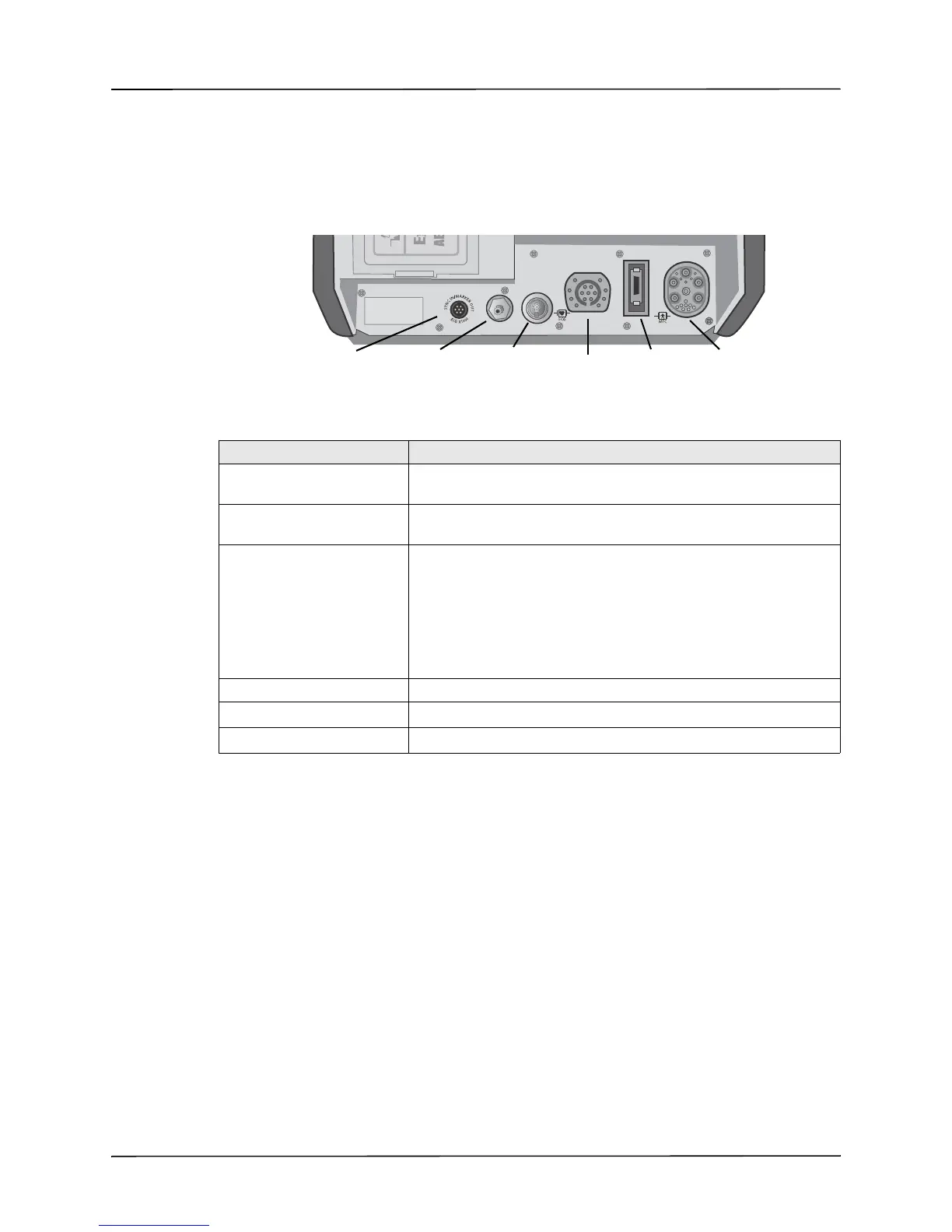

Figure 2-3. Patient Cable Connectors
OneStep Cables
The R Series ships with either a OneStep, or OneStep Pacing cable.
The OneStep Pacing cable has an additional connector that plugs into the rear panel ECG
connector. This cable is used with OneStep Pacing electrodes or OneStep Complete electrodes
for external pacing and ECG monitoring. Alternatively, you can disconnect the OneStep Pacing
cable from the ECG connector and use a 3- or 5-lead ECG cable.
Connector Description
OneStep Cable For connecting paddles or ZOLL hands-free therapy and pacing
electrodes using either OneStep or OneStep Pacing cables.
ECG For connecting 3- or 5-lead ECG cable or OneStep Pacing cable’s
ECG cable.
Sync In / Marker Out / ECG
x1000
Connector for
• An incoming defibrillator synchronization signal from an
external patient monitor.
• Output of R wave marker to an external patient monitor.
• ECG signal output for use with other equipment such as patient
monitors and radio telemetry equipment (1 V/cm of displayed
ECG signal).
NIBP (Optional) For connecting blood pressure cuff cable.
EtCO
2
(Optional) For connecting CO
2
monitor cable.
SpO
2
(Optional) For connecting pulse oximeter cable.
OneStep
SpO
2
(optional)
Cable
Sync In/
Marker Out/
ECG Out
ECG
NIBP
(optional)
EtCO
2
(optional)
