ZOLL R Series Operator's Guide

Common Tasks
9650-0912-06 Rev. G ZOLL R Series Operator’s Guide 2–13
Common Tasks
Follow the instructions in the subsequent sections for:
• “Replacing a Battery Pack” on page 2-13.
• “Adjusting Display Brightness” on page 2-13.
• “Using Code Markers” on page 2-14.
Replacing a Battery Pack
To remove a battery pack, press the tab on the end of the battery pack inward, and lift the
battery pack out of the compartment.

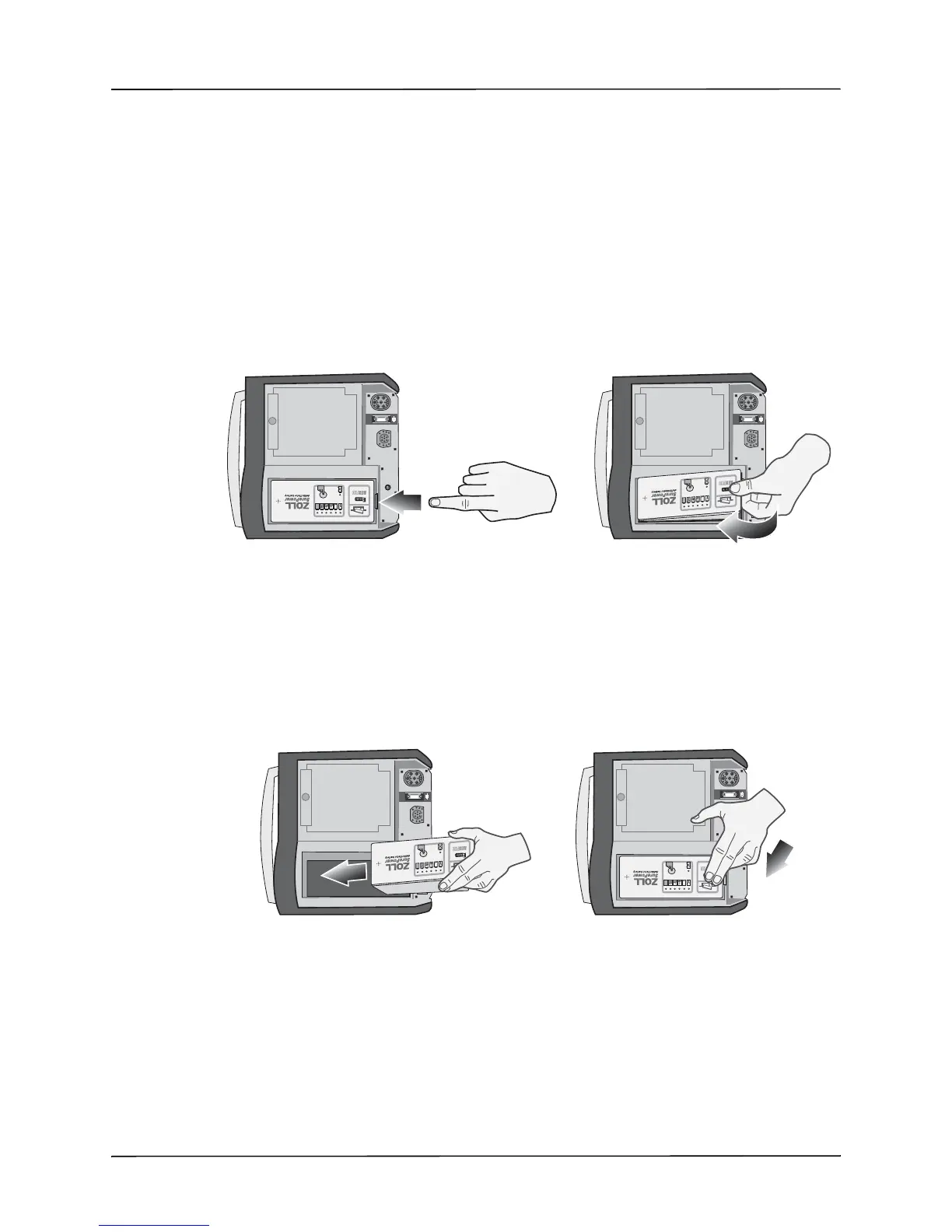

Figure 2-12. Removing a Battery Pack
To install a battery pack:
1. Place the end of the battery pack opposite the tab into the end of the compartment closest to
the front of the unit.
2. Lower the tabbed end of the battery pack into the compartment and press down on the tabbed
end until it locks into place.
Figure 2-13. Installing a Battery Pack
Adjusting Display Brightness
To adjust brightness:
1. Press the Options softkey.
?
?
3P/3P/ 3P/3P/
?
?
3P/3P/
3P/3P/

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
