Working with Menus
9650-0912-06 Rev. G ZOLL R Series Operator’s Guide 2–11
Pediatric-size electrodes are built into the paddle assembly beneath the standard electrode
plates. The user must manually adjust energy settings to pediatric levels consistent with their
institution’s protocols.

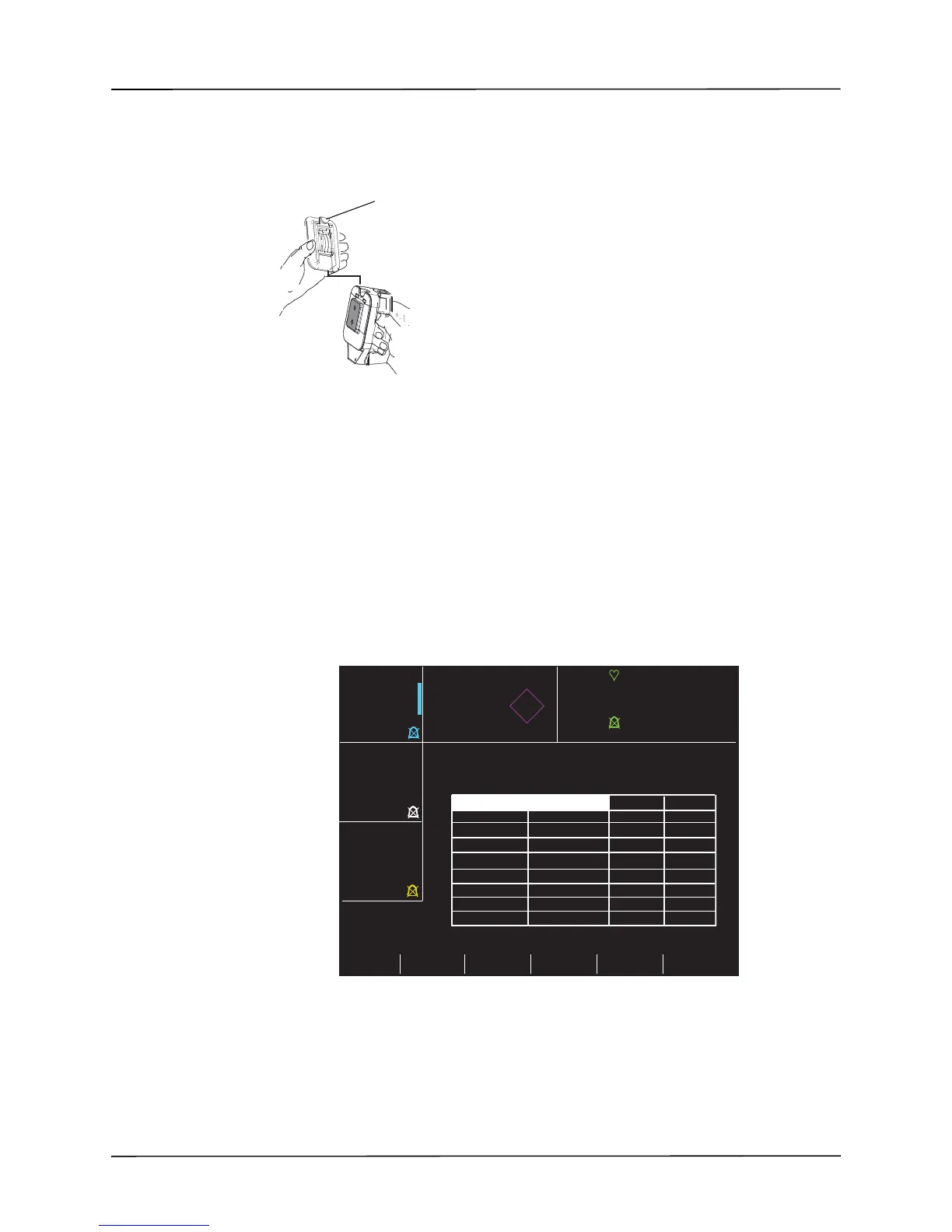

Figure 2-10. Pediatric Plate
Note: The R Series defibrillator also supports ZOLL autoclavable internal handles for use
during open chest defibrillation procedures.
Working with Menus
For some functions, the screen shows a menu of options with related softkeys for navigating
through the menus and making selections and entries.
Figure 2-11. Example Display Screen
On the display, highlighting indicates the currently selected item, that is, the item or value you
are working with.
To expose the pediatric
plate, press the PEDI
button at the top of the
paddle, then slide the
Adult plate upward.
Before replacing the
Adult plate, be sure to
clean the pediatric plate
and surrounding area
PEDI button
Prev
Param
Next
Field
Return
72
ECG
PADS
x1
SpO2%
0:00
IDLE
Depth
Rate
99
NIBP
mmHg
---
---
---
CO2
mmHg
---
---
RR
Ɔ
Parameter State Low High
SpO2
ENABLE
DISABLE
30
85
150
100
ECG HR
ALARM SET
Next
Param
Change
Value
EtCO2
RESP RATE
NIBP SYS
NIBP DIA
NIBP MEAN
ENABLE
ENABLE
ENABLE
ENABLE
ENABLE
25
55
5
120
90
160
50
110
60
130
CPR
PPI
To Next Page
