CHAPTER 2PRODUCT OVERVIEW

2–10 www.zoll.com 9650-0912-06 Rev. G

Attach the OneStep cable from the R Series unit to the connector at the base of the apex paddle.

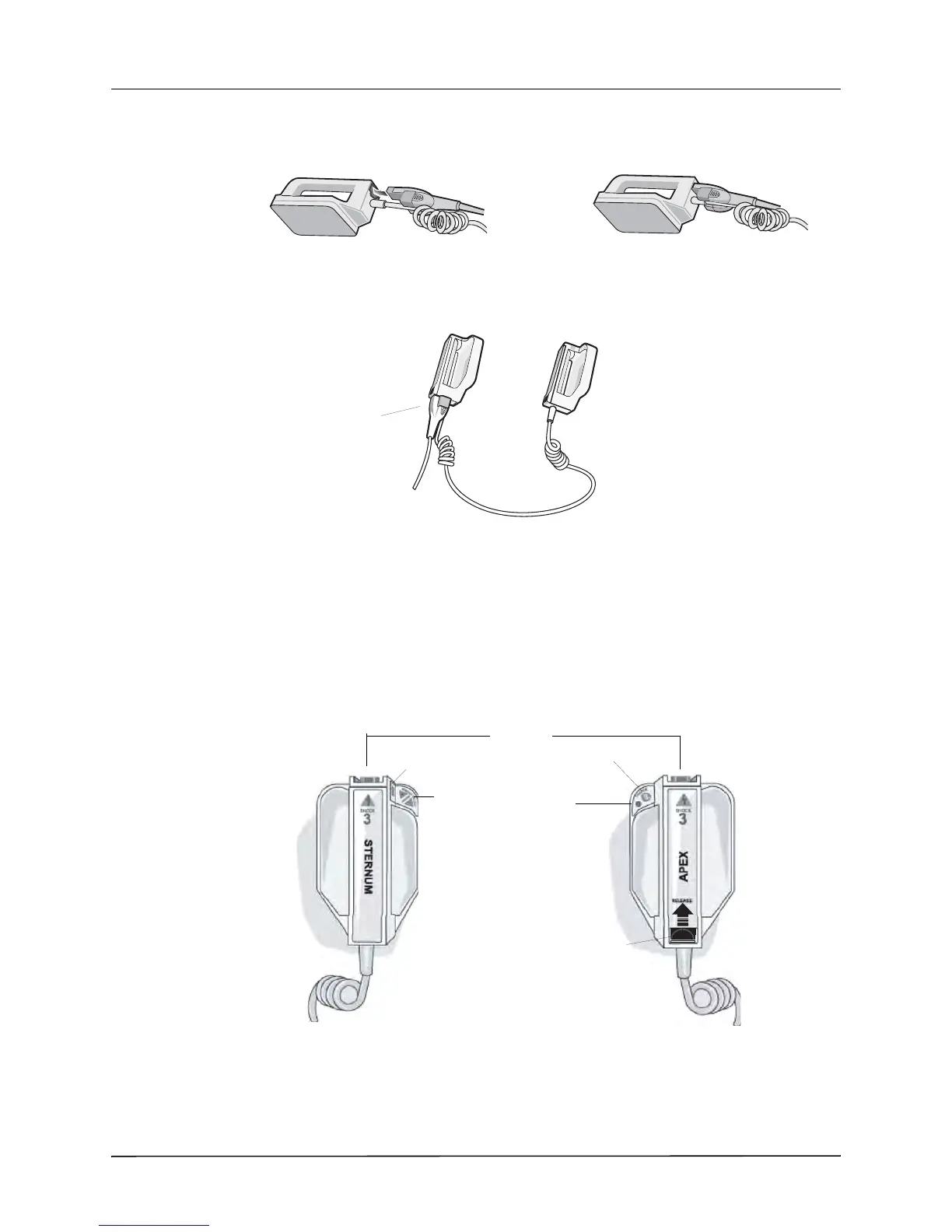

Figure 2-7. Attaching the OneStep Cable to the APEX Paddle

Figure 2-8. OneStep Cable Connected to APEX Paddle

If you need to detach the OneStep cable from the APEX paddles, push the RELEASE button

(see Figure 2-9) in the direction of the arrow and unplug the OneStep cable.

Refer to Chapter 3, "Manual Defibrillation" before using paddles for defibrillation. The paddles

include controls for selecting defibrillation energy, charging, delivering a shock, and turning

the stripchart recorder on and off.

Figure 2-9. External Paddles

1. Align OneStep cable as shown. 2. Insert OneStep cable into APEX paddle.

OneStep cable connected

to APEX paddle

SHOCK

Buttons

RECORDER

Button

ENERGY

SELECT

Buttons

CHARGE

Button

Charge Ready

Indicator

Sternum Paddle

Apex Paddle

Connector

and RELEASE

button for

OneStep cable
