See-Thru CPR
Put rhythm simulator on “VF Artifact”
Two Wave Forms
Raw EKG - Waveform with artifact
Filtered EKG - Internal algorithm filters out artifact allowing you to see the underlying rhythm.
o You can see the underlying rhythm without stopping compressions.
o Someone can press charge while you continue doing compressions.
o Once the red Charge button lights up and you hear the tone…
Stop compressions and evaluate the rhythm to make sure it is
shockable
Then, shock and get back on the chest in less than 10 seconds to
meet guidelines
PACING (Green Zone)
Put rhythm simulator on “3rd”
Leads
Built into OneStep Complete and Pacing Pads
Apply 3 lead if you are not using OnStep or Pacing Pads.
Apply 3 lead if you use alternate placement of OneStep Pads
Dials
1. Rate
2. Output
Default Settings
0mA and 70PPM
Output
40-80mA. (Good starting point)
Pacing
Confirmed with downward pacing markers
Capture
Widened QRS after each pacer marker
Set output 10% above threshold
Confirm by checking patient pulse
Underlying Rhythm
Press and hold the 4:1 button at the button of the screen to see underlying rhythm

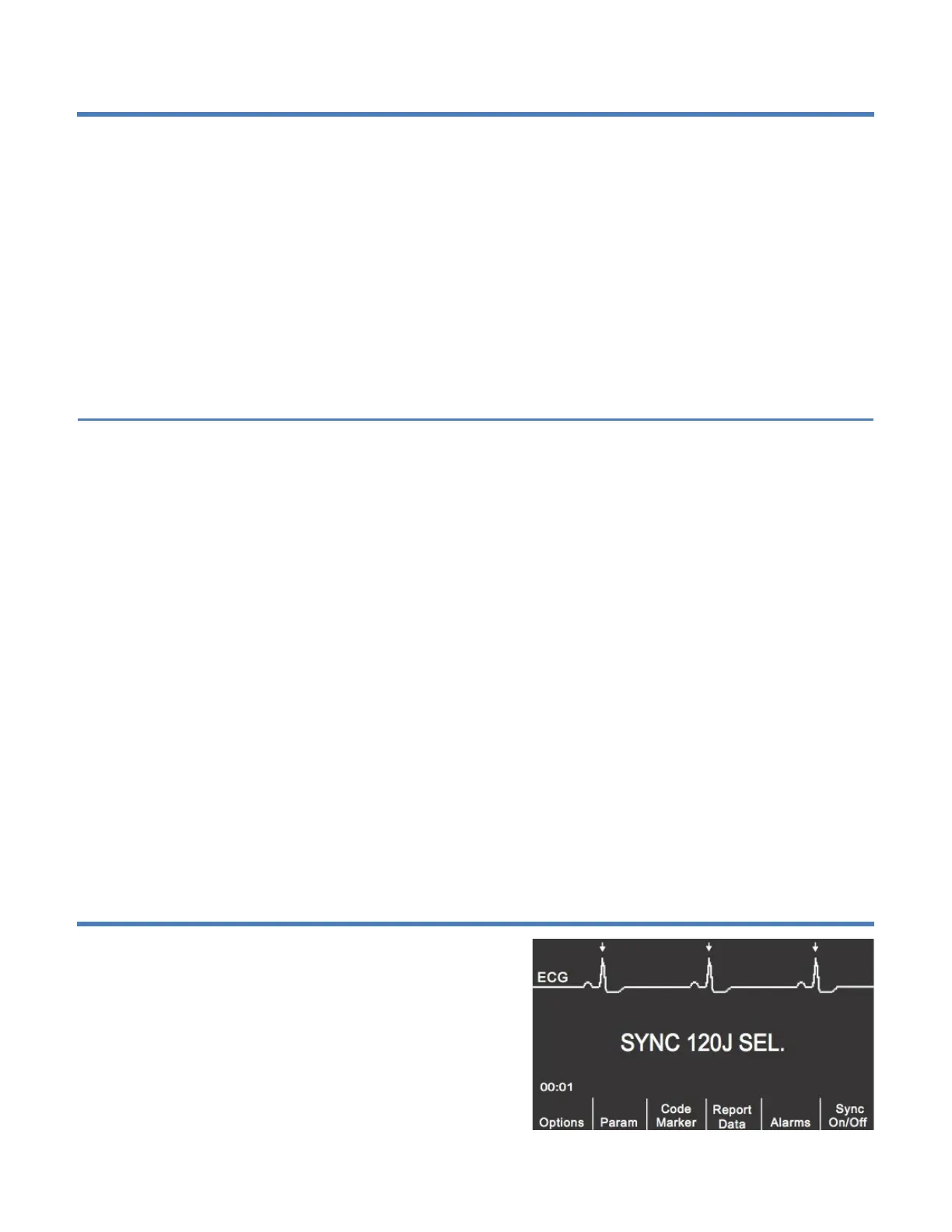

CARDIOVERSION (Red Zone)
Put rhythm simulator on “AFIB”
1. Turn to DEFIB mode
2. Press Sync On/Off button on the bottom right
(soft key)
3. Confirm arrow markers on every “R” wave telling
the defib where to shock.
4. Press CHARGE
5. “All clear!”, then press and hold SHOCK until
the device fires.
