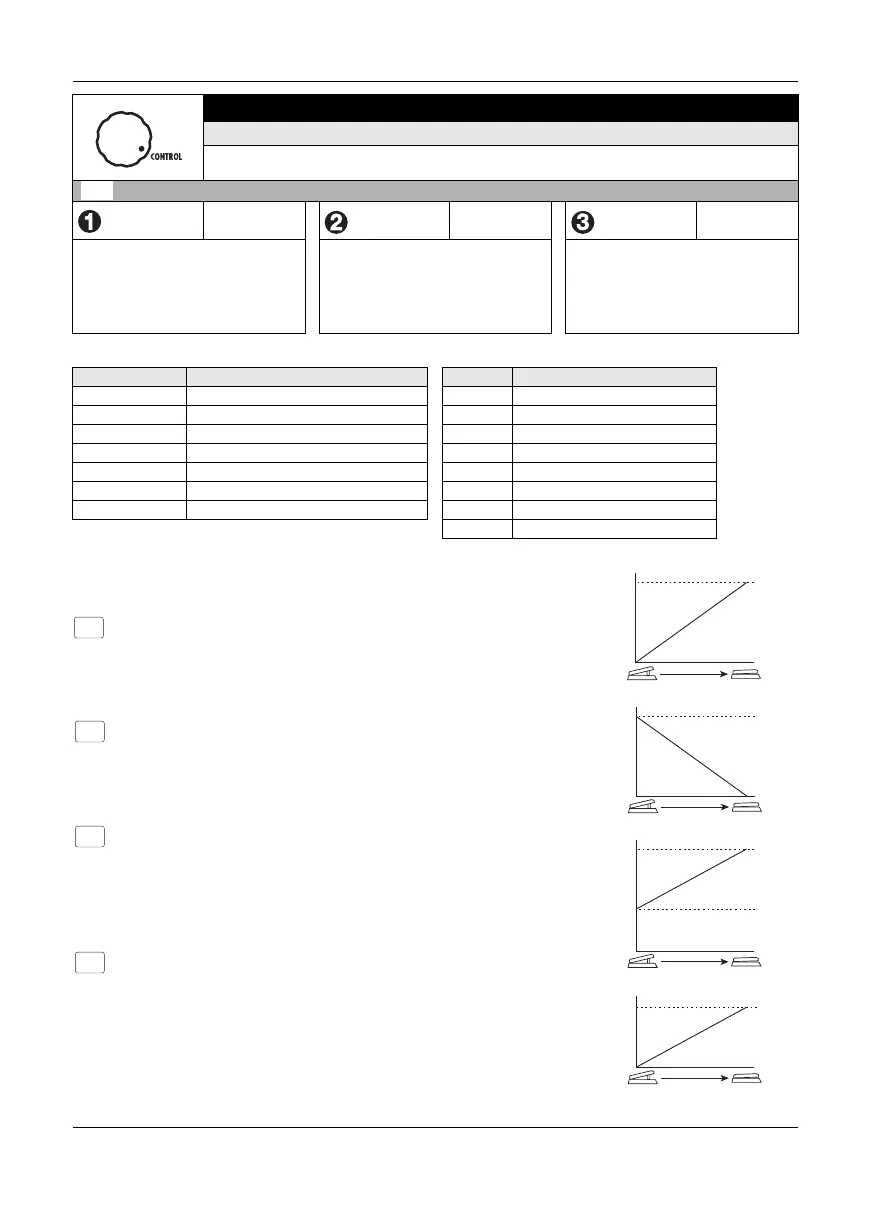

Effect Types and Parameters
ZOOM A2
33
CONTROL
CONTROL module
Serves for making pedal settings and lets you control the foot switch function and master level
setting applying to all patches.
Ct
CONTROL
RTM
DESTINATION
See Table 3
FS
See Table 4
MASTER
LEVEL
0 – 98, 1.0
When an expression pedal (FP01/FP02)
is connected to the [CONTROL IN]
jack, this selects the modulation target
module for the RTM function (see Table
3).
When a foot switch (FS01) is connected
to the [CONTROL IN] jack, this selects
the function that can be operated with
the foot switch (see Table 4). The
function selected here applies to all
patches.
Adjusts the master level for all patches.
[Table 3] [Table 4]
Setting Modulation target Setting Function
oF
OFF
bP
Bypass/Mute
vL
Volume
tP
Tap tempo
CU, Cd, CH, CL
COMP/LIMIT module (*)
bU
Bank up
tU, td, tH, tL
TONE parameter of MODEL module (*)
rH
Rhythm function on/off
EU, Ed, EH, EL
MOD/EFX module (*)
dH
Delay hold
dU, dd, dH, dL
DELAY/REVERB module (*)
dM
Delay input mute
Fb
Frequency of feedback control function.
Mn
Manual mode on/off
Fb
Feedback control function on/off
CT
"UP"
Maximum value
Minimum value
Maximum value
Maximum value
alue set in patch
alue set in patch
Minimum value
Minimum value
"DOWN"
"HIGH"
"LOW"
The operation of modules denoted by (*) changes as follows,
according to the letter at right.
UP
The parameter is at minimum when the pedal is fully raised and
at maximum when the pedal is fully pushed down.
DOWN
The parameter is at maximum when the pedal is fully raised and
at minimum when the pedal is fully pushed down.
HIGH
When the pedal is fully raised, the parameter is at the value set in
the patch. When the pedal is fully pushed down, the parameter is
at maximum.
LOW
When the pedal is fully raised, the parameter is at minimum.
When the pedal is fully pushed down, the parameter is at the
value set in the patch.
U
D
H
L
