Zoom G1 User Manual

17
15
16
2
12
7
14
9
8
2
18
19
22
21
21
4 5
1
10
11
22
12
20
13
21
21
3
3
3
- 19 -
6
No. PART NAME DRAWING NO Code No. Q'TY
1 G1 TOP CASE Z2B-0226 SP02358 1
2 BOTTOM CASE Z2A-0125 SP02359 1
3 FOOT SW ASSY Z2B-0227, Z2D-0067 SP02360 2
4 VR KNOB 1 Z2B-0228-B SP02361 1
5 VR KNOB 2 Z2B-0229 SP02362 1
6 PCB SPACER Z2B-0232 SP02373 2
7 FOOT SW PLATE R Z2B-0233 SP02374 1
8 G1 DISPLAY SHEET Z2E-0216 SP02363 1
9 FOOT SW PLATE L Z2B-0234 SP02375 1
10 FOOT SW SPRING Z2A-0126 SP02369 2
11 BATT CASE Z2B-0230 SP02376 1
12 BATT CASE COVER ASSY Z2B-0231, Z2E-0190 SP02377 1
13 BATT SPRING
(
+
)
Z2A-0127 SP02370 1
14 BATT SPRING
(
-
)
Z2A-0128 SP02371 1
15 BATT SPRING
(
+/-
)
Z2A-0129 SP02372 1
16 FOOT RUBBER 1-L Z2D-0068 SP02364 1
17 FOOT RUBBER 2-L Z2D-0069 SP02365 1
18 FOOT RUBBER 1-R Z2D-0070 SP02366 1
19 FOOT RUBBER 2-R Z2D-0071 SP02367 1
20 SUPPORT FOOT RUBBER Z2D-0072 SP02368 2
21 SCREW M3×8L P-ti
g
ht SP01185 8
22 SCREW M3x10 P-ti
g
ht SP02074 2
23
G1 Main PCB ass
y
PCB-0169
SP40171 1

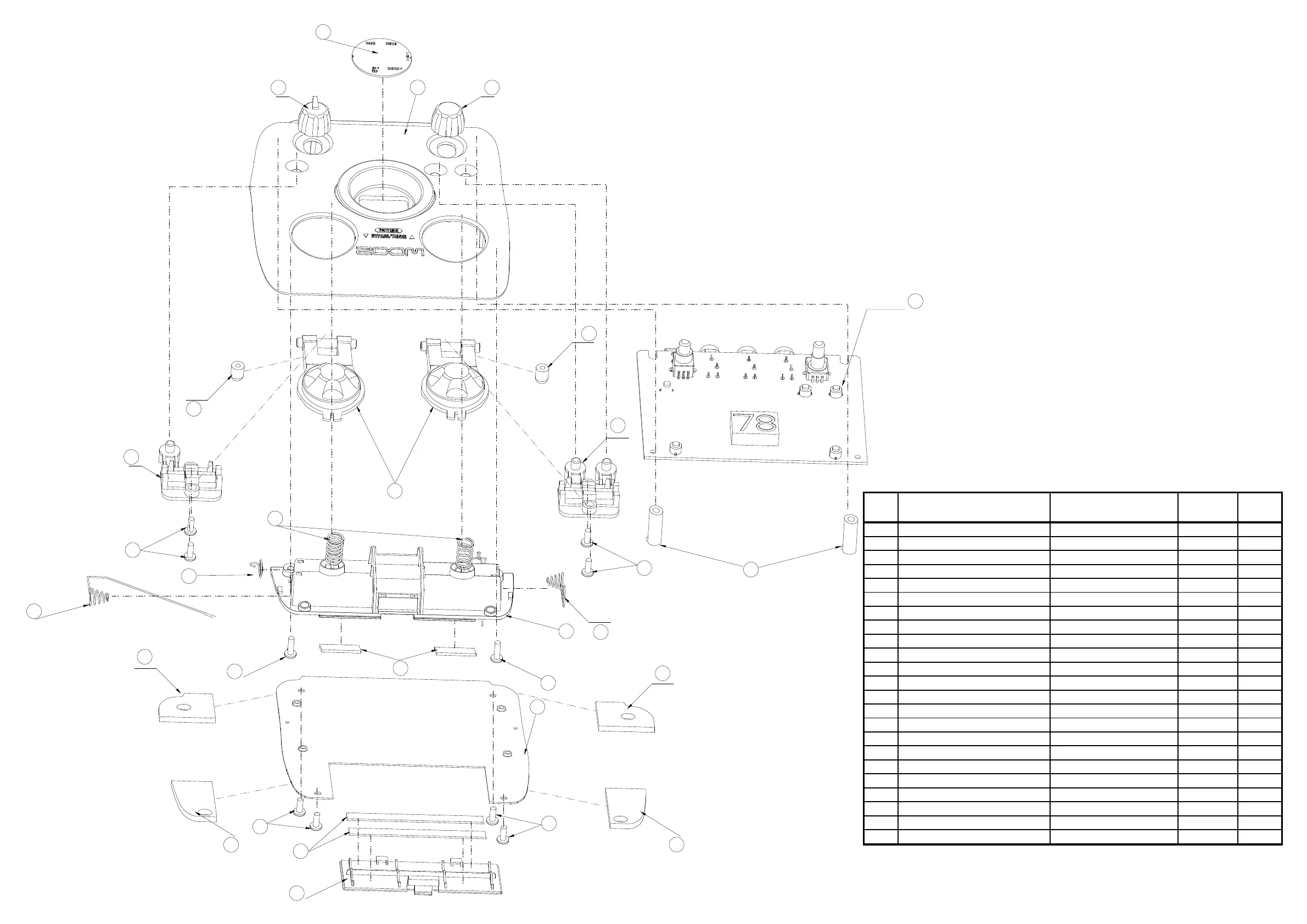

Exploded View

Zoom G1 Specifications

General

Simultaneous Effects	5
A/D Conversion	24-bit
D/A Conversion	24-bit
Input Impedance	1 MΩ
Output Impedance	1 kΩ
Patch Memory	40
Weight	350g (without batteries)
Inputs	1/4" phone jack
Outputs	1/4" phone jack
Effects Types	Compressor, Overdrive, Distortion, EQ, Chorus, Flanger, Phaser, Tremolo, Vibrato, Delay, Reverb
