At this interface, operators can set angle limitation of main boom and luffing jib. When the crane boom
approached the limitation, press the related key, it will present SET icon on top of the key which means
the key is already pressed down. At that time, the ultimate angle will be recorded and when the boom
reach to this angle next time, system will alarm.
For example, when the main boom angle is not allowed to exceed 78° due to the operating environment,
lift the main boom to 78° and press angle limitation setting key to set the upper limit. After finish the
setting, when main boom angle exceed 78°, system will alarm operators to stop any dangerous
movement. Press F3 the setting will be canceled.
(2) Time setting

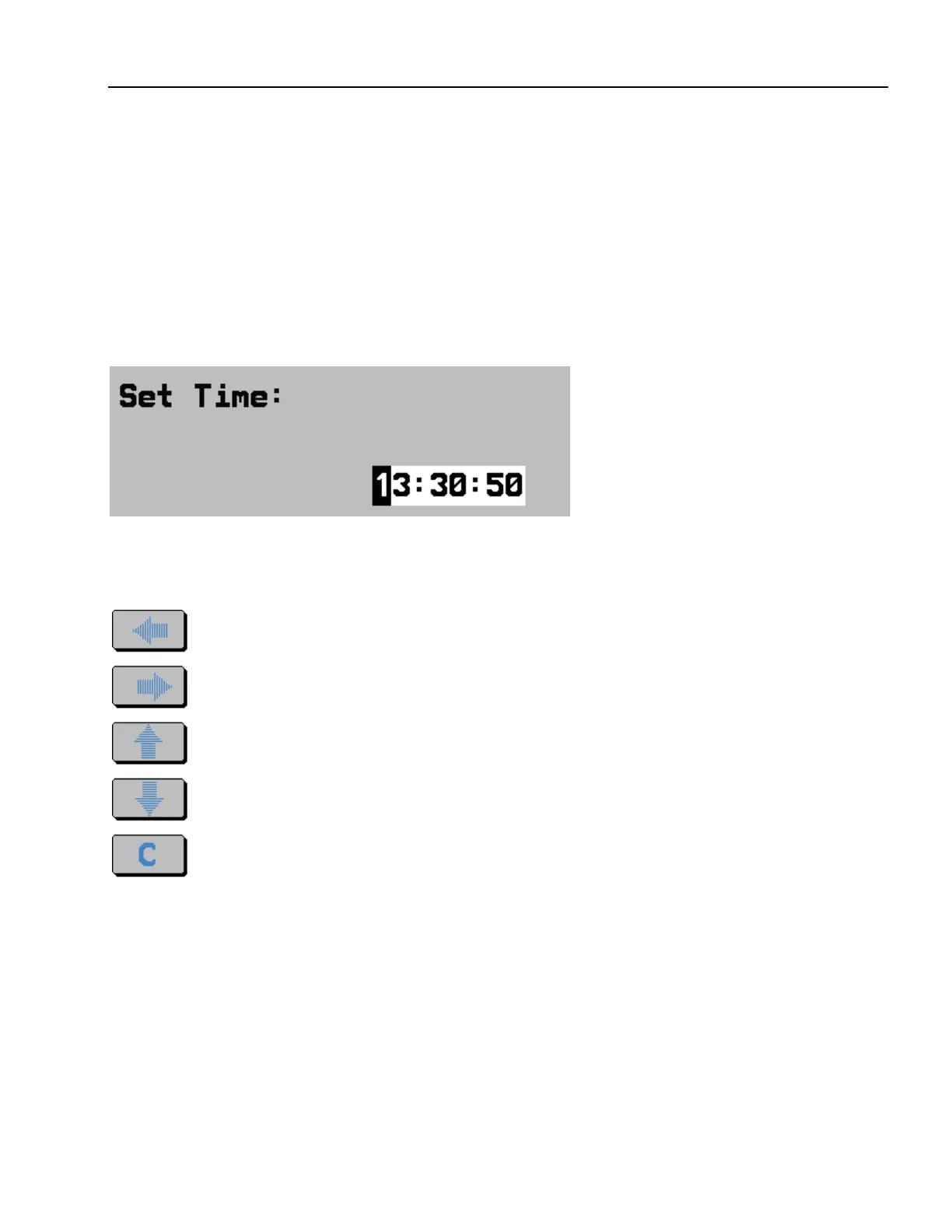

Operators can adjust time when the time displayed is not local time .Press F4 at 2
nd
interface to set
time:
F4：Turn left key
F5：Turn right key
F6：Value add key
F7：Value reduce key
F8：Confirm and back to main interface key
After finish the related setting, press F8 to confirm and back to main interface.
