User Manual
4

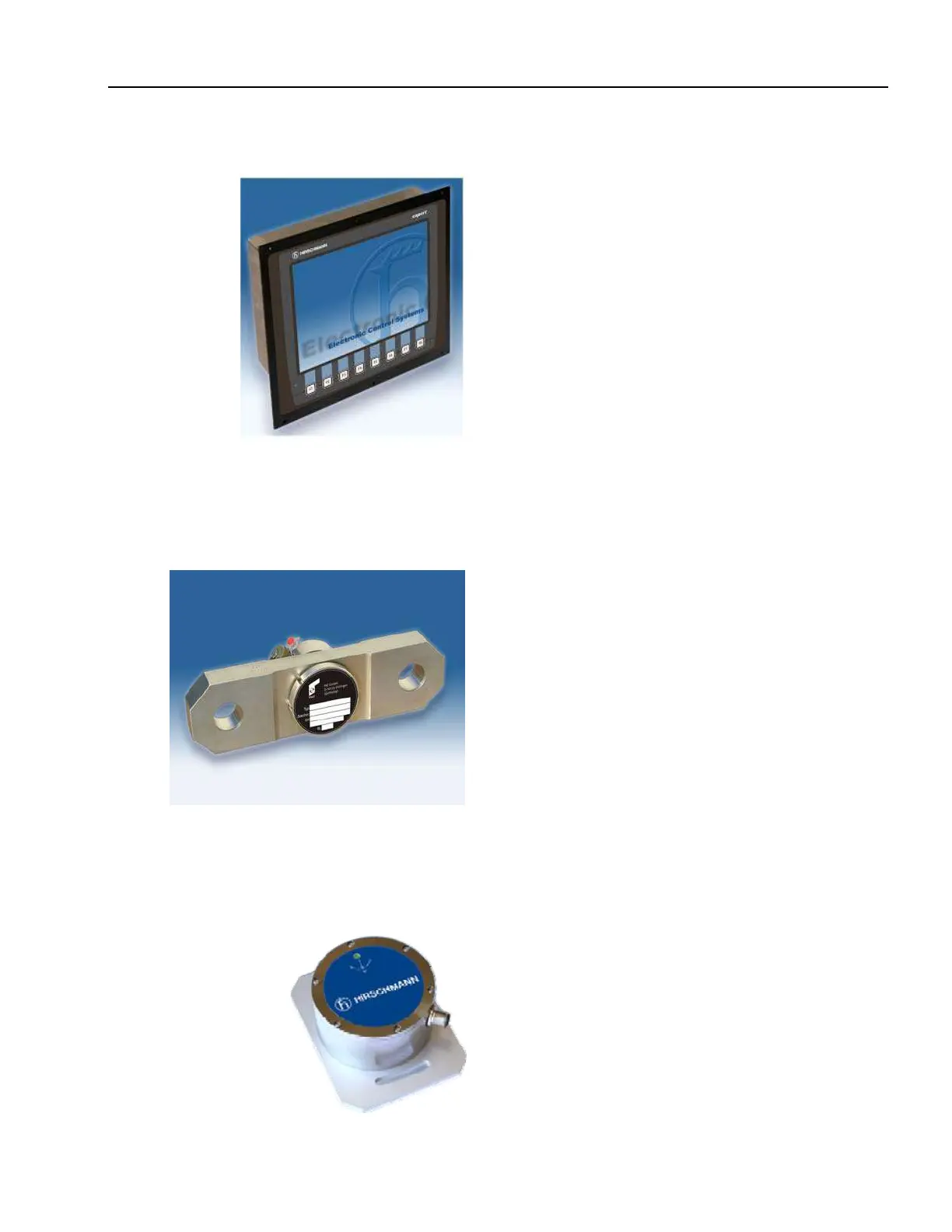

4.2 Console
4.3 Console
Console: a 640*480 color LCD of industrial
lattice screen graph liquid crystal. It can
display all the operational data that you are
concerned. The combination between the
Graphical display and Genersys software
achieve the on-line program for graph. The
strong graph compiled capability is
incomparable with other Industrial Control
displays.
4.3 KMD Force sensor
4.4 KMD force sensor
The system adopts shock-proof,
anti-electromagnetic interference, and high
precision and low zero drift. As the sensor has
the compensated function of temperature, it
can retain its own quality even with continuous
and high-intensive operation.
Remarks：all the analog sensor for iFLEX5
system must be current type or with CAN-bus.
Voltage sensor have to change to current
sensor.
4.4 Angle sensor
4.5 Angle sensor
The WGC angle sensor is for exact measurement
for angle of all kinds of construction machines.
Distinguished by its compact exterior, the sensor
has the feature of simple installation, high
efficiency and accuracy, no hysteresis, high
protective class, long time service life and suited
to extreme ambient condition.
