5.3.5 Angle limitation & Time setting
Angle limitation and Time setting is processed at 2
nd
interface. Press F1 at 1
st
interface to enter into 2
nd
interface:

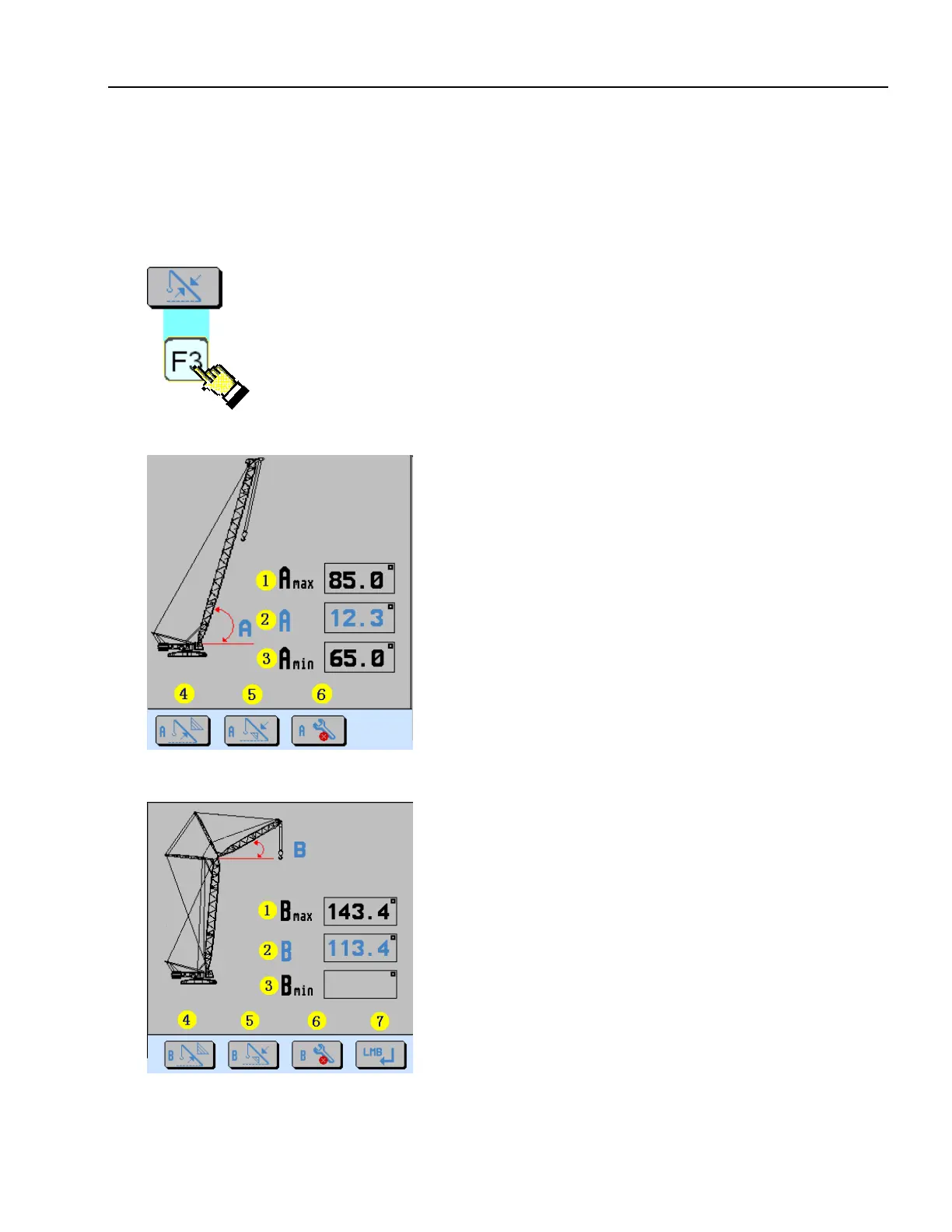

(1) Angle limitation
Press F3 at 2
nd
interface to set the limitation of main boom angle and Luffing jib
angle:
① Main boom angle upper limit display
② Main boom angle display
③ Main boom angle lower limit display
④ Main boom angle upper limit setting key
⑤ Main boom angle lower limit setting key
⑥ Main boom setting cancel key
① Luffing jib upper limit display
② Luffing jib angle display
③ Luffing jib lower limit display
④ Luffing jib upper limit setting key
Luffing jib lower limit setting key
⑥ Luffing jib setting cancel key
⑦ Back to main interface
