4.System configuration
4.1 System configuration

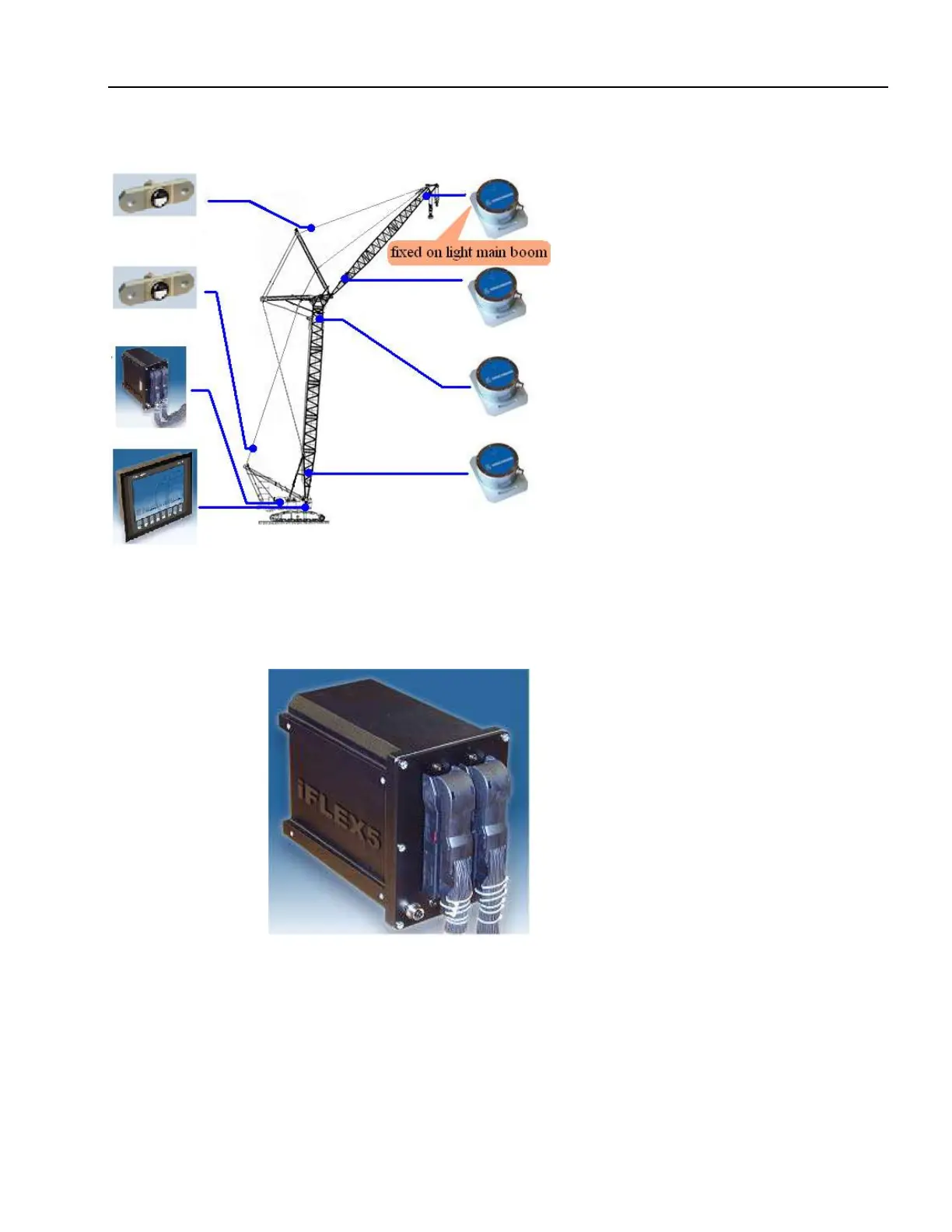

The system is composed of Expert
console, iFLEX5 controller, KMD
force sensor, angle sensor, etc.
When operator sets current OM and
reeving according to the key of the
display, the signal is transmitted to
controller and display by pull sensor.
The display shows the actual weight
and rated weight. The actual weight
and rated weight is compared in the
controller. Once the rated weight is
reached, the controller will indicate
the overloading warning signal and
send warning sound. At this moment,
operator is forbidden to operate to
dangerous direction.
4.1 Controller
4.2 Controller
Controller: 32 digit industrial control
PLC system and high-powered
processor qualify the requirements of
bad environment for all kinds of
industrial system. IFLEX5 module is
composed of base board or base
board add expansion board.
Customers could choose different
IFLEX5 module according to their
own needs. Each module can be
connected by CANBUS. Due to the
building block mode, the IFLEX5 is
not only applicable to medium and
small control systems, but also to big
and complicated control systems.
