User Manual ZFG 3.0
- 20-
7.1.6 Software
The software comes on a CD, along with an USB-SD adapter.
7.1.6.1 Short manual
A detailed manual for the software is on the installation CD, is generated by the software by
pressing „F1“ or can alternatively be accessed in the menu Help/Show Manual.
7.1.6.1.a) Installation
Supported operating systems: Windows 2000, XP, Vista, 7
1. Put the installation CD into the CD drive
2. When the CD does not start by itself, open the file „ZFG-Software_Setup.exe“, which is
located on CD.
3. Follow the instructions
7.1.6.1.b) Read in data
1. Start the program „ZFG Software“
2. Click in menu „File“on „Read in...“
3. Select i.e. the Folder „ZFG“ on the SD-card and click on „ZFG.NRZ“
4. All files in folder will be read in and shown in an overview.
5. Select desired data sets and click OK to transfer it into the document.
7.1.6.1.c) Save and open files
Saving and opening documents is similar to the windows-default. Saved files use the file extension
zfg3.
7.1.6.1.d) Printout
It is possible to print single protocols, the statistic (in menu File/Print) or all at once (menu
File/Project print)

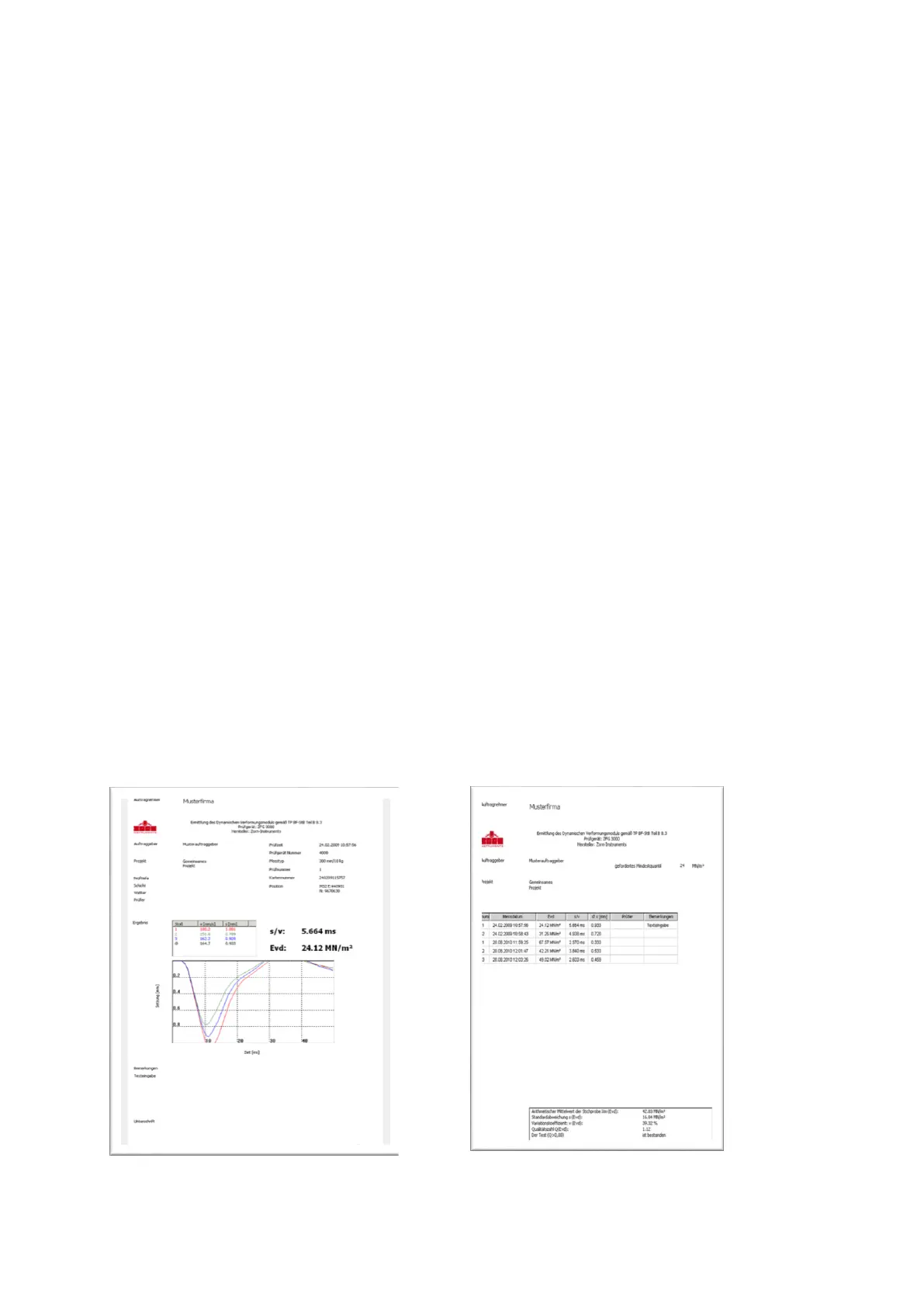

Picture 9: Printout single view
Picture 10: Printout statistic view
