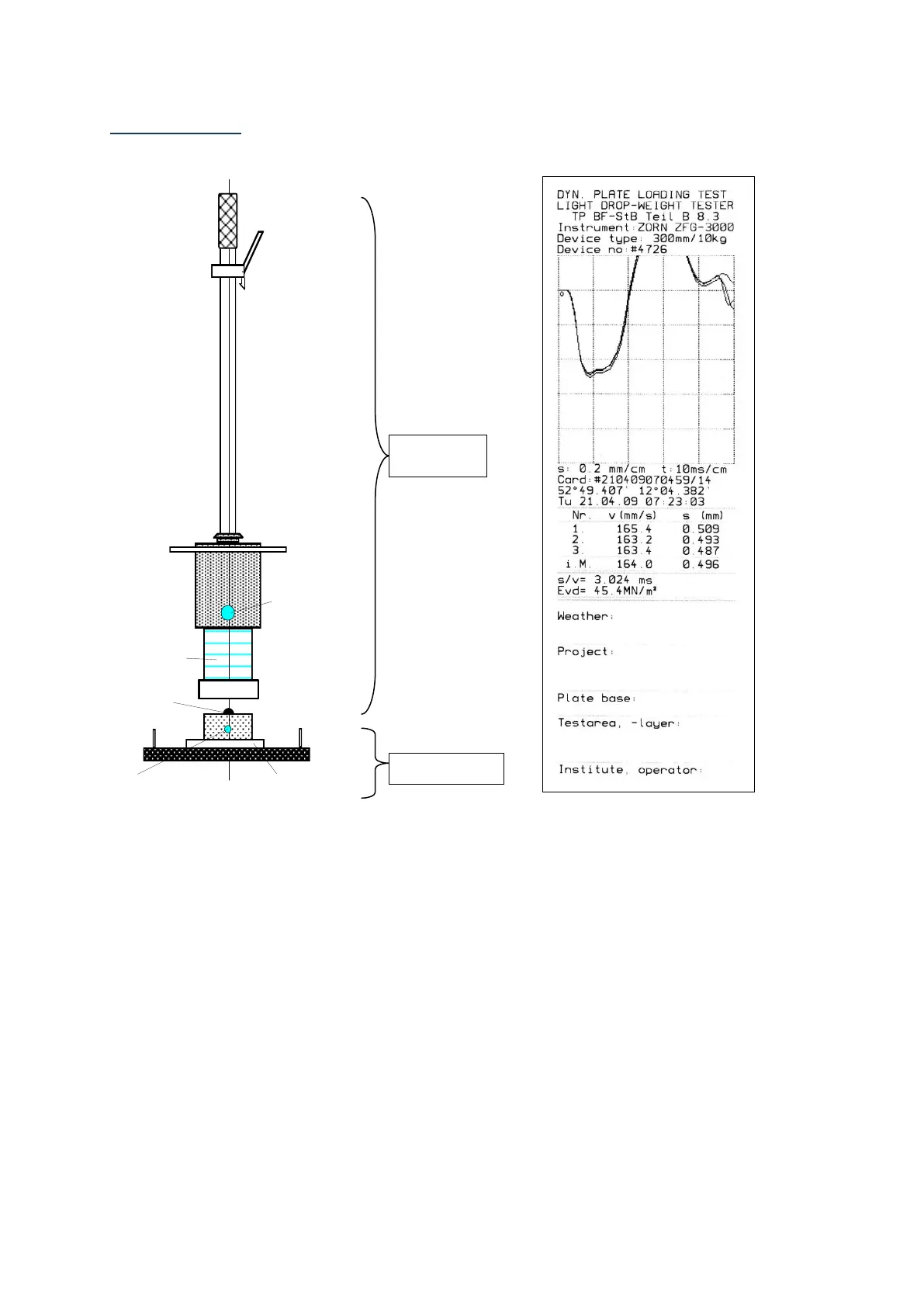

7. Device view
Mini-printer printout
(2)
(1)
(3)
(4)
(6)
(5)
(7)
(8)
(9)
(10)
(10)
(11)
(12)
(13)
(1) Handle
(2) Top limit stop with release device
(3) Guide tube
(4) Round handle
(5) 10 kg fall weight
(6) Transport lock
(7) Spring element
(8) Anti-tip device
(9) Centring cone
(10) Carrying handle
(11) Loading plate
(12) Socket for connecting measuring cable to settlement gauge
(13) Adapter plate
Loading
device
Loading plate
