Getting started
The router operates on the LTE/HSUPA/HSDPA/WCDMA network
and supports voice and data service.

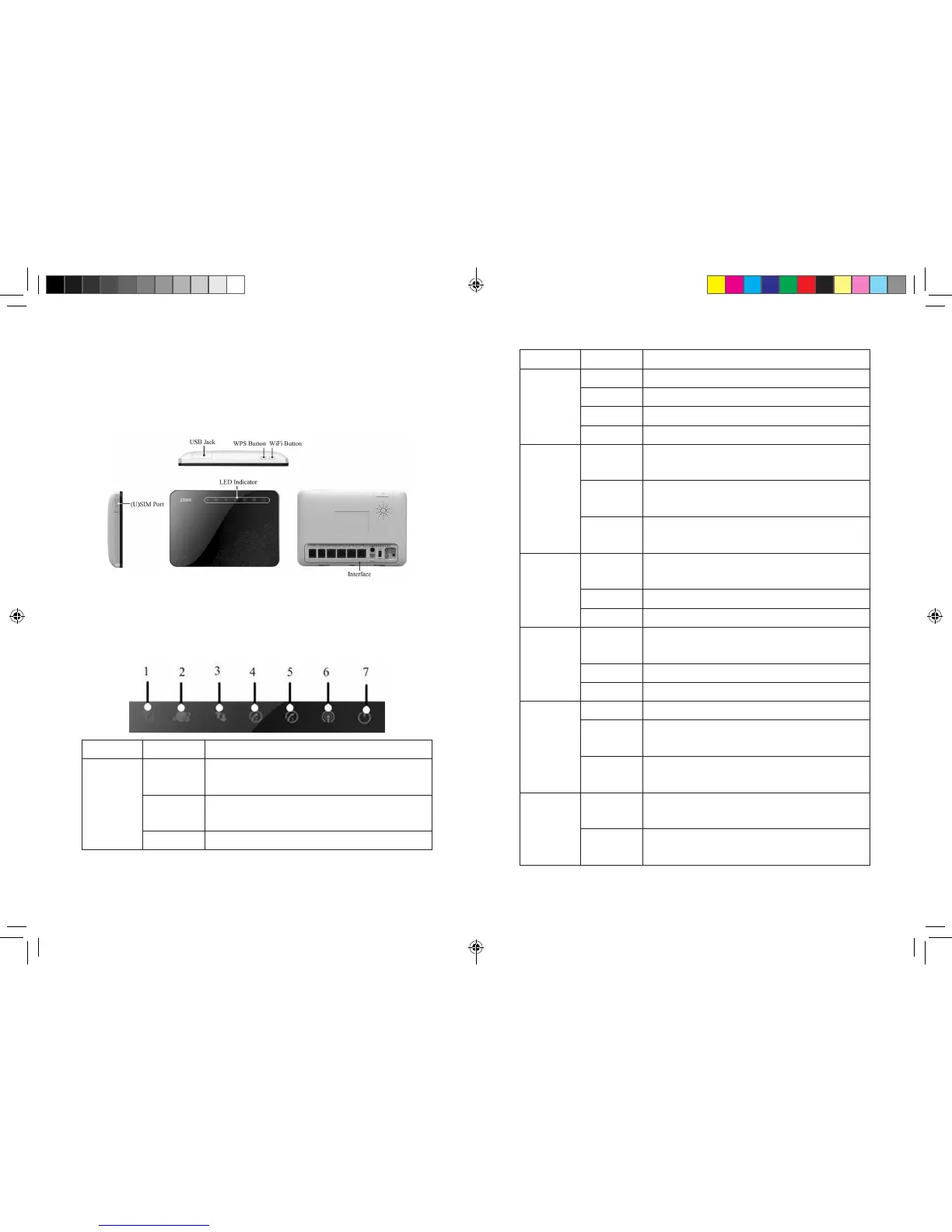

Appearance
WiFi button: To enable and disable WiFi.
WPS button: To activate the PBC (Push Button Config) function.
For detail usage, please refer to chapter Usage of WPS
LED Indicator
Indicator State Description
1 WAN
signal
strength
indication
On
Signal strength is very good or good (RSSI
>= -90dBm)
Blinking
Signal strength is weak (-100dBm < RSSI <
-90dBm)
Off No signal(RSSI < -100dBm)
Indicator State Description
2 Network
mode
indication
Blue Registered to 3G network
Green Registered to LTE network
Red Registered to EDGE network
Off Not Registered
3 WAN
connection
status
indication
On
WAN connection established (PDP acti-
vated)
Blinking
WAN connection establishing (PDP activat-
ing)
Off
WAN connection not established (PDP not
activated)
4 Phone
status
indication
Off
Local phone hang up or VoIP network un-
registered or registration failure
Blinking Phone picked up, ringing
On Local phone calling
5 Phone
status
indication
Off
Local phone hang up or VoIP network un-
registered or registration failure
Blinking Phone picked up, ringing
On Local phone calling
6 WiFi
indication
Off WLAN shut down
On
WLAN working normally with no data trans-
mission
Blinking
WLAN working normally with data transmis-
sion
7 Power
indication
On
Once power button is pushed and device is
powered on
Off
Once power button is pushed and device is
powered off
