Zytronic Projected Capacitive X-Y controller Touchscreen - USB ZXY-U-OFF-32-A Controller

Touchscreen User Manual – Issue 1
Zytronic X-Y Controller (Serial and USB) 50
8.2 USB ZXY-U-OFF-32-A Controller

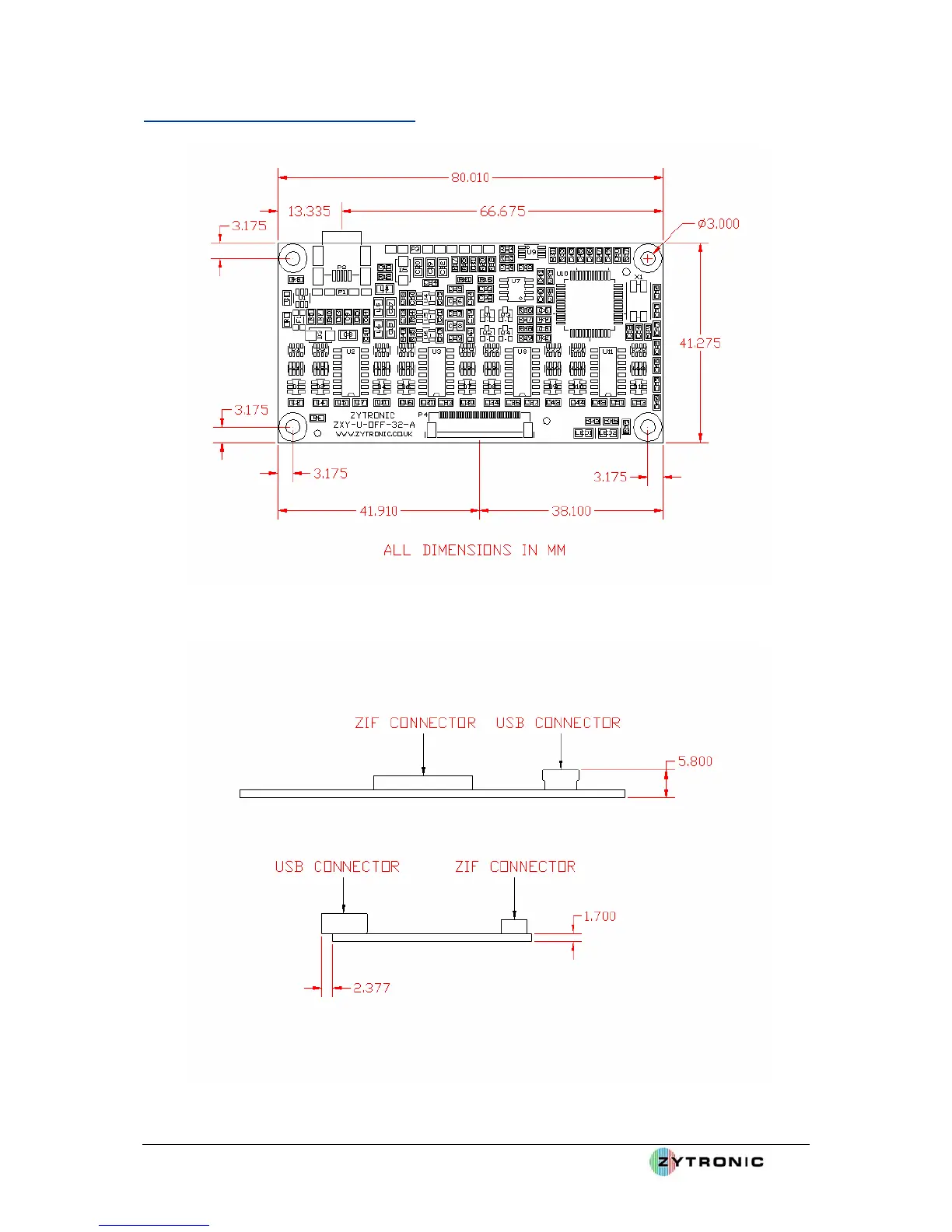

Figure 40: USB Controller Top Profile
Figure 41: USB Controller Side Profiles
