1320 Electronics LLC ALDL - Specifications

1320 Electronics LLC ALDL Bluetooth Adapter
User’s Guide

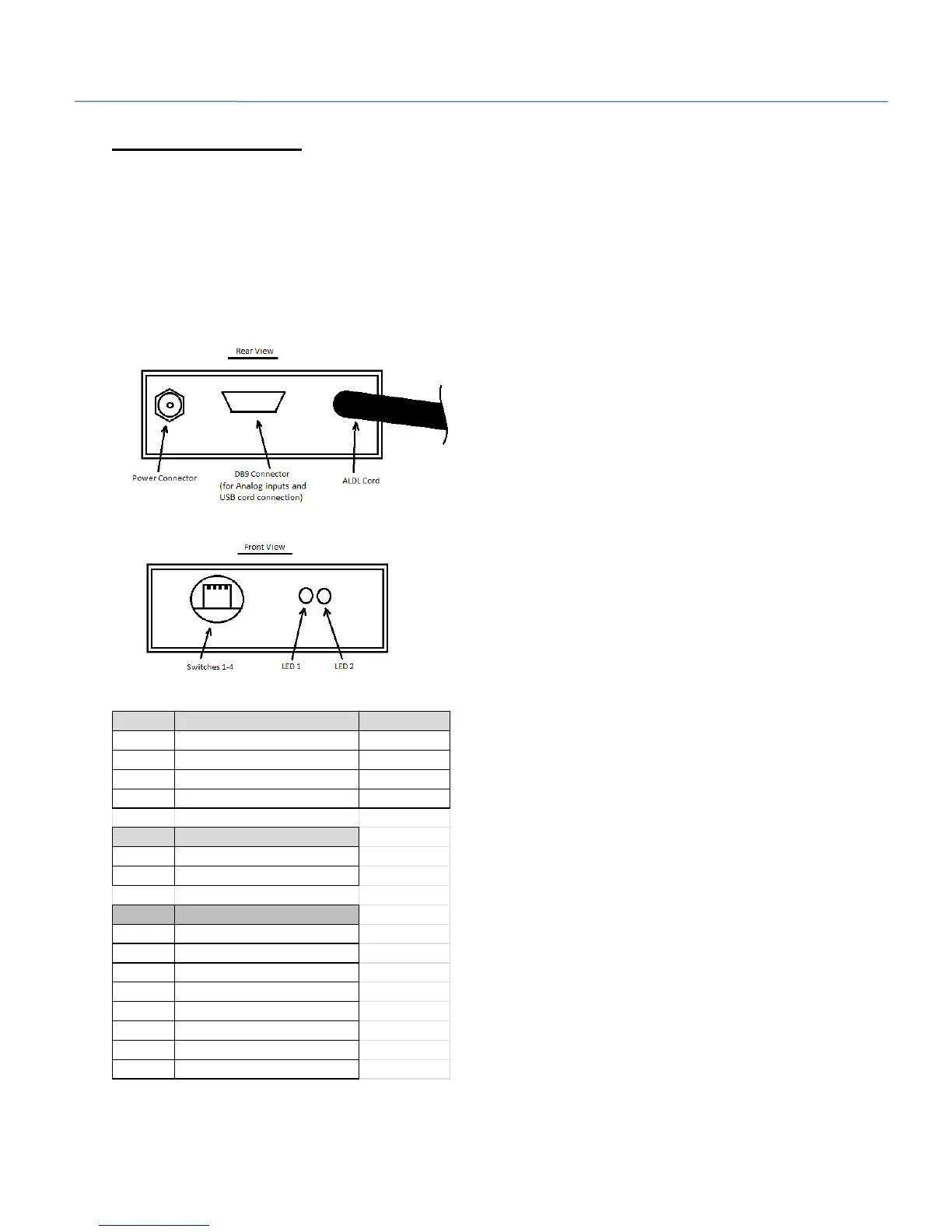

Specifications
Input Voltage: 10v min-15v max
Input Current: 100mA max
ALDL Baud Rate: 160 or 8192; switch selectable
Bluetooth Modem Baud Rate: 9600
Analog Channels: 4, 8 bit resolution
Channel 1-4 Limits: 0-12v max; non-isolated; vehicle ground referenced
Switch On Off
S1 10K Diag Mode Open
S2 8192 Baud 160 Baud
S3 Not Used Not Used
S4 Enhanced Mode, Analog Data Regular Mode
LED Indication
LED1 ALDL Data Communications
LED2 Power
DB9 Pin Nomenclature
1 Analog Channel 1
2 Analog Channel 2
3 Analog Channel 3
4 Analog Channel 4
6 Ground
7 USB Data
8 USB Data
9 USB +5V
