Control Panel Features
ALARM SOUNDER
AND SPEAKER
COLOR DISPLAY
WITH TOUCH SCREEN
MICROPHONE
EMERGENCY
BUTTON / INDICATOR
Lights WHITE when enabled for
emergency alarm
Flashes WHITE during
emergency alarm
For voice communication
with the Central Station
Sounds all system local alarms,
voice prompts, system sounds, and
audio for
2-way voice communications
with the Central Station
HOME
BUTTON / INDICATOR
Shows all system information, status,
programming, and functions as the
keypad
The display also cycles between
clock/calendar and weather
(press to manually change)
Lights GREEN when ALL sensors are closed (ready to arm)
Not li
t when ANY sensor is open (not ready to arm)
Lights RED while system is armed
Blinks RED during the Entry Delay
Blinks RED during an alarm
Blinks RED after an alarm while system is still
armed
Sensor Status
Arming Status
Alarm Memory
Power Outage
Indicator flashes during power outages (system on battery backup)
Flashes GREEN when ALL sensors are closed (ready to arm)
Flashes ORANGE when ANY sensor is open (not ready to arm)
Flashes RED while system is armed
HOME
BUTTON / INDICATOR
"THIRD HAND"
HANGER STRAP
Hooks onto mounting plate during installation
to hold the Control Panel while wiring
TELEPHONE LINE
MONITOR TERMINALS
Terminals for connecting lineman's
"buttset" for monitoring the telephone line
MAIN RECEIVER MODULE
345 MHz receiver for wireless sensors
Optional Model XCVR2 345 / 900 MHz
transceiver for touch screen keypads
(XCVR2 is not for UL985 installations)
OPTIONAL GSM RECEIVER MODULE
Model 2GIG-GSMx GSM Module for over-the-air
communication with the Alarm.com
Central Station
BACKUP BATTERY PACK
7.2 Volt Ni-mh battery pack is included
with the Control Panel, replacement
part number 2GIG-BATT1
TELEPHONE JACK
For RJ45 connection to installation's
RJ31X telephone jack, incoming and
outgoing lines for full line seizure
GSM ANTENNA (HIDDEN)
Internal Model 2GIG-ANT1 GSM antenna
mounts in the side of the Control Panel case
TERMINAL BLOCK
Connections for power, solid state output
bell, and hardwire loops
For UL985 installations, use the
Model 2GIG-BATT1X battery pack

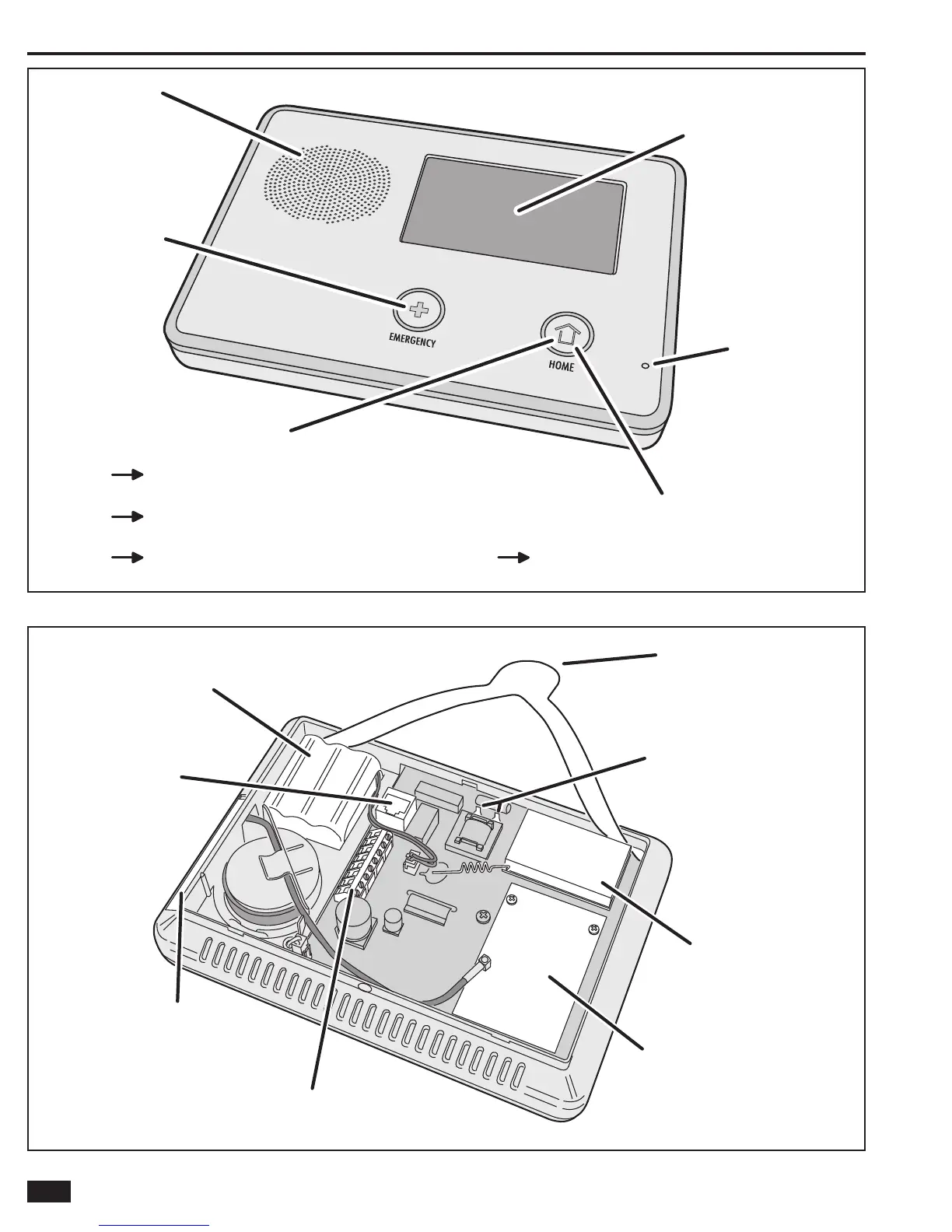

Figure 4. Control Panel External Features
Figure 5. Control Panel Internal Features
