2N IP Solo - Main Unit Connectors; Connector Legend

Installation manual 2N® IP Solo
41 / 74

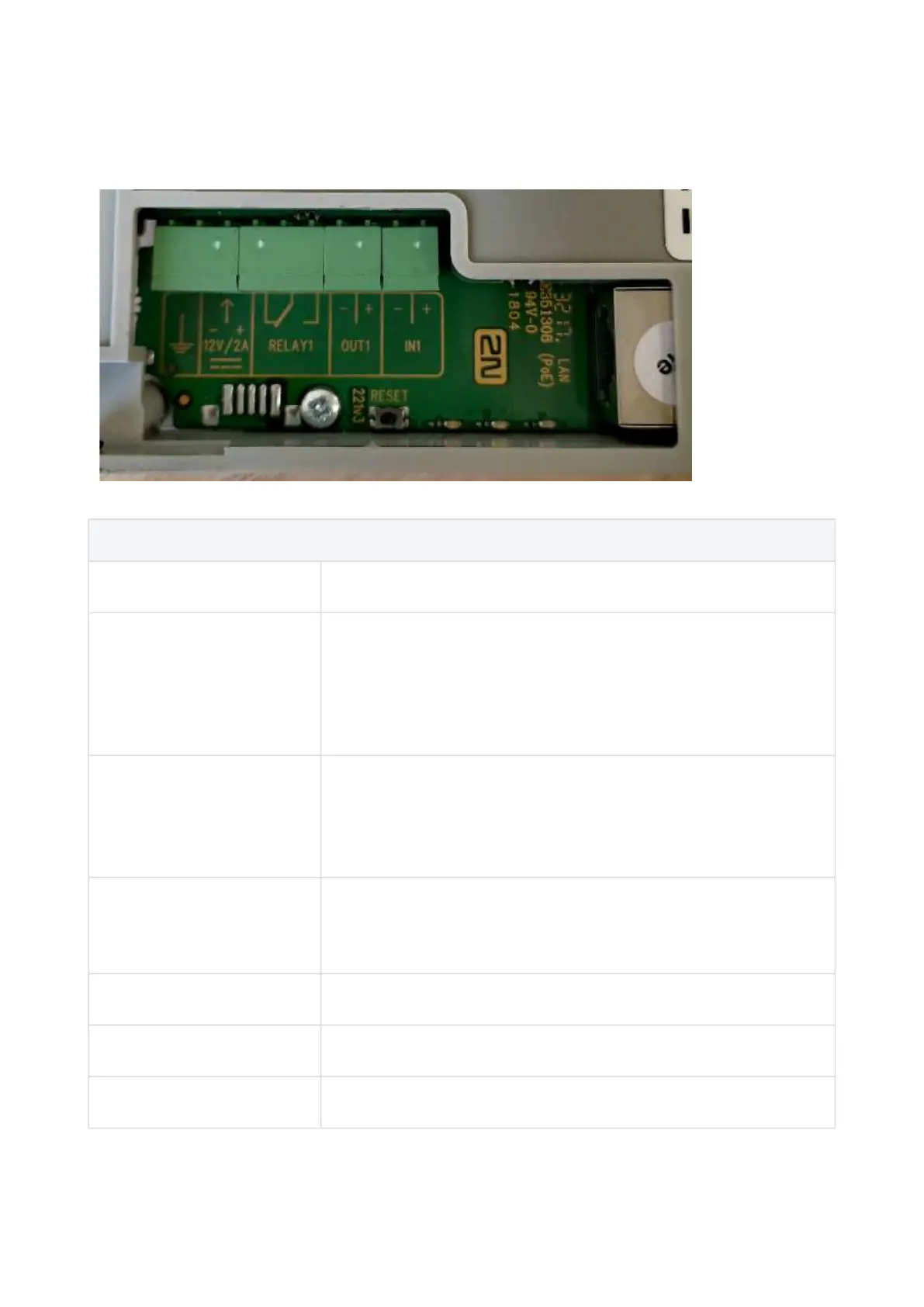

Main Unit Connector Configuration
Legend
LAN (PoE) LAN (PoE according to 802.1af) connector
IN1 IN1 terminals for input in passive/ active mode (−30 V to +30 V
DC)
 OFF = open OR U
IN
> 1.5 V
 ON = closed contact OR U
IN
< 1.5 V
OUT1
OUT1 terminals of active input for2N
®
Security Relayor
electric lock connection8 up to 12 V DCdepending on power
supply (PoE: 10 V; adaptor: power supply voltage minus 2 V),
max. 600 mA
RELAY1 RELAY1 terminals with accessible 30 V / 1 A AC/DC NO/NC
contact. Used for connection of non-critical devices only (lights,
e.g.).
12V/2A External 12 V / 2 A DC supply terminals
GND Grounding terminal
RESET RESET / FACTORY RESET button
