2N IP Style User Manual

2N TELEKOMUNIKACE a.s., www.2n.cz 12/105

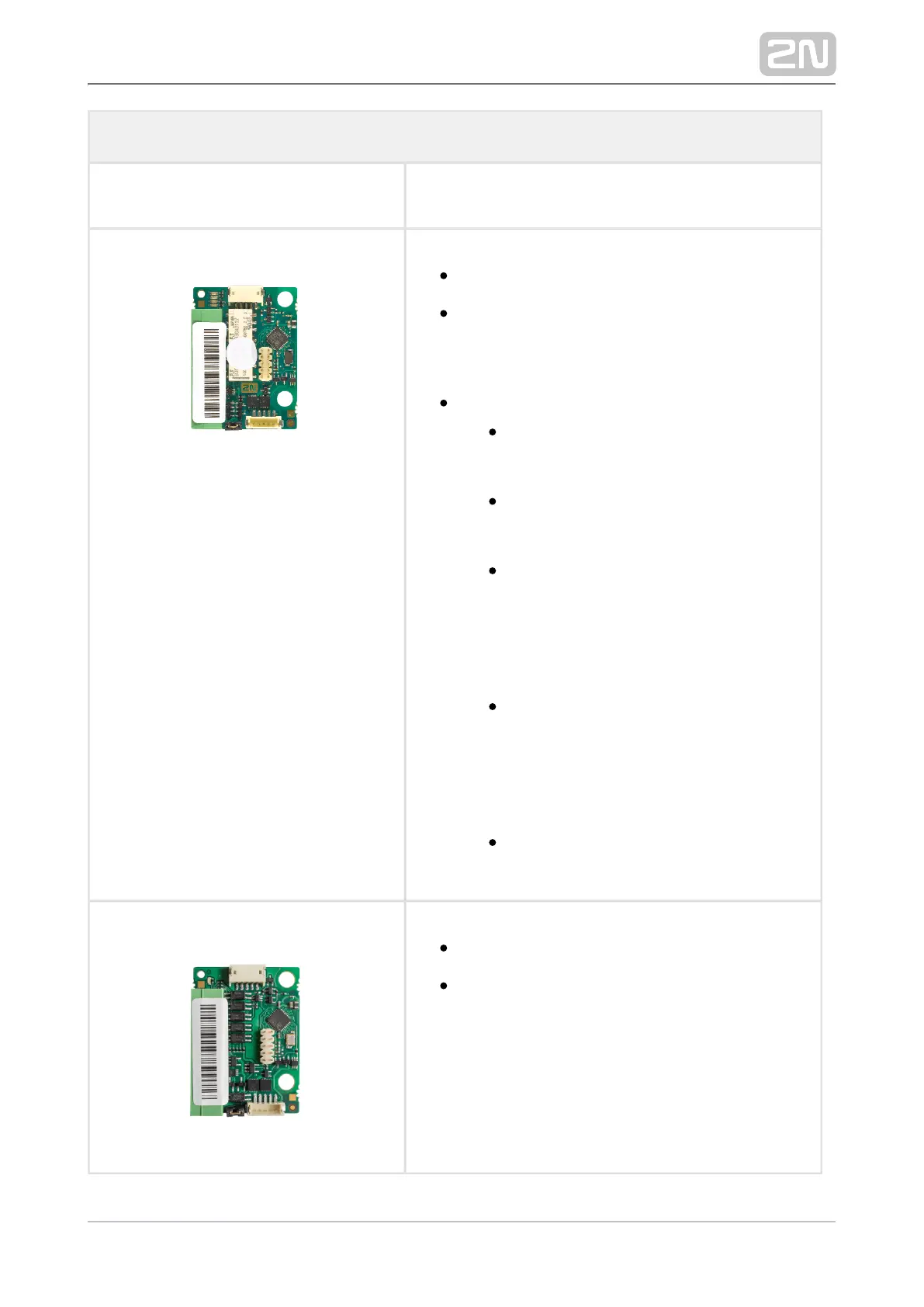

Extending Modules
Part No. 9155034
2N IP
®
Verso – I/O
The module provides logical inputs and
outputs for integration of sensors or other
devices. The module is installed under another
module, i.e. needs no separate position.
Inputs and outputs
RELAY1 – RELAY1 terminals with
accessible 30 V / 1 A AC/DC NO/NC
contact
RELAY2 – RELAY2 terminals with
accessible 30 V / 1 A AC/DC NO/NC
contact
IN1 – IN1 terminals for input used in
passive/active mode ( 30 V to +30 V −
DC)
OFF = open contact or U > 1.5 V
IN
ON = closed contact or U < 1.5 V
IN
IN2 – IN2 terminals for input used in
passive/active mode ( 30 V to +30 V −
DC)
OFF = open contact or U > 1.5 V
IN
ON = closed contact or U < 1.5 V
IN
TAMPER – Input for tamper switch
connection, 9155038
Part No. 9155037
2N IP
®
Verso – Wiegand
The module helps you interconnect your
system with other systems via the Wiegand
interface. The module is installed under another
module, i.e. needs no separate position.

2N IP Style Specifications

General

Tamper Switch	Yes
Power Supply	12V DC
Ingress Protection	IP65
Inputs	2
Operating Voltage	12V DC
Speaker Impedance	8 Ohm
