2N TELEKOMUNIKACE a.s., www.2n.cz 74/105
Technical Parameters of Wiegand Input
Current 5 mA
Input resistance 680 Ohm
Pulse length 50 μs
Inter-pulse interval approx. 2 ms

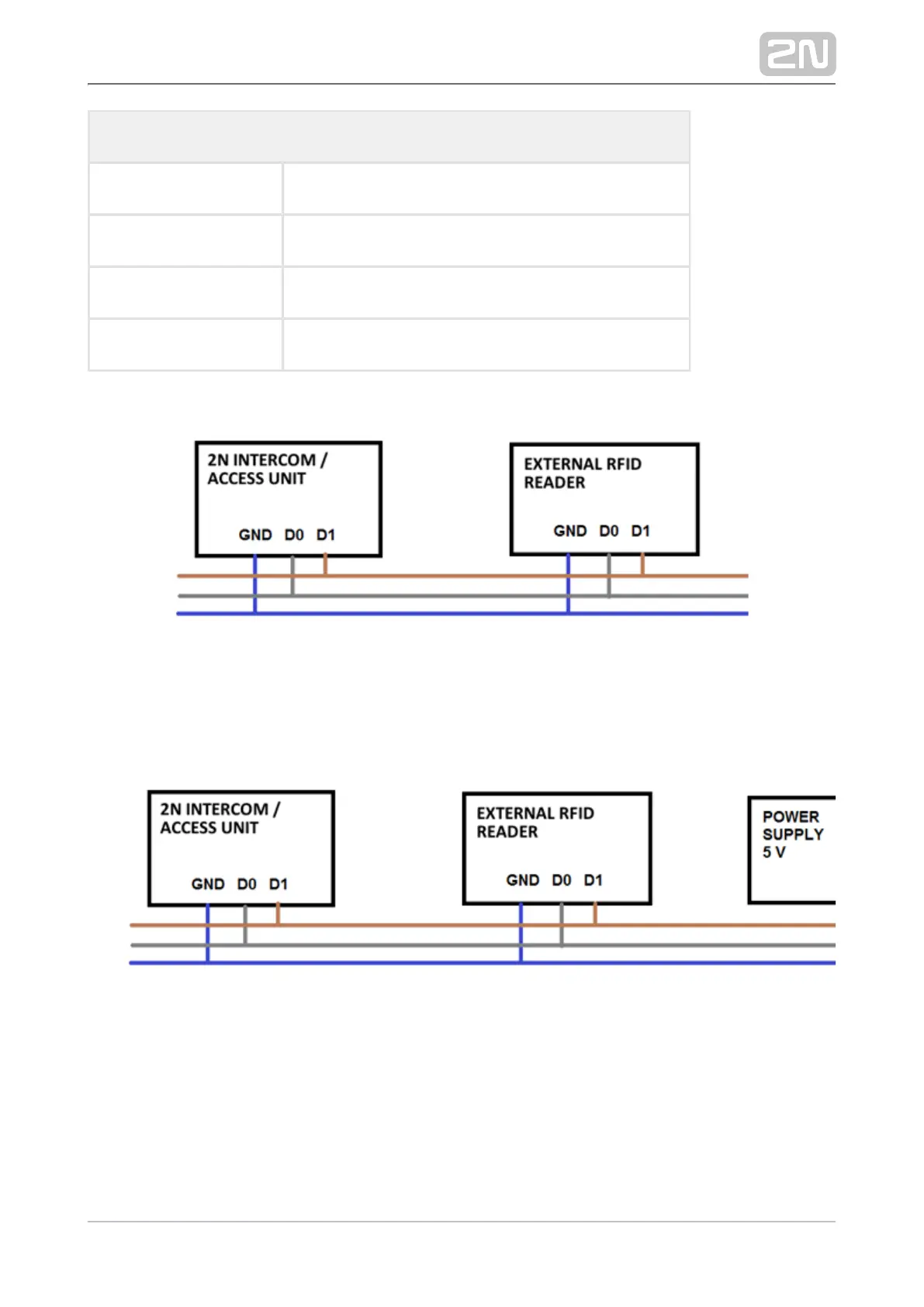

Recommended reader - bus driver wiring diagram
Recommended reader wiring diagram with OC output
