Performing Spot Checks 23

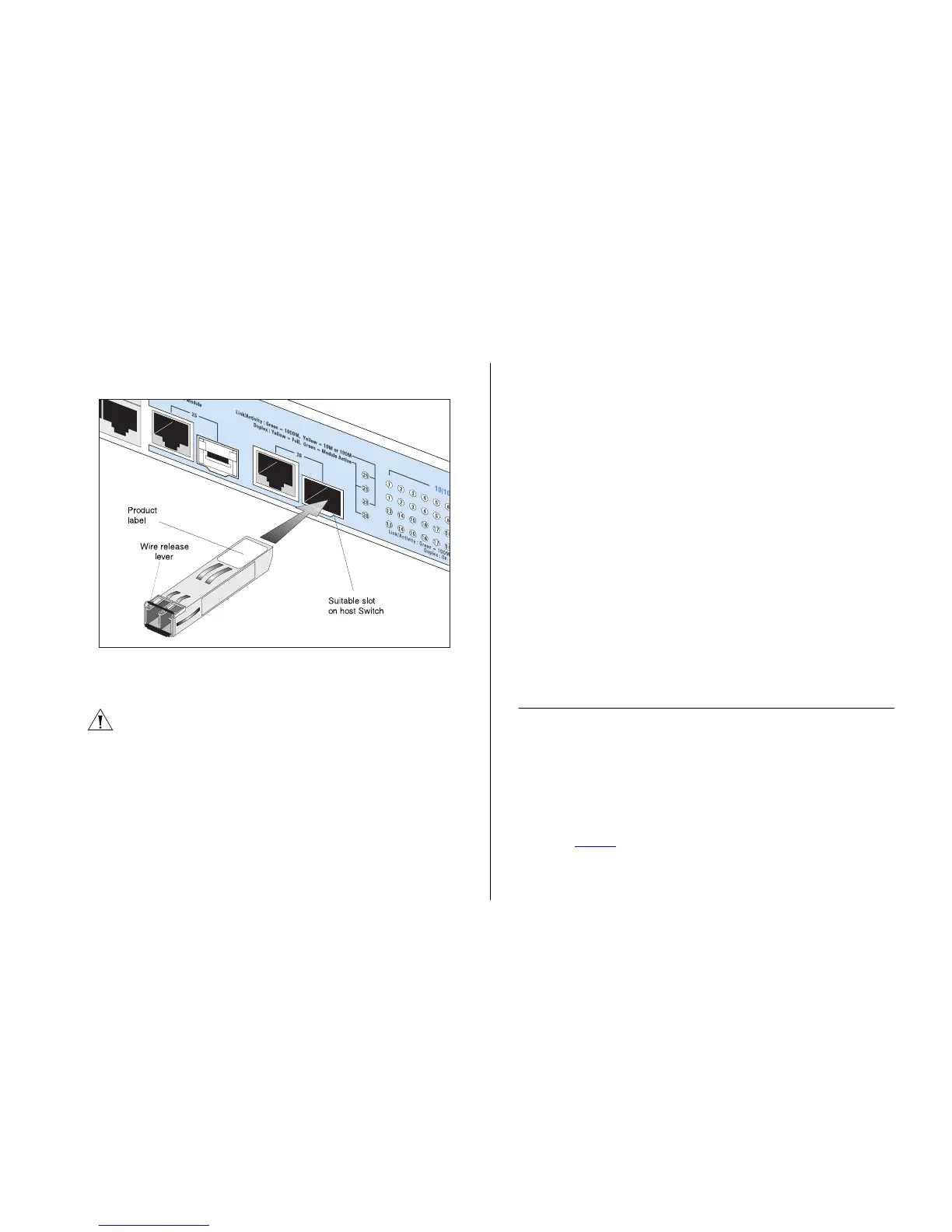

Figure 5 Inserting an SFP Transceiver
2 Gently slide the transceiver into the SFP slot until it
clicks into place.
CAUTION: SFP transceivers are keyed and can be
properly inserted only one way. If the transceiver does
not click when you insert it, remove it, turn it over, and
reinsert it.
3 Remove the plastic protective cover, if fitted.
4 Connect the fiber cable.
5 Attach a male duplex LC connector on the network
cable into the duplex LC connector on the transceiver.
6 Connect the other end of the cable to a device fitted
with an appropriate Gigabit Ethernet connection.
7 Check the Module Active LEDs on the front of the
Switch to ensure that the SFP transceiver is operating
correctly.
Removing an SFP Transceiver
Removing an SFP transceiver does not require powering
off the Switch.
To remove an SFP transceiver:
1 Disconnect the cable from the transceiver.
2 Move the wire release lever downwards until it is
pointing toward you.
3 Pull the wire release lever toward you to release the
catch mechanism.
The SFP transceiver should slide out easily.
Performing Spot Checks
At frequent intervals, you should visually check the
Switch. Regular checks can give you an early warning of
a possible failure; any problems can then be attended to
when there will be least effect on users.
3Com recommends periodically checking the items listed
in Tabl e 9.
