Pannoramic 1000 1.2 – User’s Guide 1.1.4 Main Parts of the Device

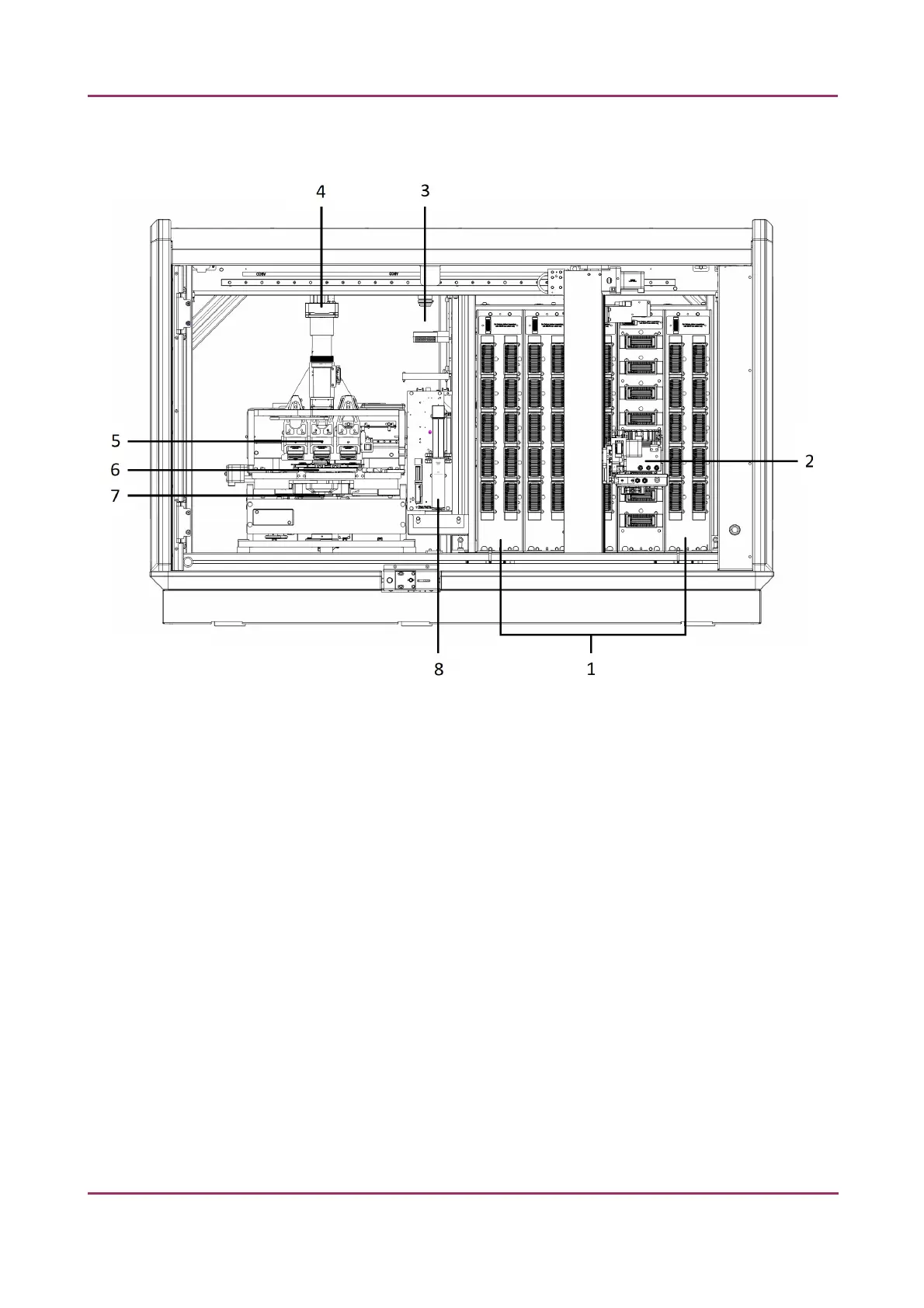

The below image shows the main inner components of the base unit.
Figure 3 – Main inner components of the base unit
1. Magazine compartment
2. Slide loader/grabber
3. Preview unit
4. Camera
5. Objectives
6. Slide stage
7. Condenser
8. Pipetting unit
