Pannoramic 1000 1.2 – User’s Guide 1.1.4 Main Parts of the Device
1.1.4 Main Parts of the Device
The following figure shows the main outer parts of the base unit.

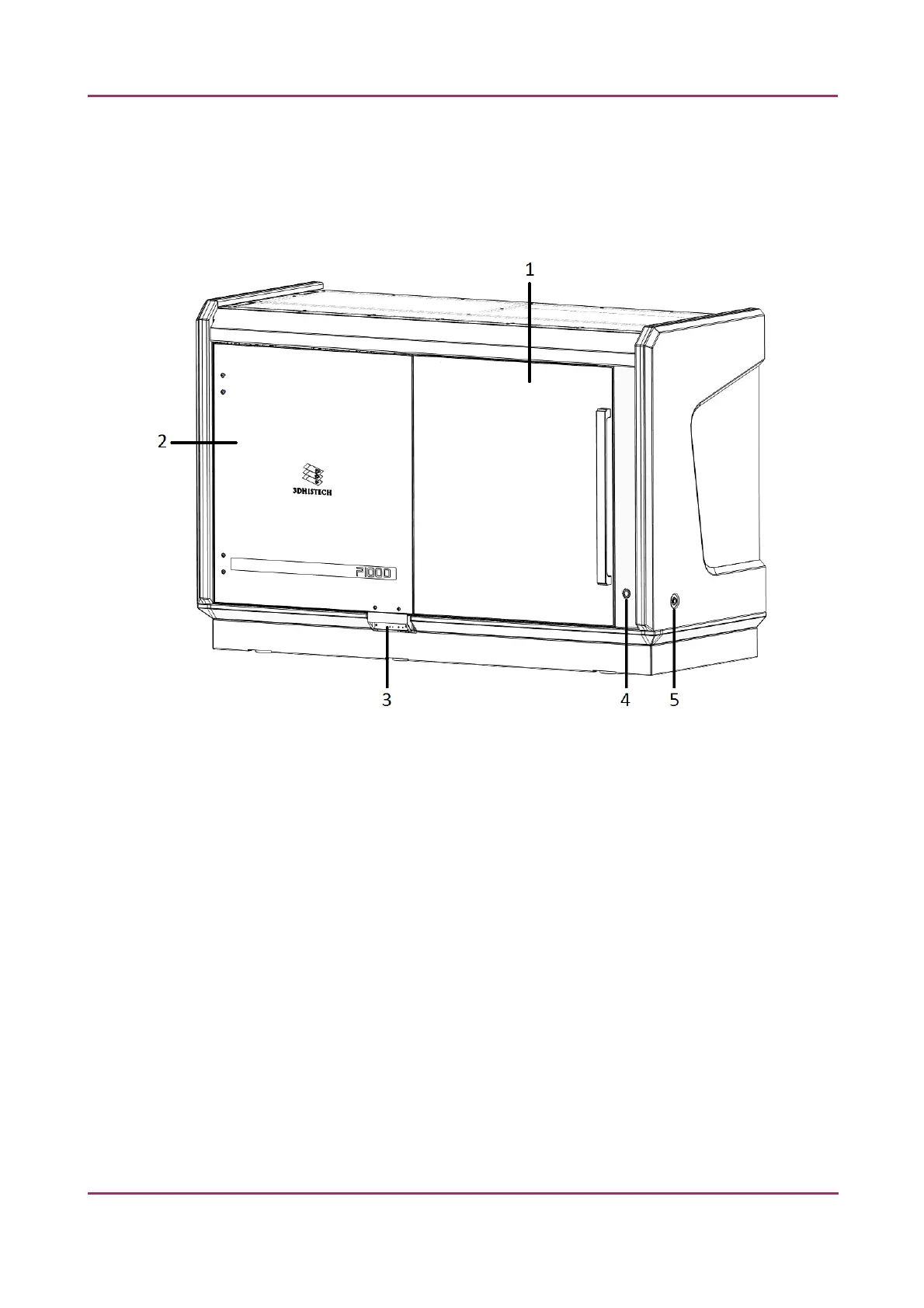

Figure 2 – Main outer parts of the base unit
1. Sliding door of slide compartment
2. Service door
3. Service door opener
4. Door open request button
5. Power ON/OFF button
March 19, 2019 – Rev. 2 3DHISTECH Ltd. 16(78)
