Pannoramic 1000 1.2 - User’s Guide 8 Packaging instructions for Pannoramic
1000

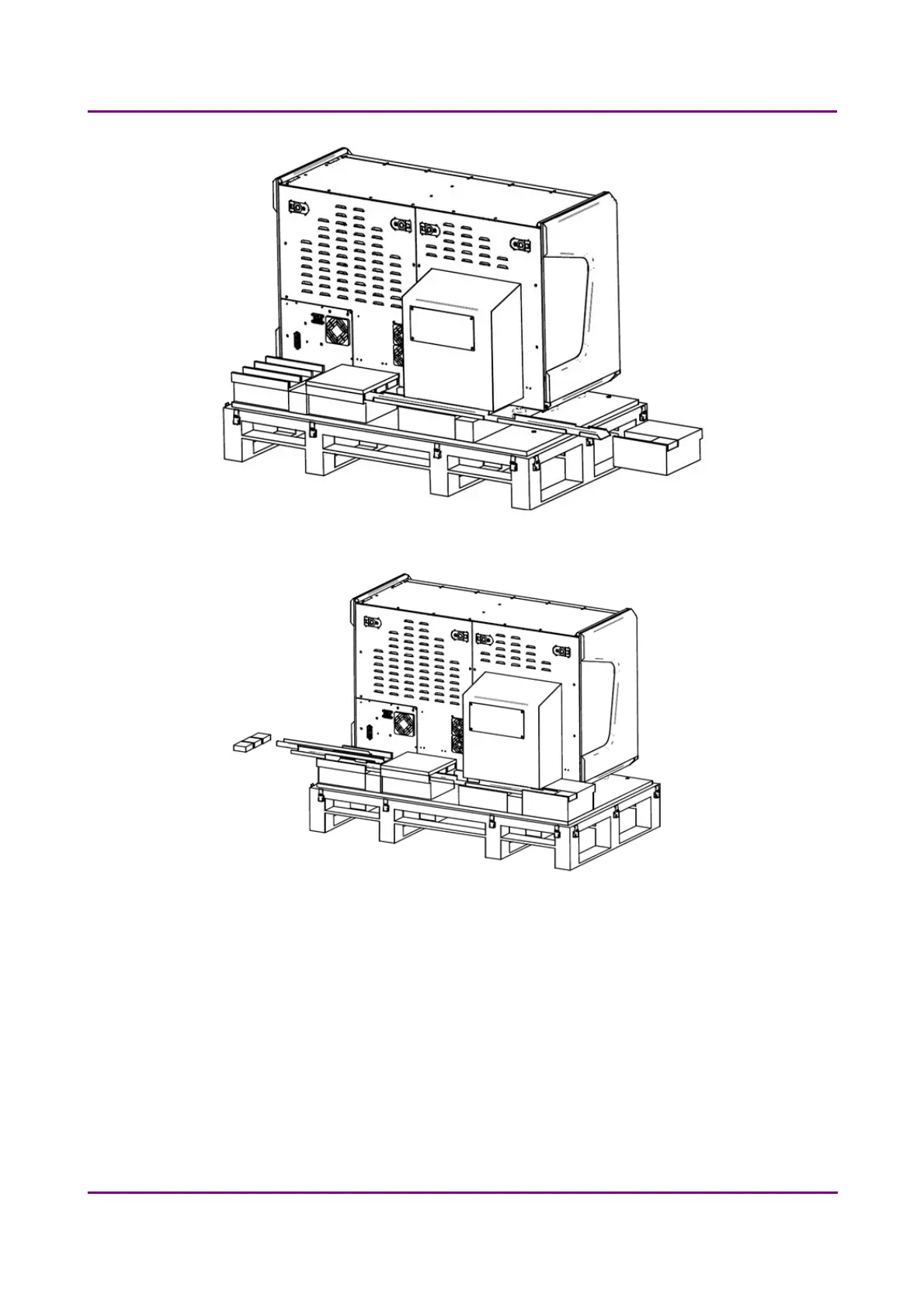

Figure 49 – BOX 1
Figure 50 – BOX 1
Please take Side B to its place on the right. The foams should fill the ~50 mm gap. Use the latches to
fix the side wood panel. Secure the machine with straps to the fixing points (Figure 51) on the base.
Use edge protectors under the straps on the machine.
