Pannoramic 1000 1.2 - User’s Guide 8 Packaging instructions for Pannoramic
1000
4. Side B
5. Top of BOX 1
6. Foam for fixing the scanner - G
7. Foam for fixing the scanner – C
8. Foam for fixing the scanner – E
9. Foam for fixing the scanner – F
10. Latch - 1
11. Latch – 2
12. Foam for fixing the scanner – B
13. Foam for fixing the scanner – H
14. Foam for fixing the scanner – I
15. Foam for fixing the scanner – J
16. Foam for fixing the transport plates
17. Rocker panel – right
18. Rocker panel – front
19. Rocker panel – left
20. Transport plate
21. P1000

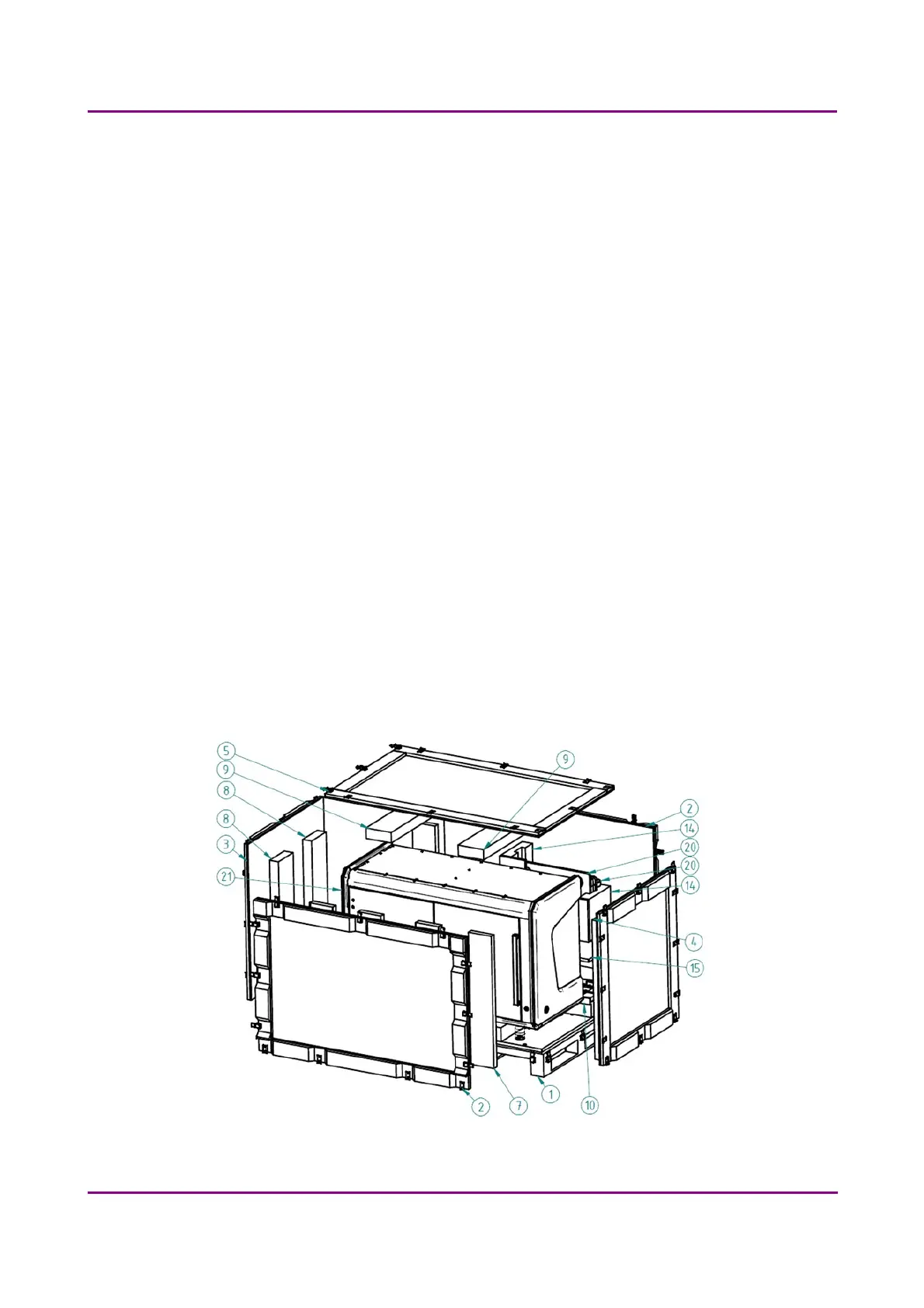

Figure 56 – Construction of the wooden box
