Operation
Section 1
Page 17
Ohms
RED to RING
BLACK to TIP
GREEN to GROUNDED SHIELD

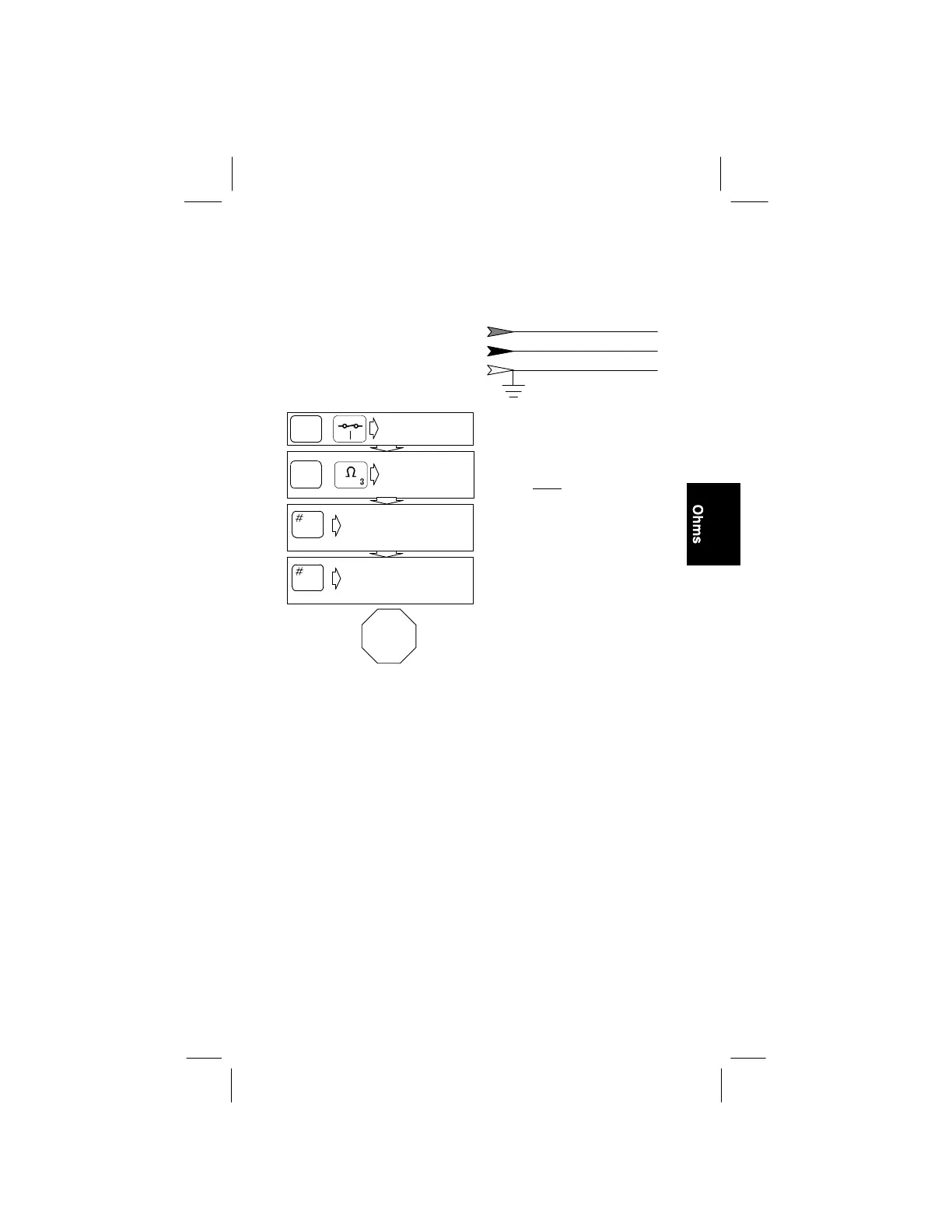

Hookup:
R
B
G
Turn unit on.
Measure, show ring-
to-ground resistance
Measure, show tip-
to-ground resistance
You can press the ohms to
distance key to convert the
resistance measurement to
distance, or press any other test
key to exit this test program.
Disregard this step
if the unit is on.
End
of
Test
Measure, show
tip-to-ring
resistance
On
Reset
Ohms
The letters “CO” on the
display indicate battery on
the line, while
loop
resistances is being
measured.
or
or
To Next Page
