Care & Maintenance
Section 4
Page 83Page 83
RBGY
4. CHECK RESISTANCE FAULT LOCATE
PERFORMANCE

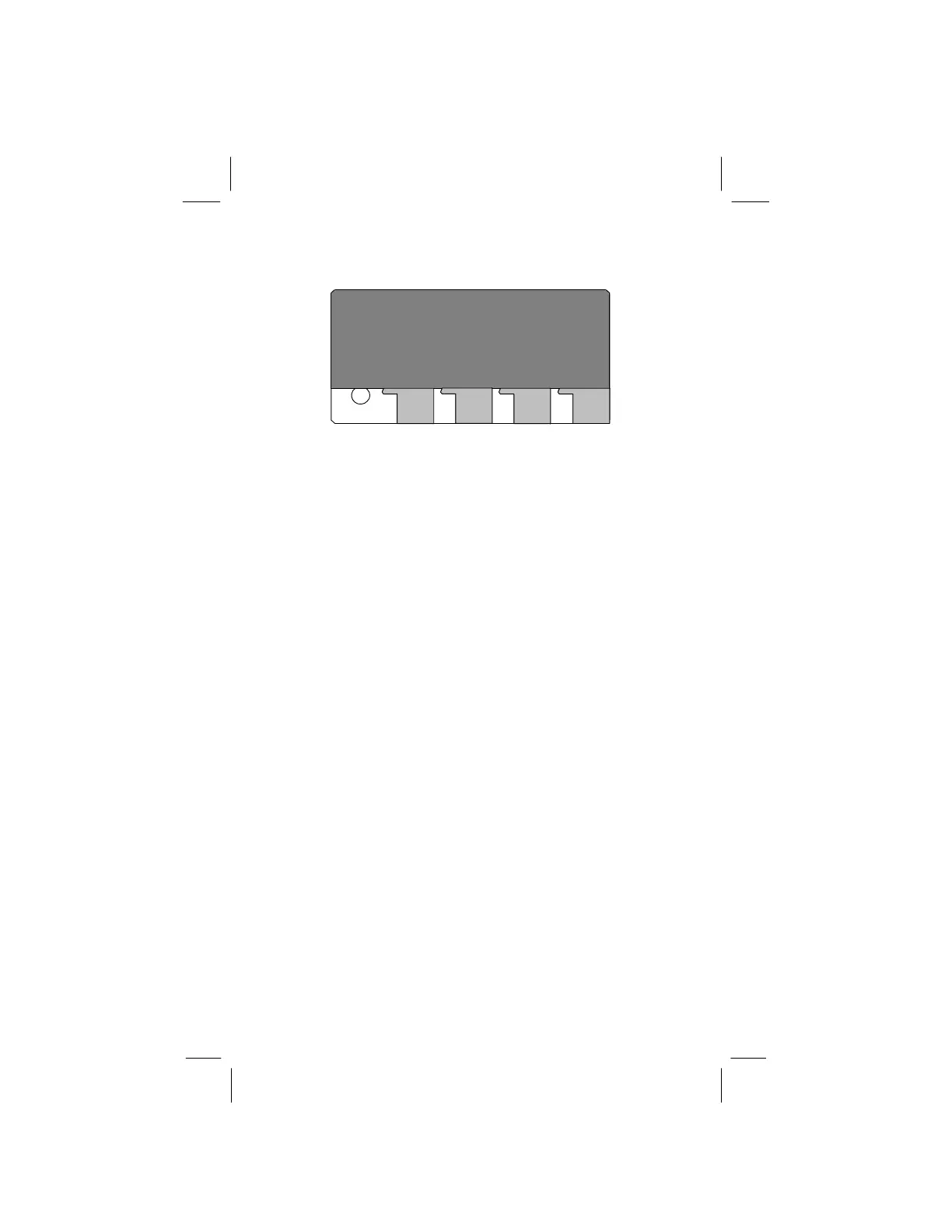

4.1 The Cable Self Test Circuit (above) allows you to
test the resistance fault locate function at any time.
This test is particularly important when potentially
damaging physical conditions such as shock or prolonged
submersion could affect performance.
Note: The test set circuits are more accurate than the Cable Self
Test Circuit; therefore, the limits in the tables following the
example flowchart are wider than in the Specification section.
4.2 Connect the test leads to the circuit terminals: red
to R, black to B, yellow to Y, and green to G.
Press the RES FAULT LOCATE key. Use the separate
good pair hookup and procedure in the following example.
Compare the information in the tables that follow to the
results displayed by the unit. If the results fall within the
ranges listed, your unit works correctly.
