3M Dynatel 955 User Manual

Operation
Section 1
Page 32

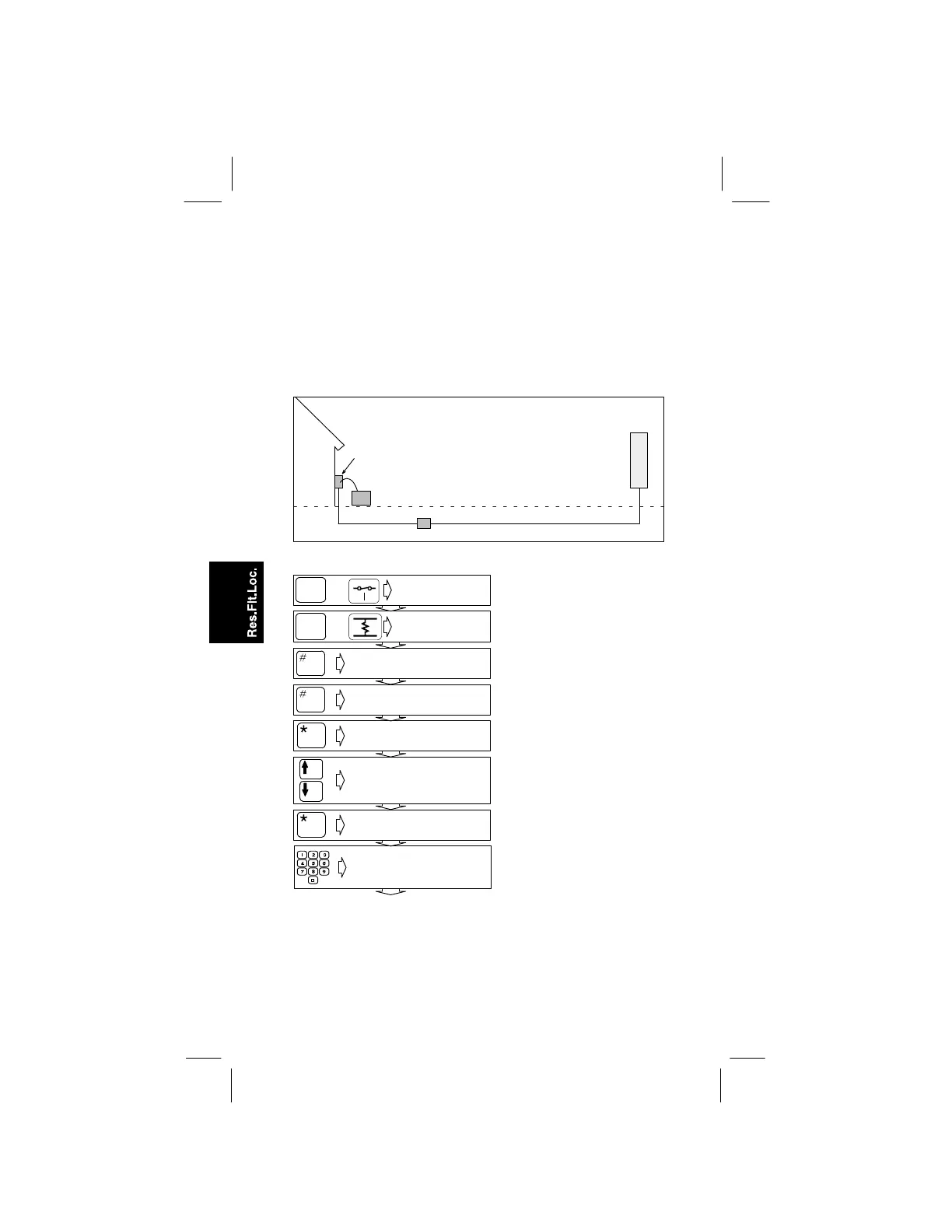

RFL Example 4
Splice Locate – Multiple Gauge
1. Set up the unit for the locate:
Test Set
DTS known 2500 ft/762 m
Temp. 70 ° F or 21 ° C
2 sections
House
Protector
Strap
Turn unit on.
Stored setups ––
Change setups
DTS known
Display units in feet or
meters
Gauge select menu
Use arrow keys to
select multiple gauge
Number of sections
in cable
Use keypad to enter
number of sections: 2
For splice locate, you must
use only two sections.
continued on next page...
Res
Fault
Locate
On
Reset
OR
OR
