13

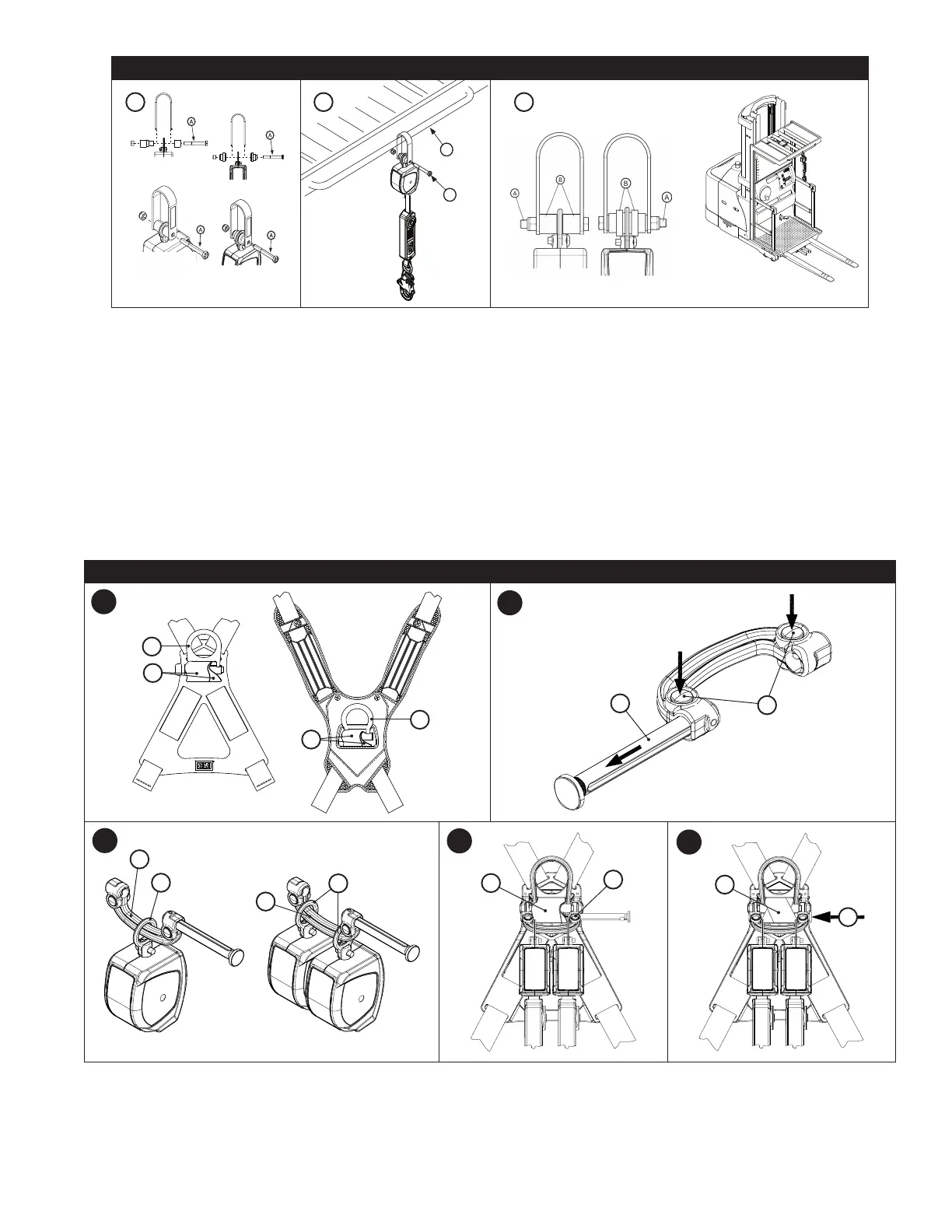

Figure 7 - Cab Mounting
B. STANDARD HARNESS WEB INTERFACE: See Figure 8 for reference. To mount the SRD on a Full Body Harness
with SRD Harness Interface:
1. Loosen the harness webbing. Pull out on the Web Straps (A) where they pass through the bottom of the Dorsal
D-ring (B) until there is enough space to slide the harness web interface through.
2. Open the harness web interface. Push down on the two Locking Buttons (C) to slide the Locking Pin (D) out.
3. Position the SRD on the Harness Web Interface (E). Thread the open harness web interface through the Swivel
Eye (F) of your SRD. The SRD should hang from the backbone of the harness interface. If using a twin-SRD,
position the SRDs such that one SRD is on the right side and the other is on the left side.
4. Position the open gate of the Harness Web Interface (E) around the loosened web straps of the harness.
5. Close the harness web interface. Push the Locking Pin (D) behind the loosened Web Straps (A), between the
straps and the back pad of the harness. Push the Locking Pin through until it locks into place. Once closed, pull
the Web Straps back through the harness to secure the harness web interface.
Figure 8 - Standard Harness Interface
B
A
B
A
C
D
F
E
F
E
E
A
D
A
Figure 6 –
C. CARABINER INTERFACE: See Figure 9 for reference. These instructions apply to Triple Action Carabiner 2000159
when used with specic Full Body Harness models. No other carabiners may be substituted in place of 2000159.
1. Loosen the harness webbing. Pull out on the Web Straps (A) where they pass through the bottom of the Dorsal
D-ring (B) until there is enough space to slide the carabiner through.
2. Open the Triple Action Carabiner. With the carabiner oriented as illustrated, push the Locking Sleeve (C) to the
right, then turn clockwise to unlock the Gate (D). Push the Gate (D) down to open.
1
2
3
4
5
1 2 3
3100247
3100084
3100247 3100084
