3. Thread the rst SRD onto the carabiner. Insert the Nose (E) of the carabiner through the Swivel Eye (F) of the
SRD, then loop the SRD through to the Gate End (G) of the carabiner.
4. Position the carabiner around the web straps. Insert the Nose (E) of the carabiner behind the loosened Web
Straps (A), between the straps and the back pad of the harness. Rotate the carabiner until it surrounds the
loosened straps.
5. Thread the second SRD onto the carabiner. Slide the Swivel Eye (F) of the SRD over the Nose (E) of the
carabiner. Position the SRD along the nose end of the carabiner.
6. Close the carabiner. Release the gate and allow the carabiner to rotate back to its locked position. Once closed,
pull the the Web Straps back through the harness to secure the carabiner.

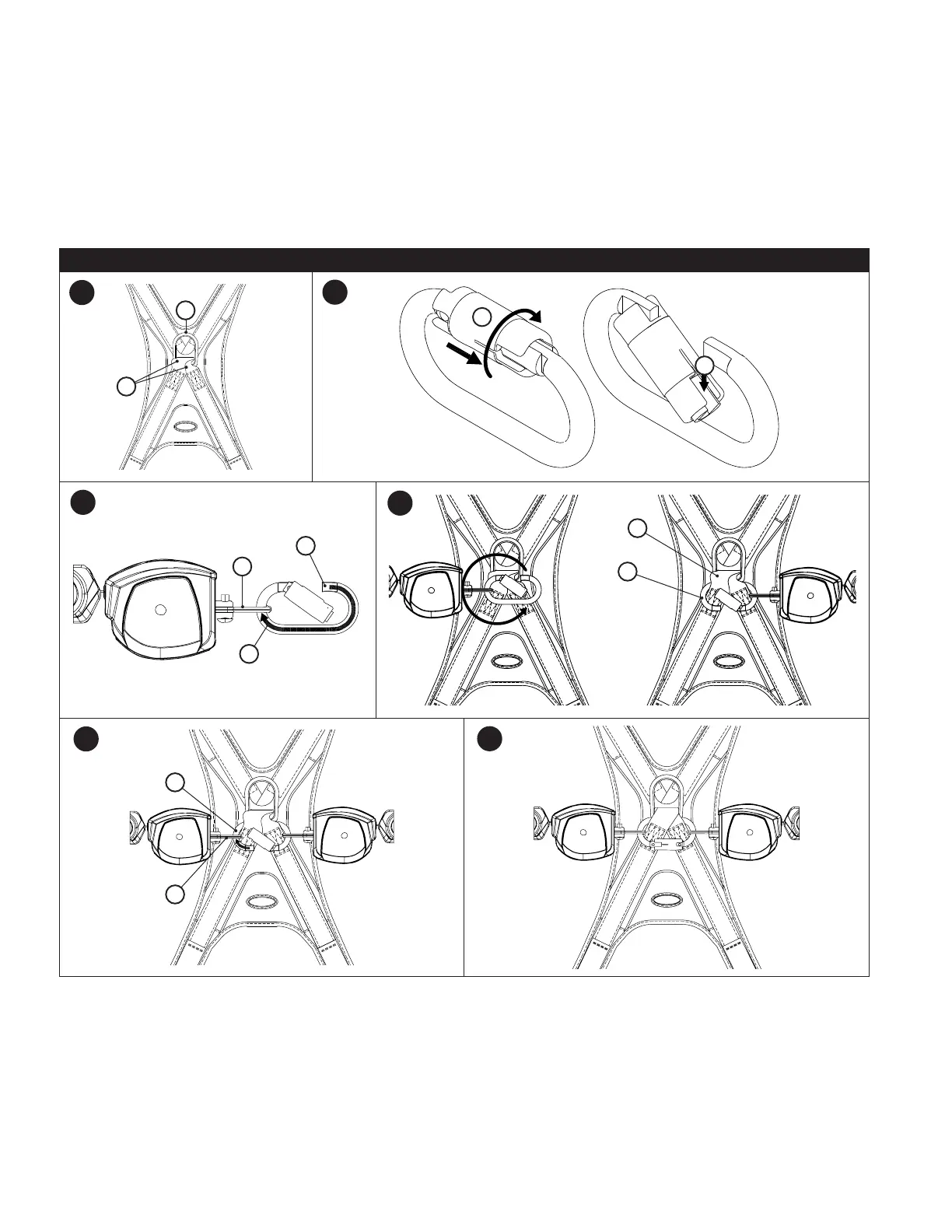

Figure 9 - Carabiner Interface
B
A
C
D
E
G
F
E
A
E
F
Figure 8
1
2
3
4
5
6
