3M NANO-LOK User Manual

15
Figure 9 –

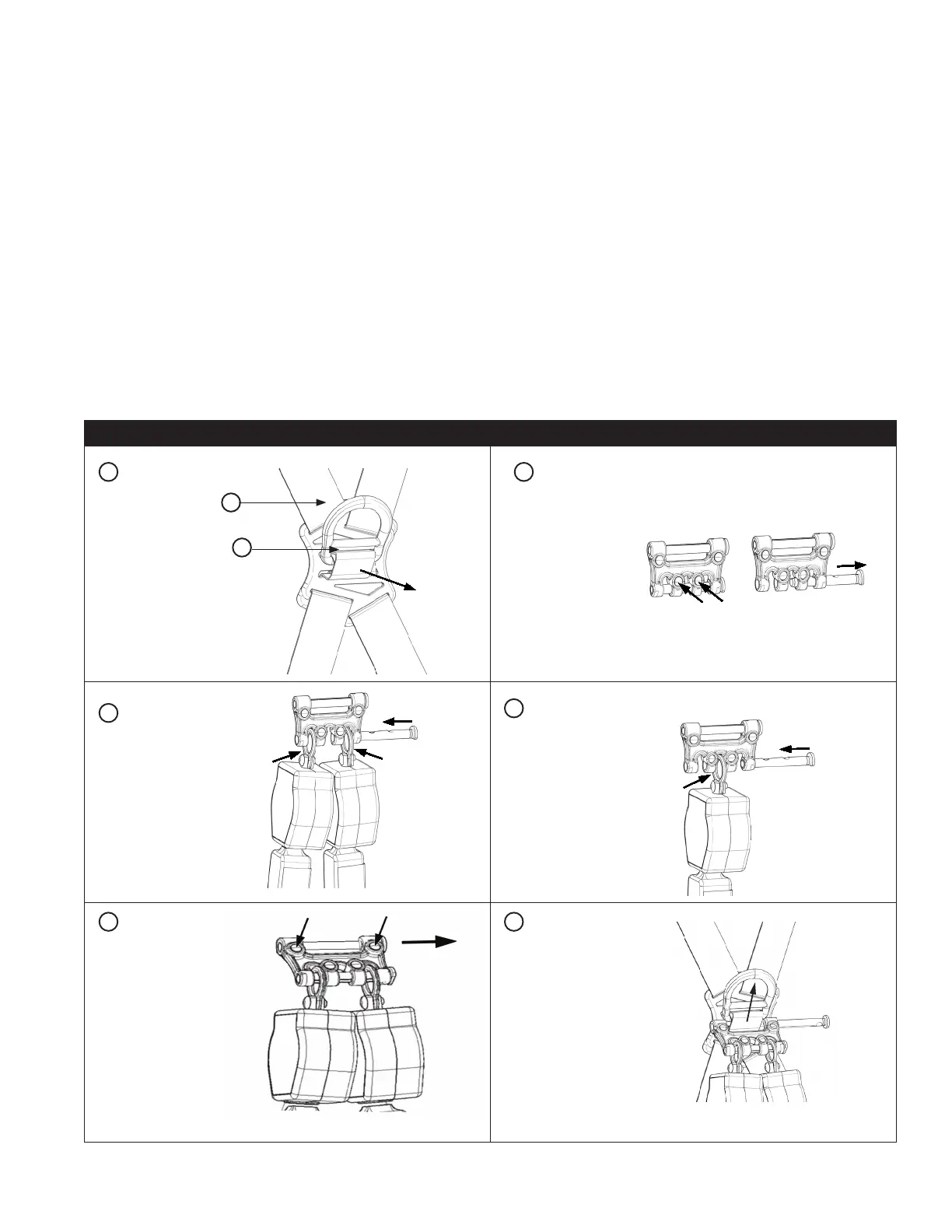

D. Twin Pin Carabiner: These instructions apply to Carabiner 3100196 when used with specic Full Body Harness
models to mount one Nano-Lok SRL, or two Nano-Lok SRLs in climbing applications where 100% tie-off is required.
See Figure 10:
1. Loosen the harness webbing. Pull out on the Web Straps (A) where they pass through the bottom of the Dorsal
D-Pull out on the Web Straps (A) where they pass through the bottom of the Dorsal D-Ring (B) until there is
sufcient space to slide the Twin Leg Interface between the Web Straps and D-Ring Pad.
2. Simultaneously depress the two button on the bottom side of the connector while sliding the pin out to the right.
Sliding this pin out creates an open space to insert the SRL swivel eye(s).
3. For twin conguration: place the swivel eye of one SRL in the open space closest to the pin and one SRL in the
open space farthest from the pin. Slide the pin back in place until you hear a click. The pin should be rmly
locked in place.
4. For single conguration: Place the swivel eye of a single SRL in the center open space. Slide the pin back in place
until you hear a click. The pin should be rmly locked in place.
5. Simultaneously depress the two buttons on the harness side of the connector while sliding the pin out. Sliding
this pin out creates on open space.
6. Pull up a small amount of slack in the webbing directly beneath the dorsal D-Ring on your harness. Place the
harness side of the connector beneath the D-Ring.
7. Slide the pin back in place ensuring that the pin remains beneath both layers of harness webbing until you hear a
click. The pin should be rmly locked in place.
Figure 10 –
Figure 10
Figure 11 – 1.
Figure 12 –
Figure 13 – 2.
Figure 14 –
Figure 15 – 3
Figure 16 –
Figure 17 – 6
4
3
1 2
65
A
B

3M NANO-LOK Specifications

General

Product Type	Self-Retracting Lifeline
Length	6 ft
Weight Capacity	310 lbs
Connector Type	Carabiner
Material	Polyester Web
Standards/Approvals	ANSI Z359.14
Width	1 inch
Snaphook Type	Steel
