Tripod Mounting
N8072 Cube Network Camera can be fixed on the wall (Fig.1) or hung from the ceiling (Fig.2).
Make sure that no steel bars or power cables exist behind the position where the product is to
be fixed. Some walls or ceilings may not be strong enough to support it. Pay attention during
installation to avoid injury that might be brought about due to falling of the product.
NOTE:
N8072 Cube Network Camera follows the standard CCTV design, so the regular bracket can
be installed.

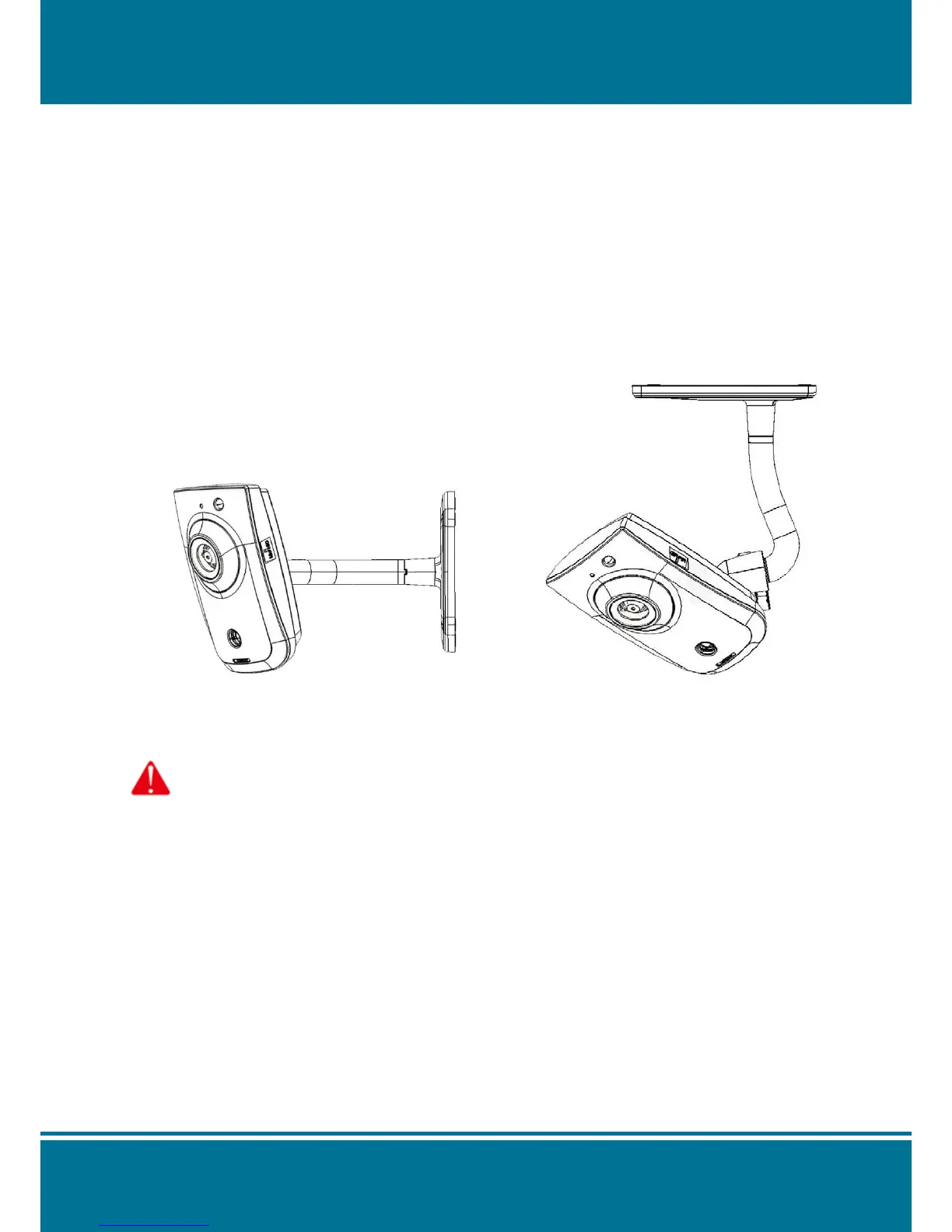

Fixed on the wall (Fig.1) Fixed on the ceiling (Fig.2)
NOTE :
You can install N8072 Cube Network Camera on the holder and hang it on the wall or ceiling.
Please do not install it in locations of poor ventilation. This will result in poor operation.
Attention: The horizontal angle is important when you hang the product from the ceiling. Excessive
inclination may bring about abnormal rotation of the camera lens.
